Record Number: Select the number of times the Switch will be polled between 20 and 200. The default
value is 200.
Show/Hide: Check whether to display Utilization.
Clear: Click to clear all statistic counters on this window.
Monitoring > Packet Size
The Web Manager allows packets received by the Switch, arranged in six groups and classed by size, to be
viewed as either a line graph or a table. Two windows are offered. To select a port to view these statistics for,
select the port by using the Port drop-down menu. You may also use the real-time graphic of the Switch at
the top of the web page by simply clicking on a port.

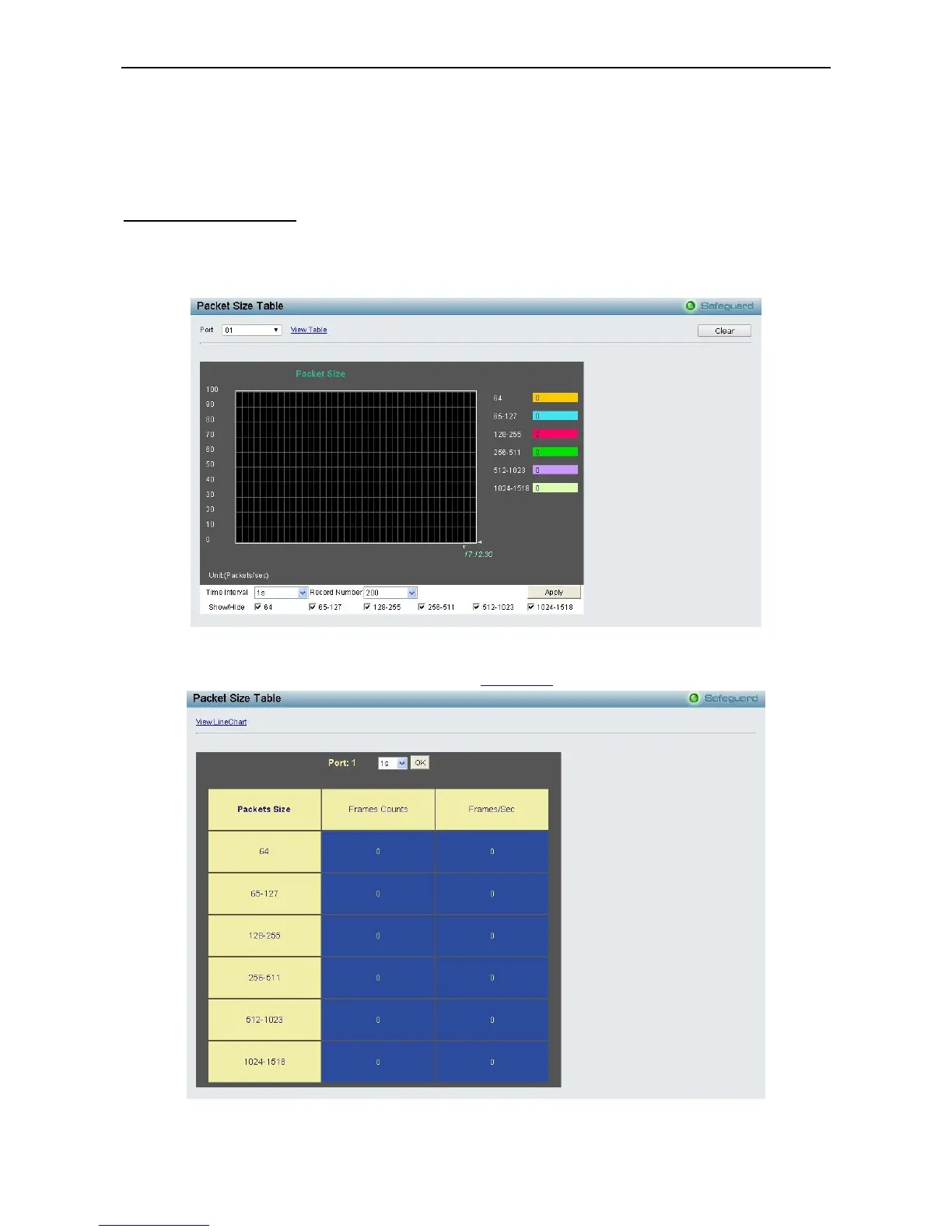

Figure 4.116 – Monitoring > Packet Size
To view the Packet Size Analysis Table, click the link View Table, which will show the following table:
Figure 4.117 – Monitoring > Packet Size Table
