Show/Hide: Check whether or not to display Bytes and Packets.
Clear: Click to clear all statistic counters on this window.
View Table: Click to display a table rather than a line graph.
View Line Chart: Click to display a line graph rather than a table.
Monitoring > Packets > UMB Cast (RX)
The UMB Cast (RX) page displays the following graph of UMB cast packets received on the Switch. To
select a port to view these statistics for, use the Port drop-down menu. You may also use the real-time
graphic of the Switch at the top of the web page by clicking on a port.

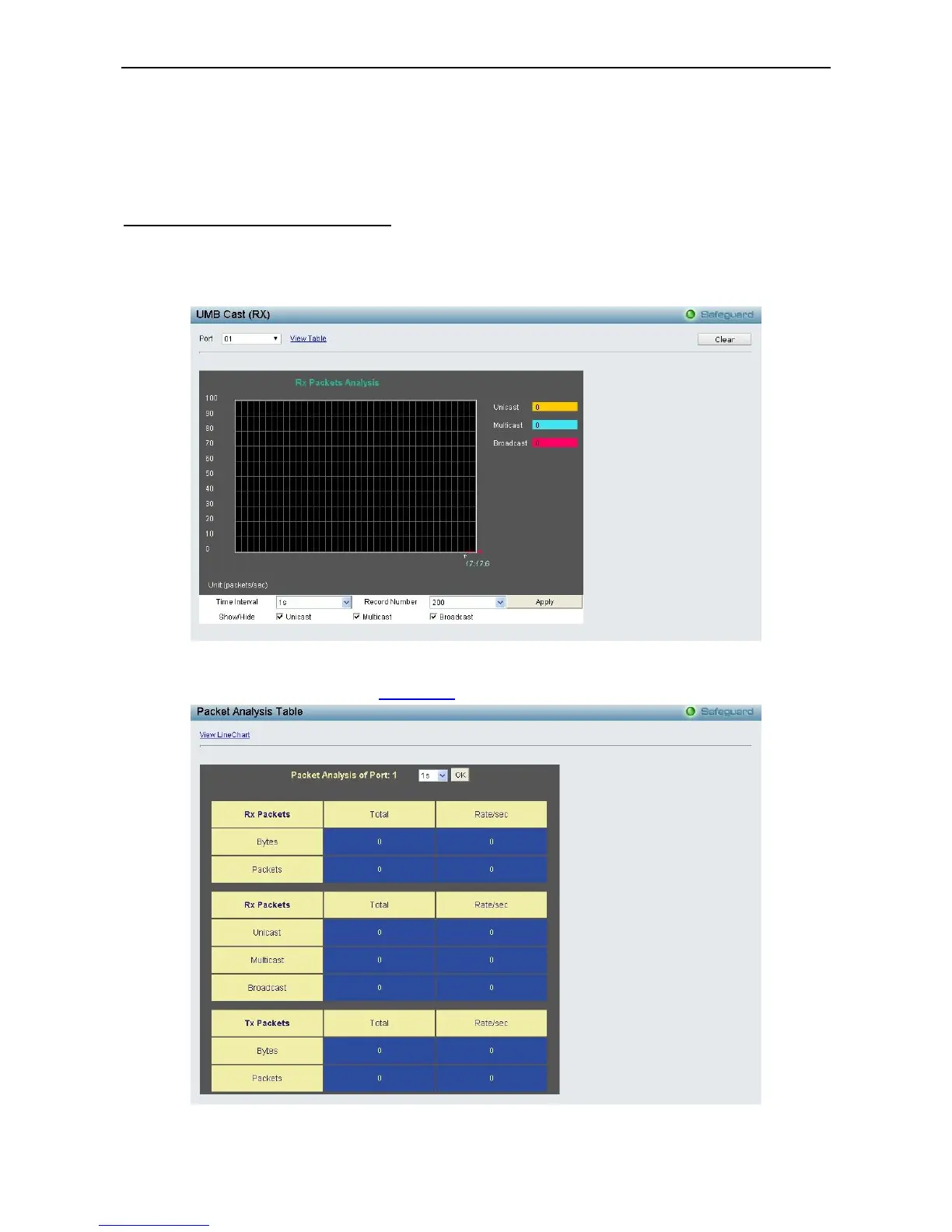

Figure 4.122 - Monitoring > Packets > UMB Cast (RX) (line graph for Unicast, Multicast and Broadcast Packets)
To view the UMB Cast Table, click the View Table link, which will show the following table:
Figure 4.123 - Monitoring > Packets > UMB Cast (RX) (table for Unicast, Multicast and Broadcast Packets)
