Figure 4.43 – System > IEEE802.3az EEE Settings
From Port / To Port: A consecutive group of ports may be configured starting with the selected port.
State: Enabled or Disabled the IEEE802.3az EEE for the specified ports. By default, all ports are enabled.
Click Apply to implement changes made.
If the connection speed drops down from 1000M to 100M, or the first link up takes longer time, please follow
below steps and check again:
1. Upgrade drivers of your Ethernet adapter or LAN controller for the host PC.
2. Disable EEE function on the switch port.
Configuration > 802.1Q VLAN
A VLAN is a group of ports that can be anywhere in the network, but communicate as though they were in
the same area.
VLANs can be easily organized to reflect department groups (such as R&D, Marketing), usage groups (such
as e-mail), or multicast groups (multimedia applications such as video conferencing), and therefore help to
simplify network management by allowing users to move devices to a new VLAN without having to change
any physical connections.

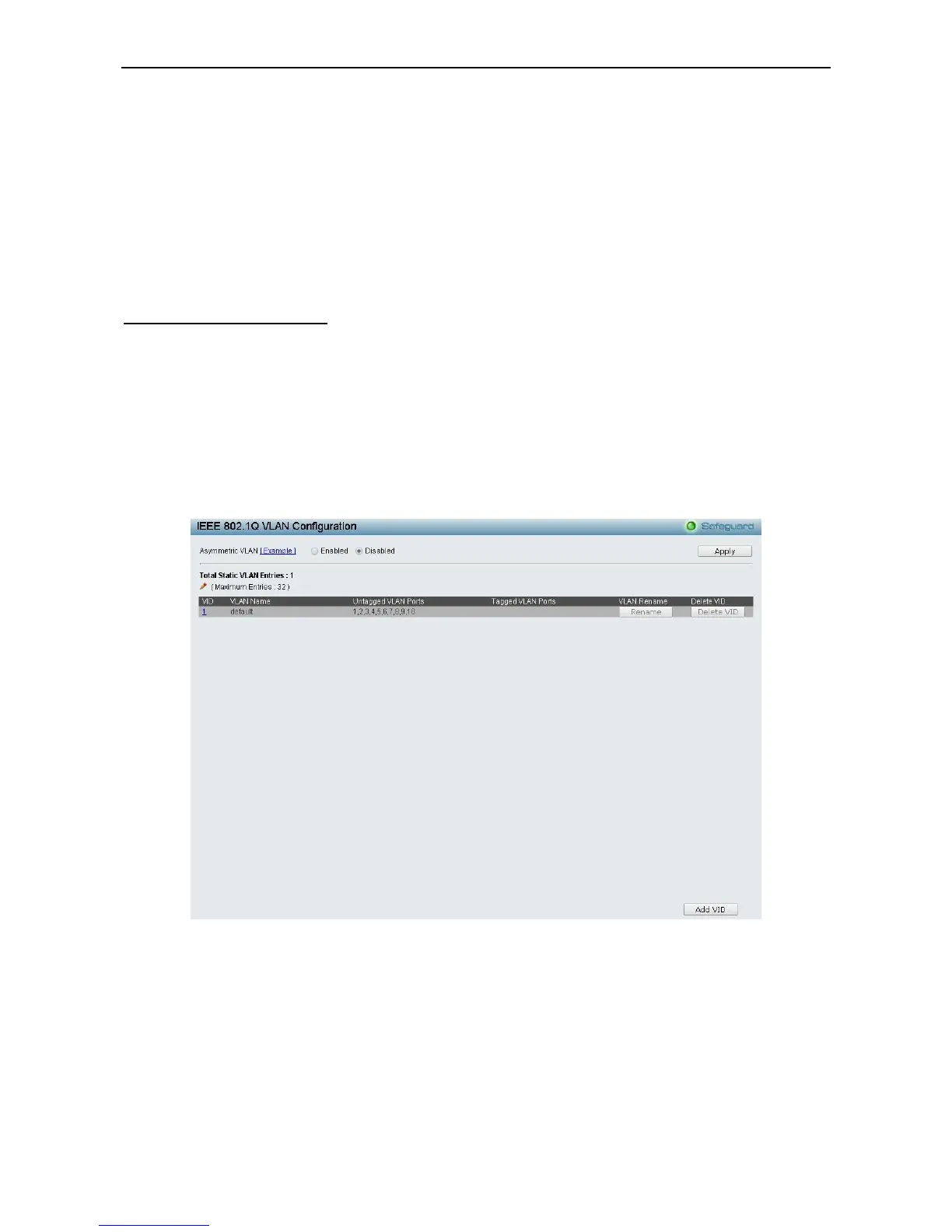

The IEEE 802.1Q VLAN Configuration page provides powerful VID management functions. The original
settings have the VID as 1, no default name, and all ports as “Untagged”
Rename: Click to rename the VLAN group.
Delete VID: Click to delete the VLAN group.
Figure 4.44 – Configuration > 802.1Q VLAN
Click Add VID to create a new VID group, assigning ports from 01 to 10 as Untag, Tag or Not Member. A
port can be untagged in only one VID. To save the VID group, click Apply.
