IF Type: Displays the IF Type.
OID: Displays the SNMP OID.
Advertising Ports: Displays the advertising ports.

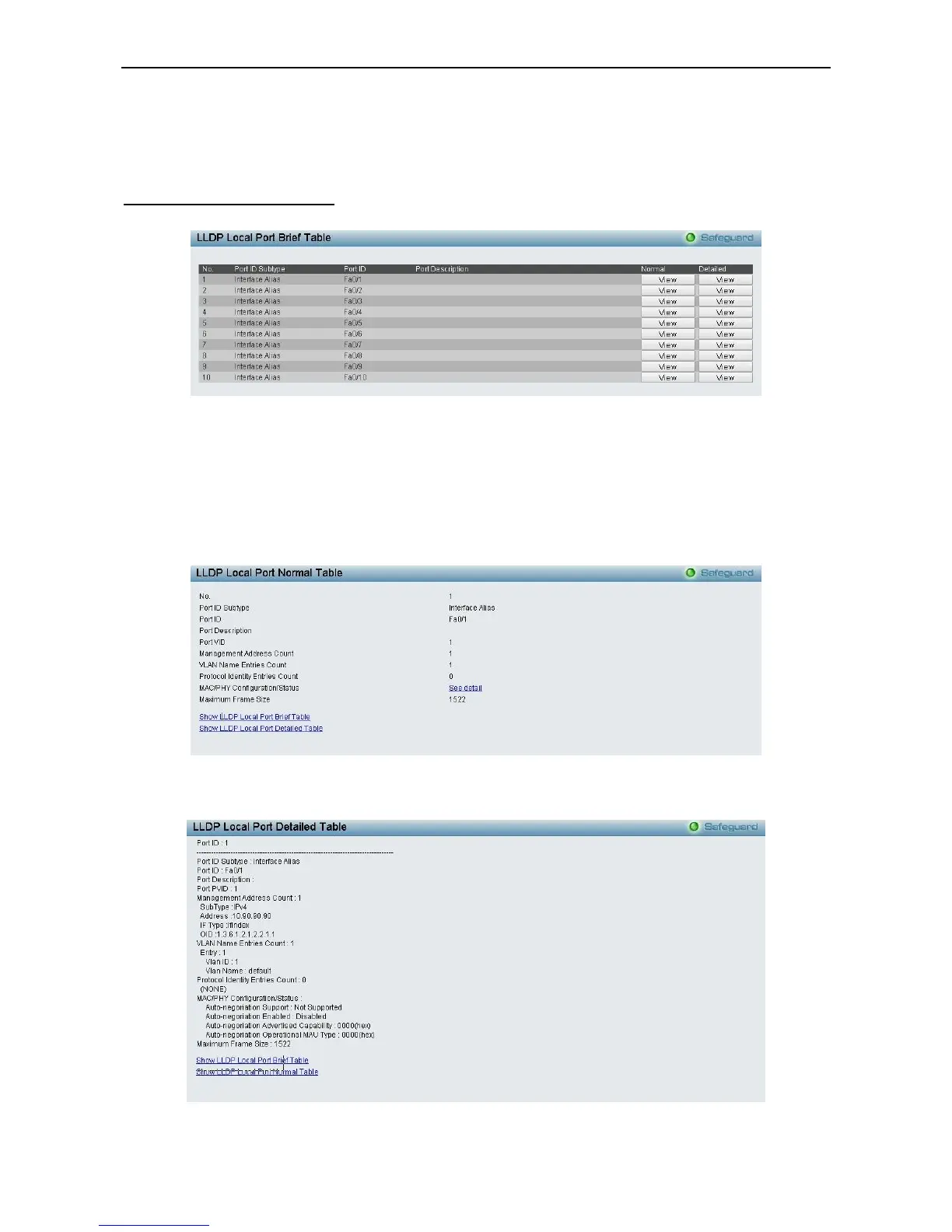

LLDP > LLDP Local Port Table
The LLDP Local Port Table page displays LLDP local port information.
Figure 4.142 –LLDP > LLDP Local Port Table
Port : Displays the port number.
Port ID Subtype: Displays the port ID subtype.
Port ID: Displays the port ID (Unit number/Port number).
Port Description: Displays the port description.
Click View of Normal column to display more information.
Figure 4.143 – LLDP > LLDP Local Port Normal Table
Click View of Detailed column to display detail information.
Figure 4.144 – LLDP > LLDP Local Port Detailed Table
