D-Link DSL-124 User Manual

137D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual
Section 7 - Connecting a Wireless Client to your Router

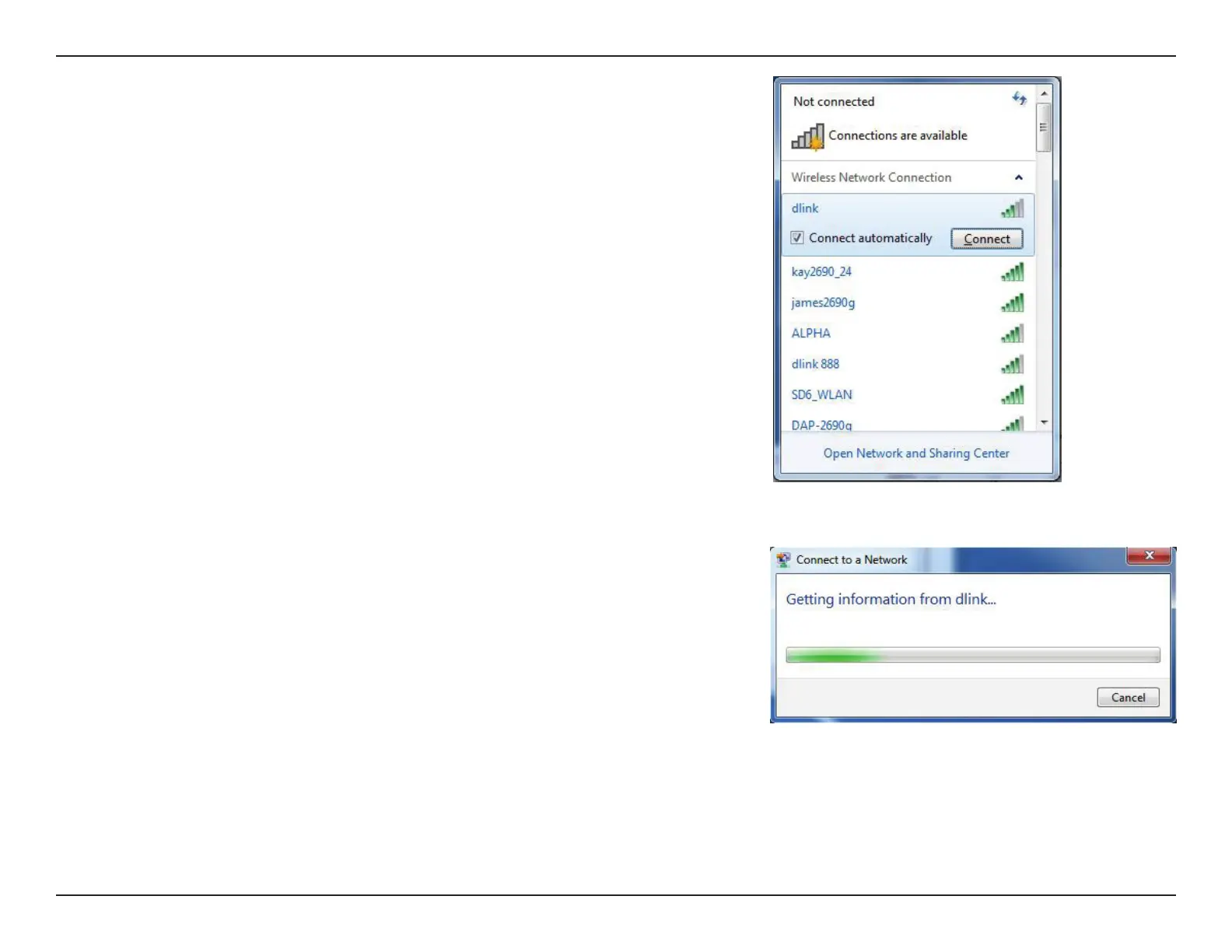

Highlight the wireless connection with Wi-Fi name (SSID) you would like to connect to and
click the Connect button.
If you get a good signal but cannot access the Internet, check your TCP/IP settings for your
wireless adapter. Refer to the Networking Basics section in this manual for more information.
The following window appears while your computer tries to connect to the router.

D-Link DSL-124 Specifications

General

Wireless Standard	802.11b/g/n
Frequency Band	2.4GHz
LAN Ports	4 x 10/100Mbps
Security	WPA/WPA2
Antenna	2 x External Antennas
Wired Ports	1 x RJ-11 ADSL port
ADSL Standards	ADSL2/2+
