D-Link DSL-124 User Manual

138D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual
Section 7 - Connecting a Wireless Client to your Router

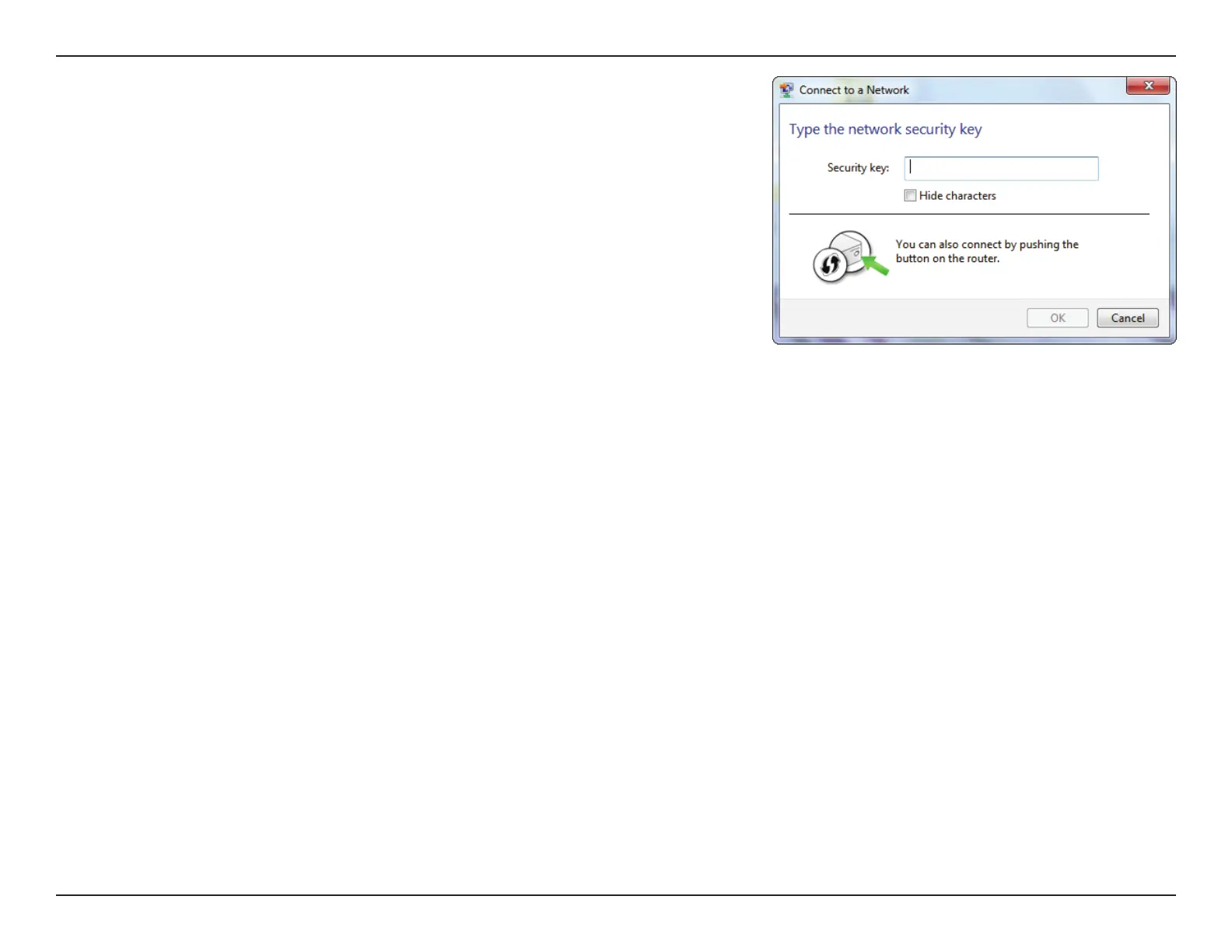

Enter the same security key or passphrase (Wi-Fi password) that is on your router and click
Connect. You can also connect by pushing the WPS button on the router.
It may take 20-30 seconds to connect to the wireless network. If the connection fails, please
verify that the security settings are correct. The key or passphrase must be exactly the same
as the one on the wireless router.

D-Link DSL-124 Specifications

General

Wireless Standard	802.11b/g/n
Frequency Band	2.4GHz
LAN Ports	4 x 10/100Mbps
Security	WPA/WPA2
Antenna	2 x External Antennas
Wired Ports	1 x RJ-11 ADSL port
ADSL Standards	ADSL2/2+
