DSL-2640U Wireless ADSL2+ Router with Ethernet WAN Support
User Manual
Configuring via Web-based Interface

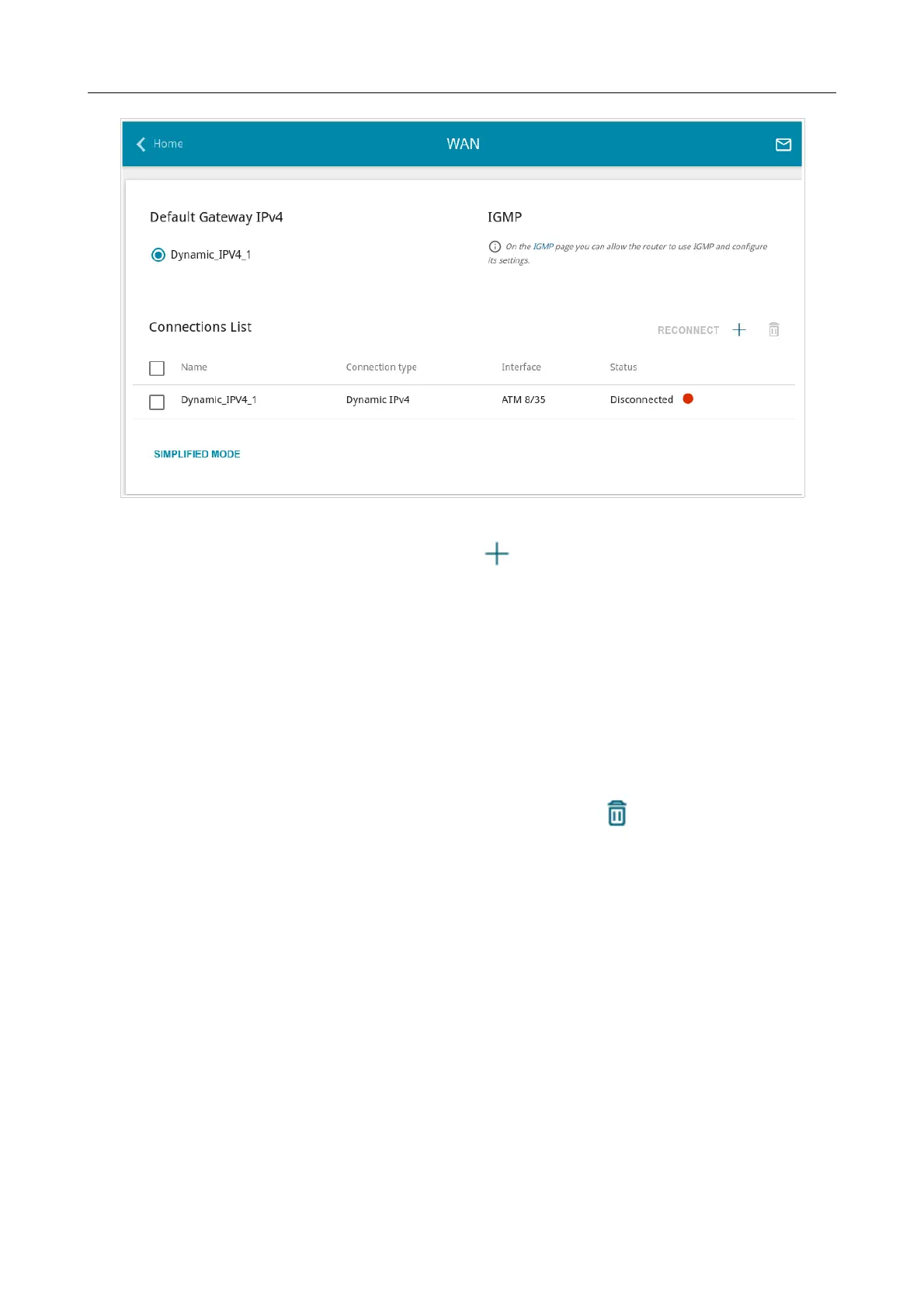

Figure 44. The Connections Setup / WAN page. The advanced mode.
To create a new connection, click the ADD button ( ) in the Connections List section. Upon
that the connection creation page opens.
To edit an existing connection, in the Connections List section, left-click the relevant line in the
table. On the opened page, on the Basic tab, mandatory settings of this WAN connection will be
displayed. To view all available settings of the WAN connection, go to the All Settings tab.
Change the needed parameters and click the APPLY button.
To disconnect a connection and establish it again, select the checkbox located to the left of the
relevant line in the table and click the RECONNECT button.
To remove a connection, in the Connections List section, select the checkbox located to the left
of the relevant line in the table and click the DELETE button ( ). Also you can remove a
connection on the editing page.
To allow multicast traffic (e.g. streaming video) for a connection, click the IGMP link (for the
description of the page, see the IGMP section, page 137).
To use one of existing WAN connections as the default IPv4 or IPv6 connection, in the Default
gateway section, select the choice of the radio button which corresponds to this connection.
To return to the simplified mode, click the SIMPLIFIED MODE button (the button is unavailable,
if several WAN connections are created).
Page 58 of 174
