D-Link DSL-2640U User Manual

DSL-2640U Wireless ADSL2+ Router with Ethernet WAN Support
User Manual
Configuring via Web-based Interface
-5.
On the Yandex.DNS / Devices and Rules page, you can specify a filtering mode for each
device separately.

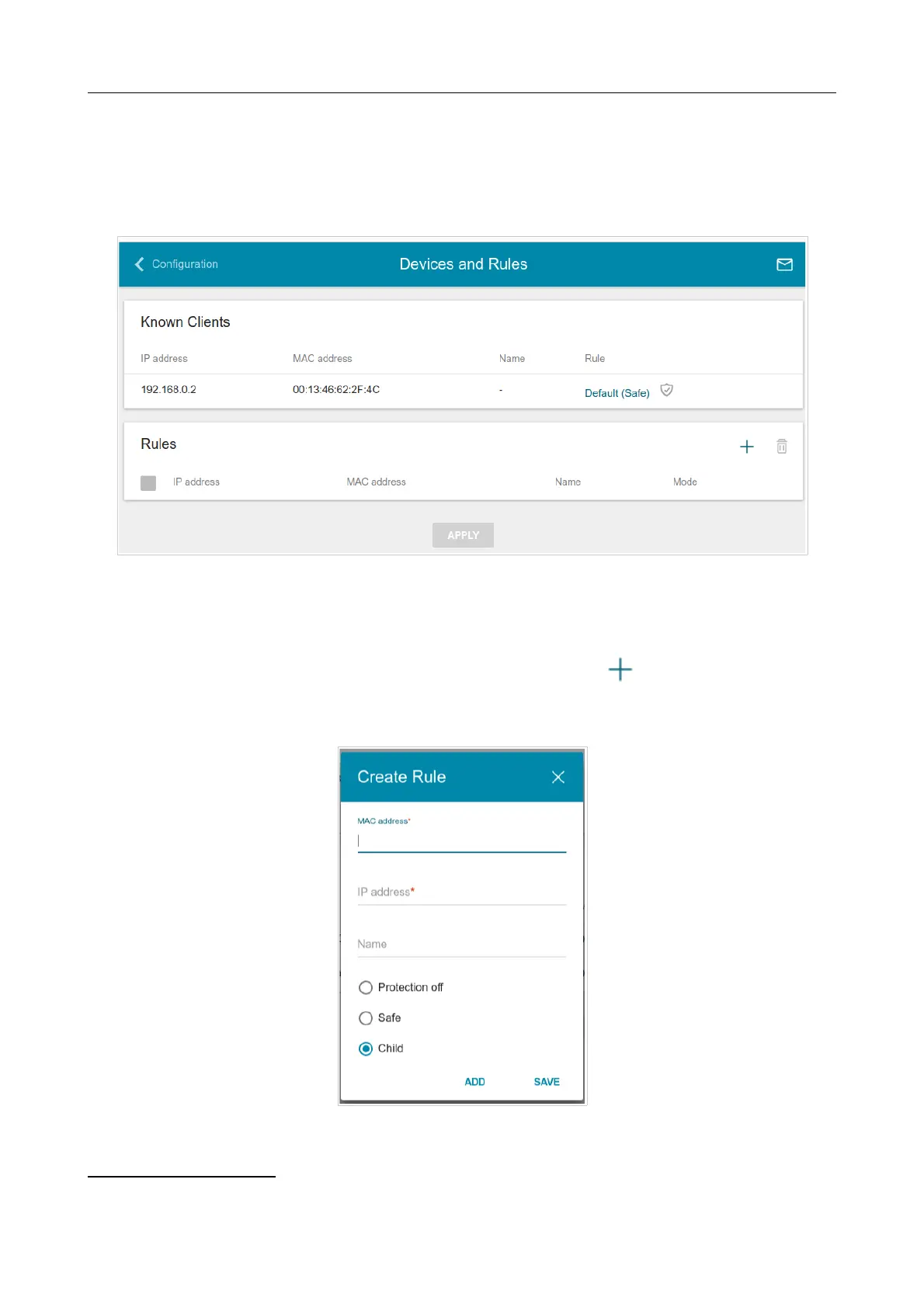

Figure 128. The Yandex.DNS / Devices and Rules page.
In the Known Clients section, the devices connected to the local network of the router at the
moment and their relevant filtering mode are displayed.
To create
5
a new filtering rule for a device, click the ADD button ( ) in the Rules section, or
left-click the name of the filtering mode in the line of the device for which a rule should be created
in the Known Clients section.
Figure 129. Adding a new rule for the Yandex.DNS service.
5 When a new rule for filtering is created, a MAC address and IP address pair is displayed on the Connections
Setup / LAN page. The created pair will be deleted with the relevant rule.
Page 169 of 174

D-Link DSL-2640U Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz - 60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b transfer rates	11, 5.5, 2, and 1 Mbps
IEEE 802.11g transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Media Interface

ADSL interface connector	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface ports	four RJ-45 ports for 10/100BASE-T Ethernet connection
