D-Link DSL-2740E User Manual

DSL-2740E User Manual
33

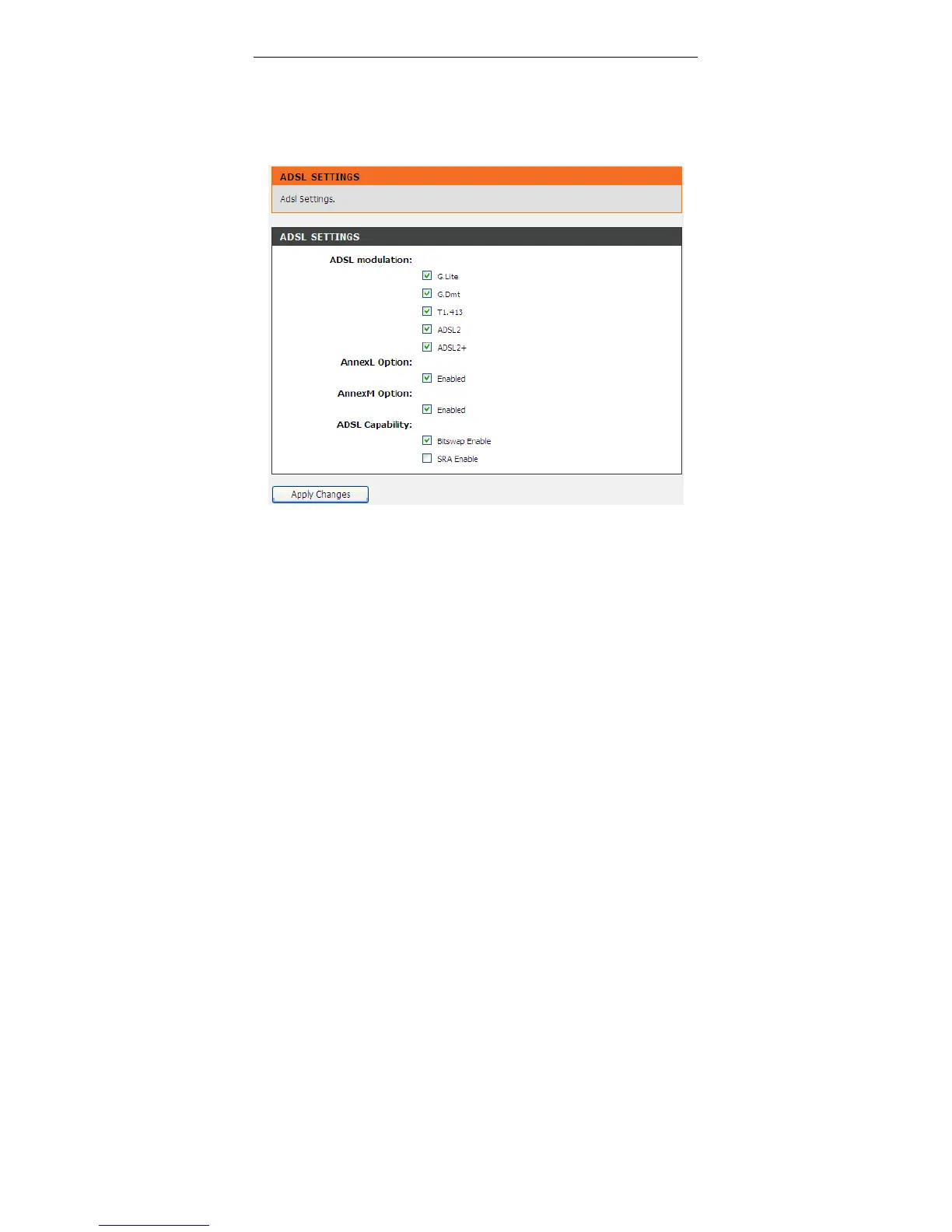

3.2.3.3 ADSL Settings
Choose Setup > Internet Setup > ADSL Settings. The ADSL Settings page
appears. This page contains a modulation and capability section to be specified by
your ISP. Consult with your ISP to select the correct settings for each. Click Apply
Changes to finish.
3.2.3.4 PVC Auto Search
Choose Setup > Internet Setup > PVC Auto Search. The Auto PVC
Configuration page appears. You may configure PVC auto detect function. Here
you can add/delete auto PVC search table.

D-Link DSL-2740E Specifications

Data Transfer Rates

G.dmt full rate downstream	8 Mbps
G.dmt full rate upstream	1 Mbps
G.lite downstream	1.5 Mbps
G.lite upstream	512 Kbps
G.dmt.bis full rate downstream	12 Mbps
G.dmt.bis full rate upstream	12 Mbps
ADSL full rate downstream	24 Mbps
ADSL full rate upstream	1 Mbps

Media Interface

ADSL interface connector type	RJ-11
LAN interface port type	RJ-45
Ethernet connection type	10/100BASE-T
