D-Link DSL-2740E User Manual

DSL-2740E User Manual
96
3.4.4.5 Diag Test

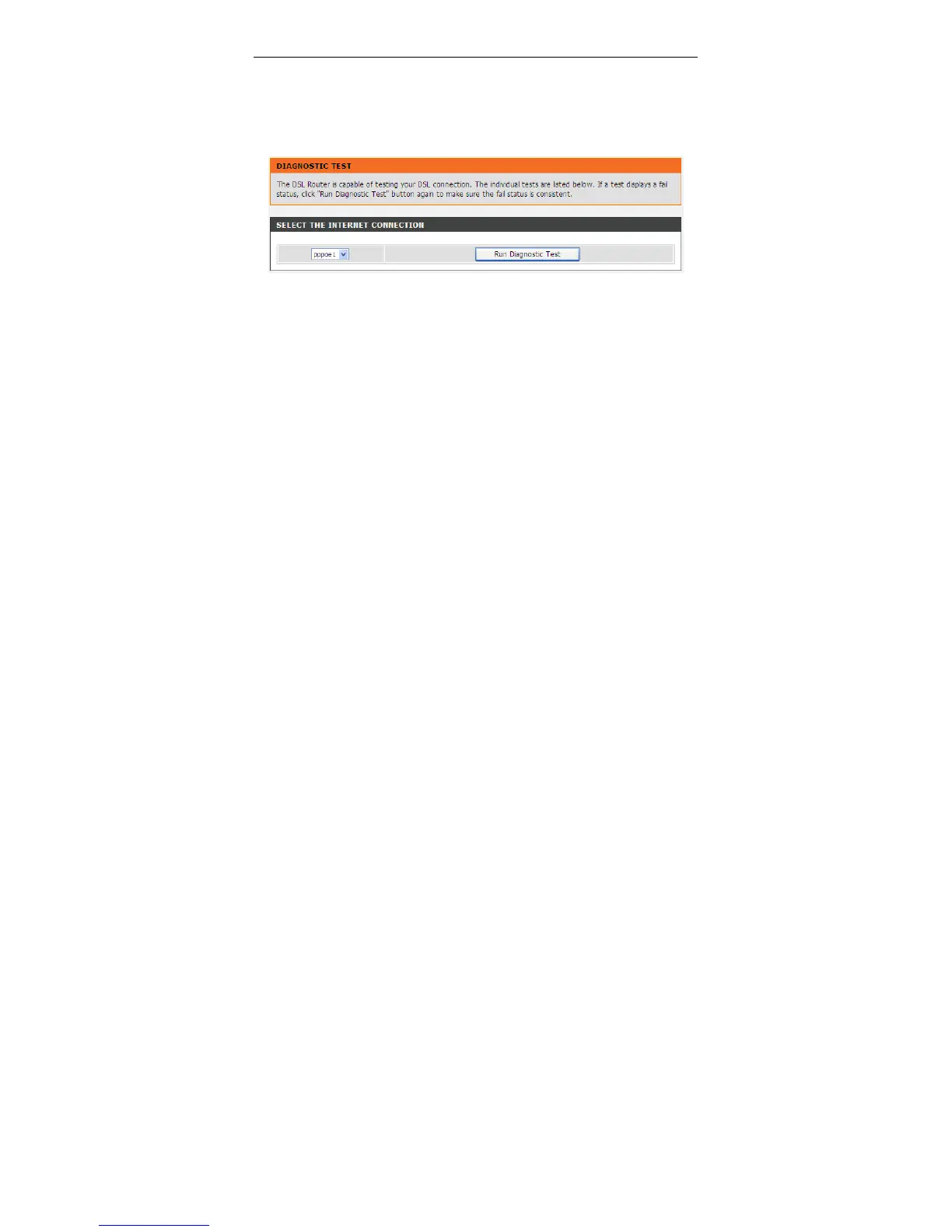

Choose Maintenance > Diagnostics > Diag Test. The page shown in the
following figure appears. In this page, you can test the DSL connection. You can
also view the LAN status connection and ADSL connection.
3.4.5 System Log
Choose Maintenance > System Log. The page shown in the following figure
appears. This section when enabled allows the system to begin logging events
based on the selected log level.
The router can only keep a limited number of log entries due to router memory
constraints. If you have an external SYSLOG server, you may choose to configure
external logging and all log entries will be sent to your remote server.

D-Link DSL-2740E Specifications

Data Transfer Rates

G.dmt full rate downstream	8 Mbps
G.dmt full rate upstream	1 Mbps
G.lite downstream	1.5 Mbps
G.lite upstream	512 Kbps
G.dmt.bis full rate downstream	12 Mbps
G.dmt.bis full rate upstream	12 Mbps
ADSL full rate downstream	24 Mbps
ADSL full rate upstream	1 Mbps

Media Interface

ADSL interface connector type	RJ-11
LAN interface port type	RJ-45
Ethernet connection type	10/100BASE-T
