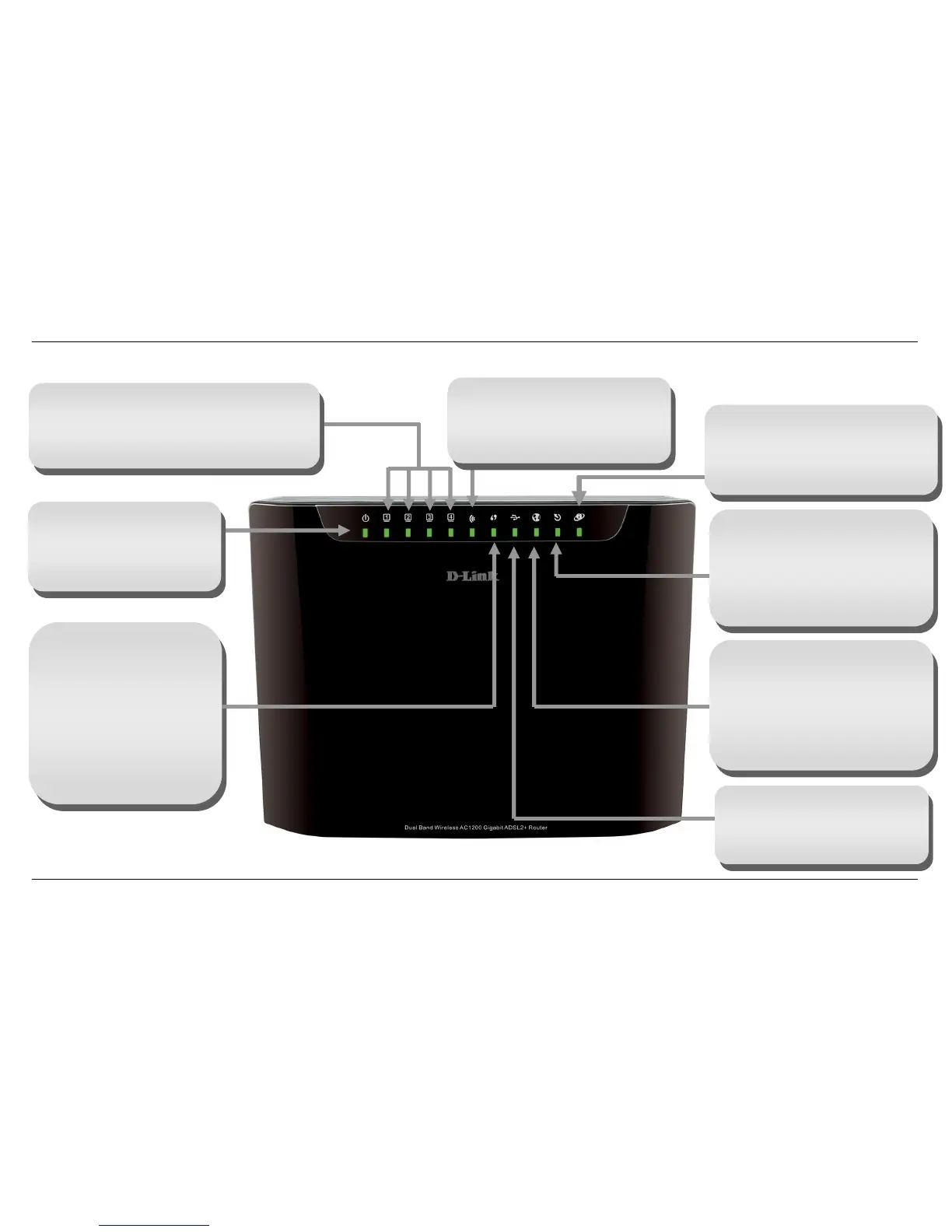

Hardware Overview – LED Indication
Power
Steady Green light indicates the
unit is powered on. When the
device is powered off, this
remains dark.
DSL
Steady Green light indicates a valid
ADSL connection. This will light after
the ADSL negotiation process has
been settled. A blinking Green light
indicates activity on the WAN (ADSL)
interface.
Ethernet LAN
A solid Green light indicates a valid link on startup at
1000Mbps. A solid Amber light indicates a valid link
on startup at 100Mbps. These lights blink when there
is activity currently passing through the Ethernet port.
WLAN
Steady Green light indicates 2.4G
wireless connection. Steady Amber
indicates 5G wireless connection.
Blinking light indicates WLAN activity.
Internet
Steady Green light indicates a successful
Internet connection. Steady Red light
indicates failed Internet connection. Dark
if no WAN protocol is configured.
USB
Steady Green light indicates a
successful USB connection. Dark if no
USB device is plugged.
Ethernet WAN
A solid Green light indicates a valid link
on startup at 1000Mbps. A solid Amber
light indicates a valid link on startup at
100Mbps. A solid Green + Amber light
indicates link rate is 10Mbps.This light
blinks when there is activity currently
passing through the Ethernet port.
WPS
Dark indicates ready for new
WPS connection. Blinking
indicates WPS process is
triggered and waiting for
another WPS device joining.
Steady Blue light indicates
connection is successfully
established between the router
and the client. The LED will
remain in solid Blue for 5
seconds.
