Lease Time: Enter the length of time for the IP lease.
Domain Name Server Assignment: Select Auto or Manual to get the IP address of Domain Name
Server assigned by ISP or manually.
Domain Name Server IP: Enter the primary and secondary IP address of Domain Name Server if
Domain Name Server Assignment is Manual. Otherwise, the VoIP TA will not be able to access hosts
using hostnames instead of IPs.

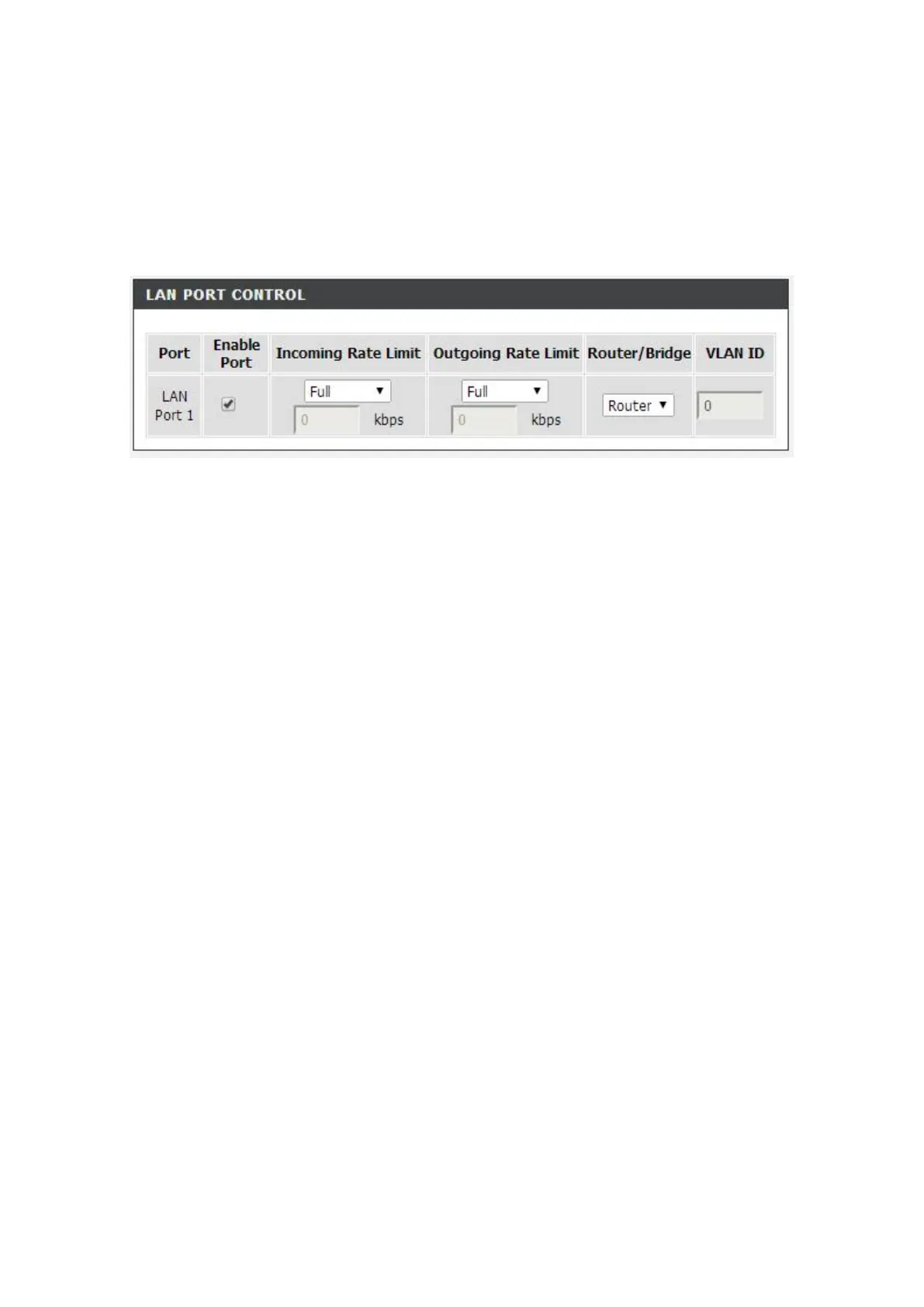

SETUP → LAN Setup
Enable Port: It is to active/des-active LAN port physical connection.
Incoming Rate Limit: Set the incoming (from LAN to WAN) rate limit of a specific LAN port (can not
exceed the real downstream bandwidth).
Outgoing Rate Limit: Set the outgoing (from WAN to LAN) rate limit of a specific LAN port (can not
exceed the real upstream bandwidth).
NAT/Bridge: Select the VoIP Router serving as a Router with NAT or Bridge between WAN port and
LAN port without NAT.
Note: If you set a LAN port to be bridge mode that the LAN port will be bundled with WAN. If you
would like to connect to DVG-N5412SP at the bridged LAN port you must enter WAN port IP.
VLAN ID: Assign a VLAN ID for DVG-N5412SP to transit traffic through-out at WAN port for WAN-LAN
bridge mode. The packets are un-tagged at LAN port and added tag at WAN port.
Note: It is not allowed to change VLAN ID for NAT mode LAN ports. The VLAN ID of NAT LAN
ports are bundled with WAN 1 which assigned at Internet Setting page. The packets are un-tagged
at LAN port and added tag at WAN port.
