DVG-7111S User’s Manual Telephone Interface Description
D-Link Systems, Inc. 5
1-2 Hardware Description

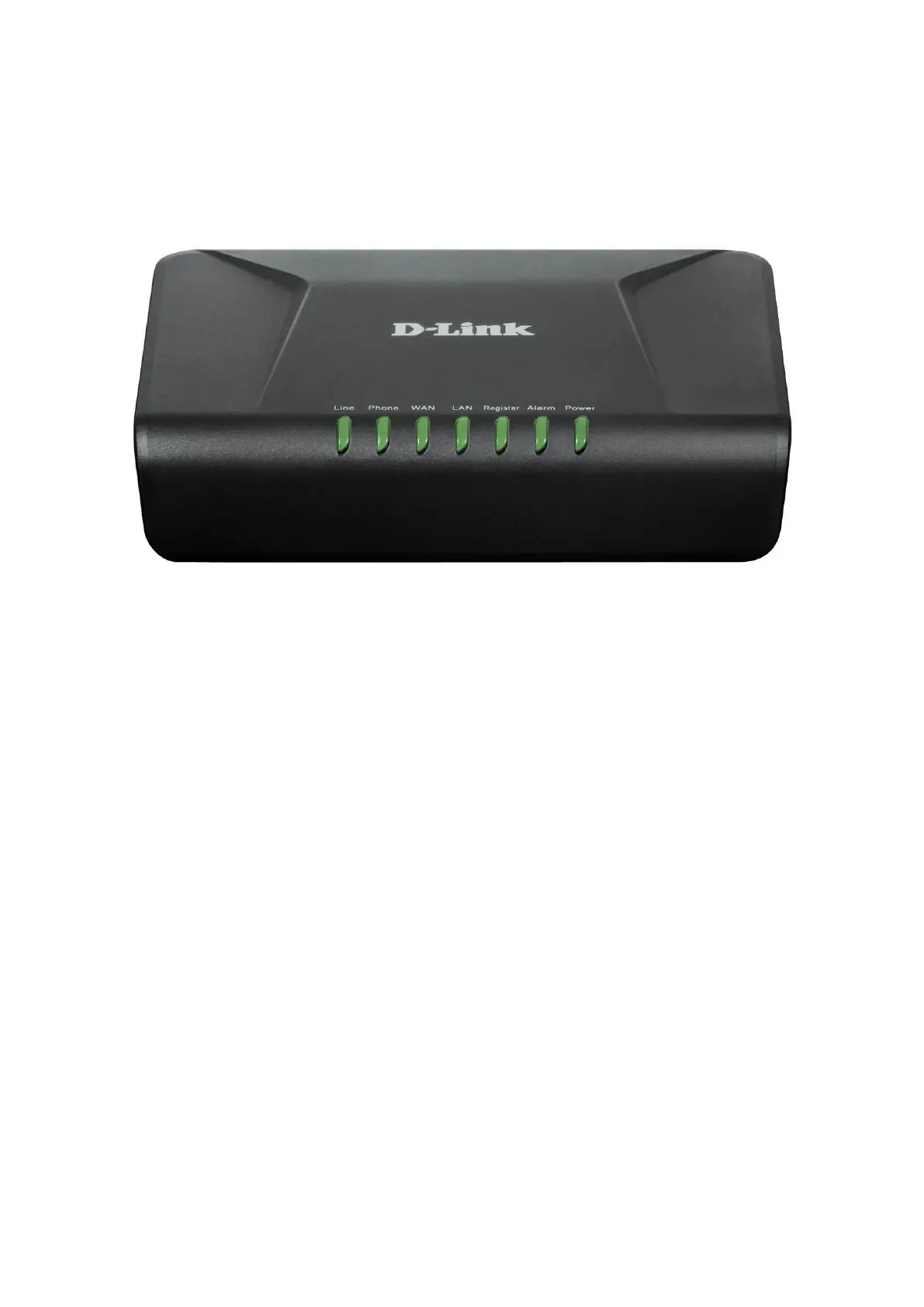

Front Panel
 Power: Solid green light indicates a normal power supply.
 Alarm: Red light indicates abnormal status, such as failed to register or provision or not obtained IP
address.
 Register: The Register LED will turn on when the VoIP Router is connected to a VoIP service
provider. The LED will blink if not connected to a service provider.
 LAN indicator: When a connection is established the LED will light up solid. The LEDs will blink to
indicate activity. If the LED does not light up when a cable is connected, verify the cable
connections and make sure your devices are powered on.
 WAN indicator: When a connection is established the LED will light up solid. The LED will blink to
indicate activity. If the LED does not light up when a cable is connected, verify the cable
connections and make sure your devices are powered on.
 Phone Indicator: Phone LED will light up solid if a phone connected to a phone port is off the hook
or in use. When a phone is ringing, the indicator will blink.
 Line Indicator: Line LED light on means FXO/PSTN line is in use (off-hook).
Note: When starting up DVG-7111S, all indicators will light up. After about 40 seconds, the Reg.
indicator will blink in green. If the Prov./Alm indicator continues to blink, it means DVG-7111S is
currently communicating with ISP and has yet to obtain an IP address or fail to register to VoIP
Service Provider.
