3-2-3 Firewall and DMZ
3-2-3-1 DMZ
DMZ (Demilitarized Zone) allows the server on the LAN site to be directly exposed to the Internet for
accessing data and to forward all incoming ports to the DMZ Host. Adding a client to the DMZ may
expose that computer to a variety of security risks; so only use this option as a last resort.

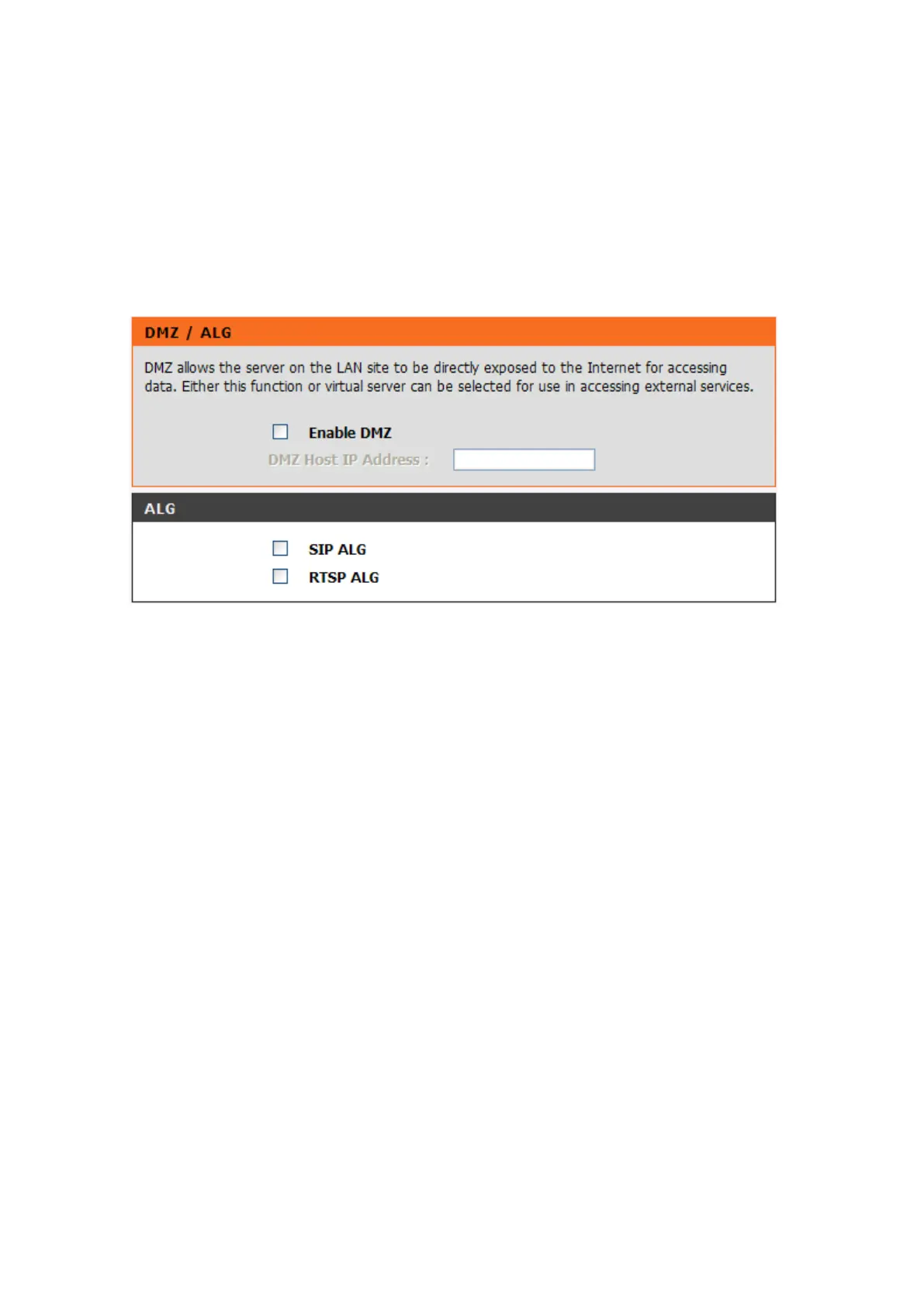

ADVANCED → Firewall and DMZ → DMZ
Enable DMZ: Check the box to enable DMZ feature.
DMZ Host IP Address: Enter the IP address of that computer as a DMZ Host with unrestricted Internet
access.
Note: Either this function or virtual server can be selected for use in accessing external services.
SIP ALG: Enable ALG for LAN port SIP UA.
RTSP ALG: Enable ALG for RTSP multimedia stream.
