DVG-7111S User’s Manual ADVANCED
D-Link Systems, Inc. 48

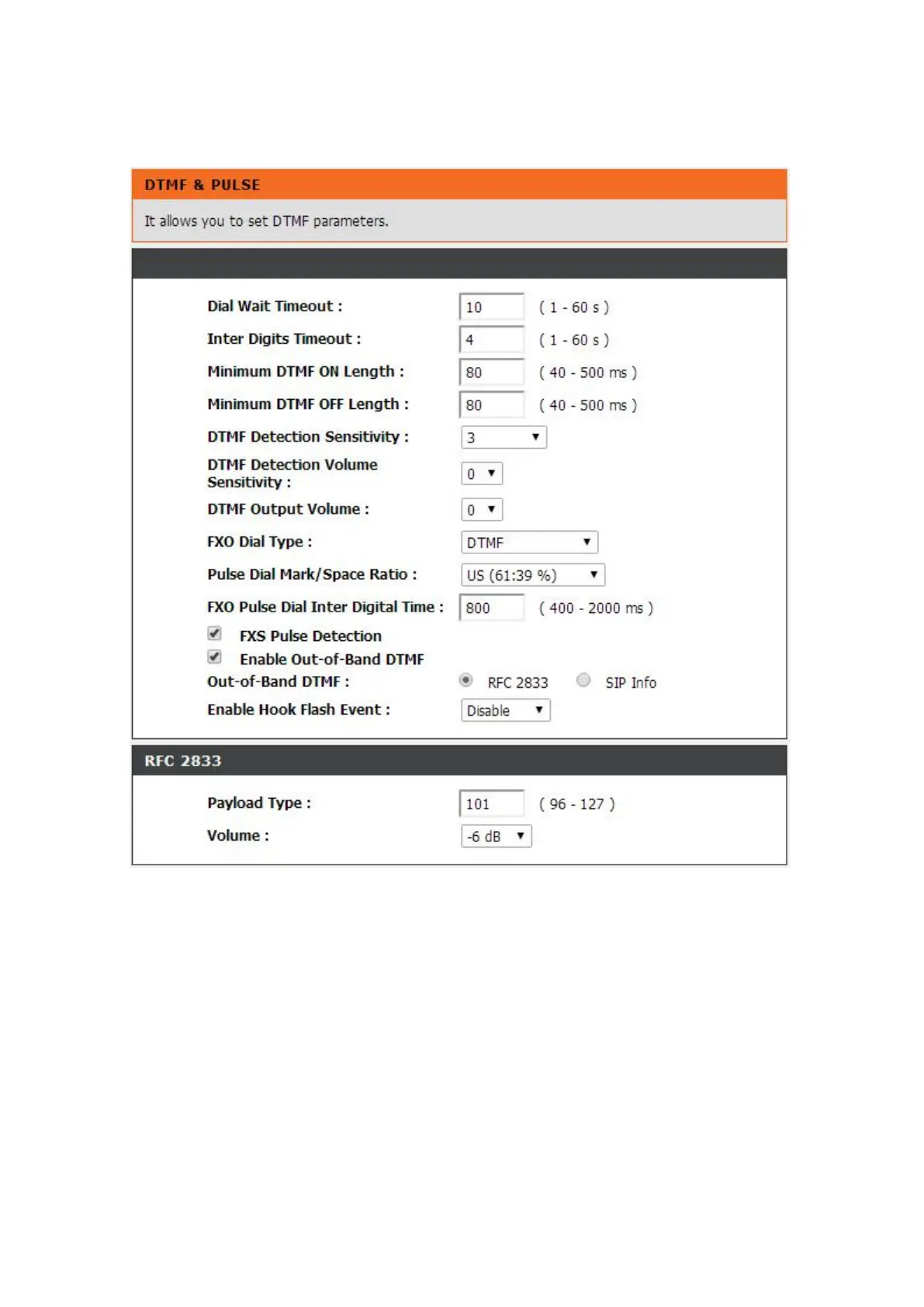

3-2-1-7 DTMF & PULSE
ADVANCED → VoIP → DTMF & PULSE
Dial Wait Timeout: Enter the timeout duration after the user picks up the phone set.
Inter Digits Timeout: Enter the timeout duration between the intervals of each key pressed. When
exceeding the set timeout duration without entering further digits, the numbers entered will be dialed
out.
Minimum DTMF ON Length (Dial on)/ Minimum DTMF OFF Length (Dial off - between tones): This
variable is to set the length of DTMF playback.
DTMF Detection Sensitivity: Select the sensitivity of the telephone keys for the VoIP TA to detect the
DTMF.
DTMF Detection Volume Sensitivity: Adjust DTMF detect threshold of DTMF volume
DTMF Output Volume: Adjust the Tx volume of FXS port for DTMF Caller ID or Out of Band DTMF.
FXO Dial Type: Select dial type as DTMF or Pulse for FXO.
Pulse Dial Mark / Space Ration: Duration and break for pulse dial ration.
Enable Out-of-Band DTMF: Check the box to set the method of DTMF transmission. RFC2833 or SIP
