Section 2 – Installation
D-Link DWP-1010 User Manual 6

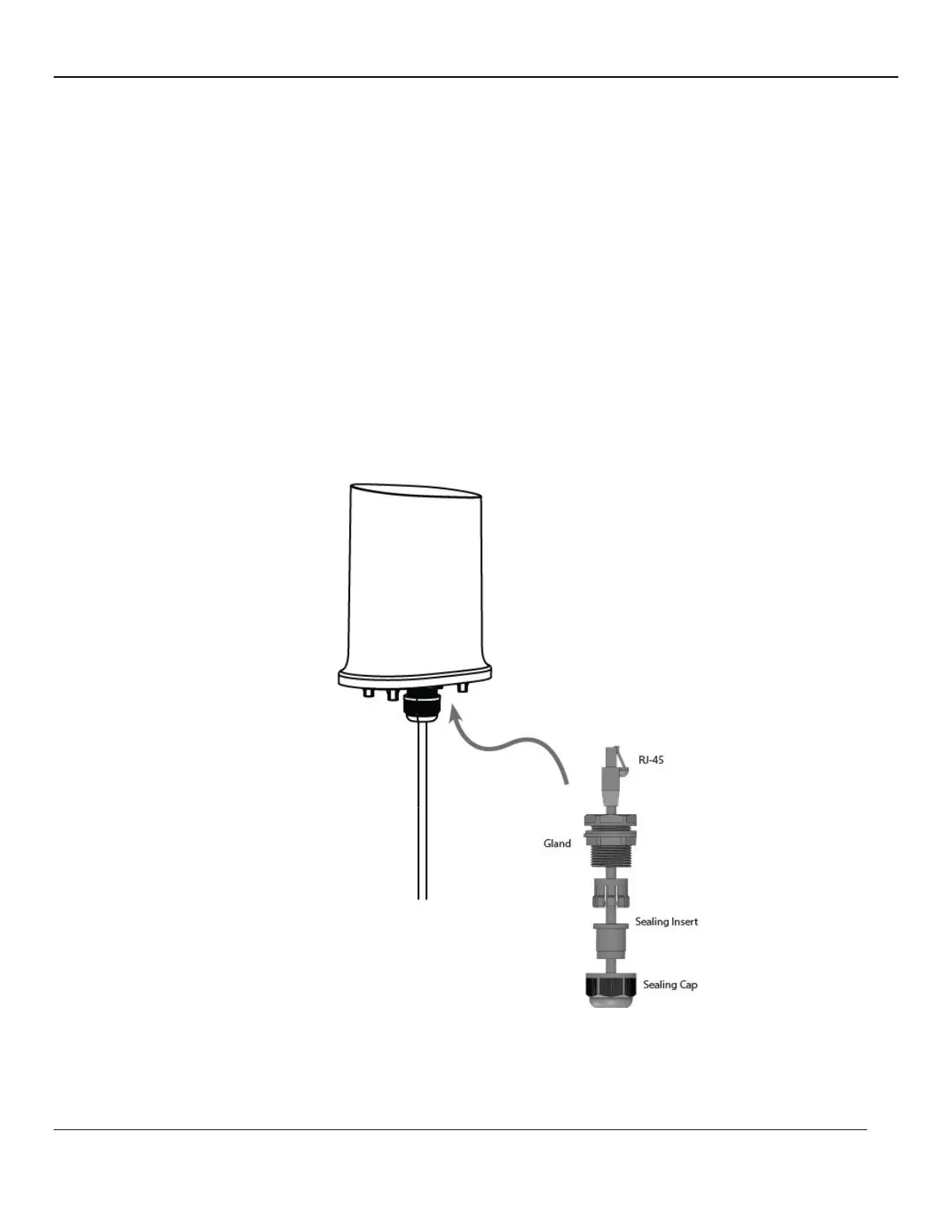

Connecting an Ethernet Cable
1. Separate the sealing cap and sealing insert of the waterproof connector.
2. Insert the RJ-45 connector to the PoE port by threading an Ethernet cable through gland > sealing insert >
sealing cap.
3. Place the water-resistant component back to DWP-1010.
4. Attach the sealing insert to the gland and make sure the assembly is fixed on the bottom of the water-
resistant component.
5. Attach the sealing cap and tighten until snug.
6. Secure the water-resistant component with six (M2.5x6 mm) screws. Position it as the arrow indicated.
(The arrow is located on the bottom.)
7. Thread the RJ-45 cable through the protective base.
8. Reinstall the protective base with the four (M3x4 mm) screws. (Skip this step if you’re using a wall mount)
