3D-Link DWR-961 User Manual
Section 1 - Product Overview
Hardware Overview

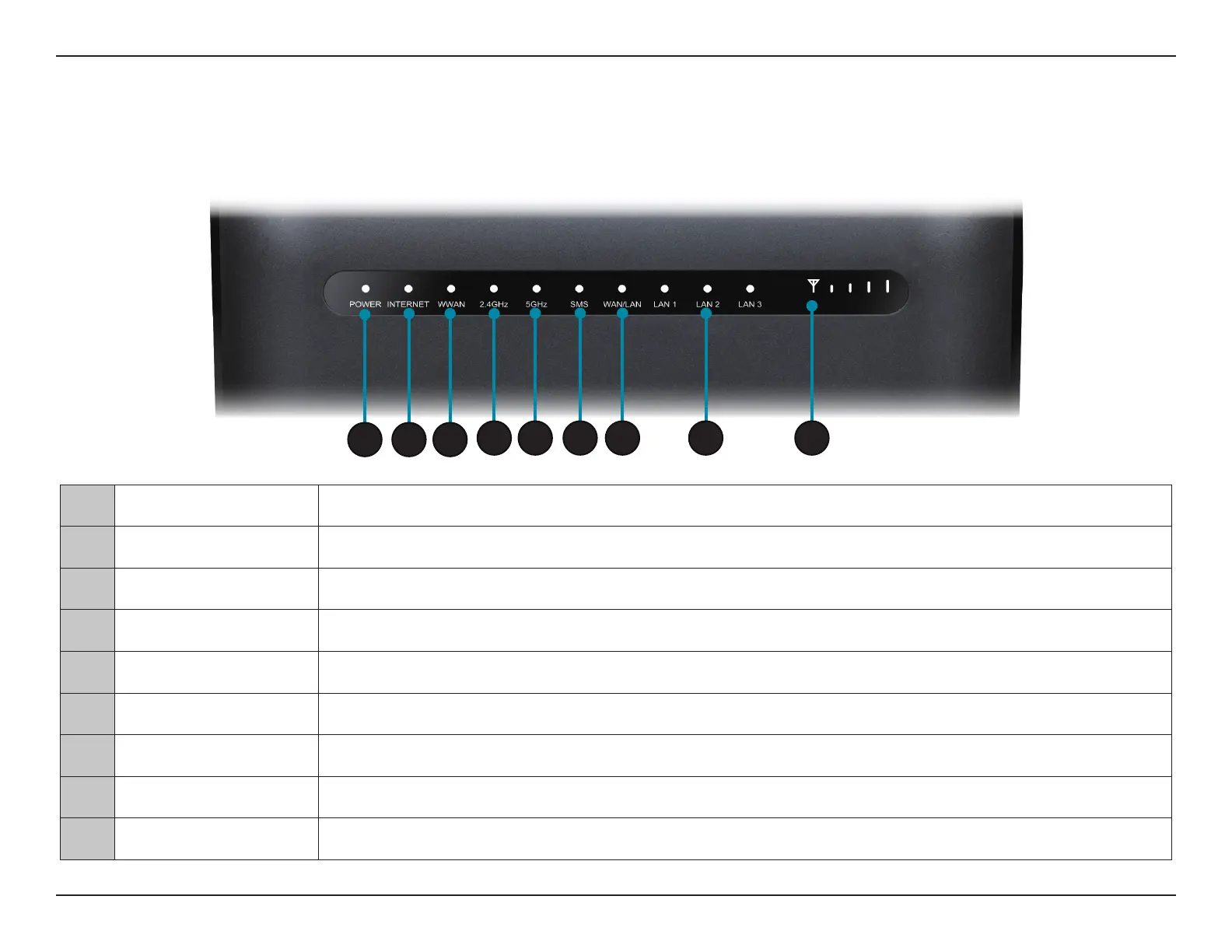

Front View
1 Power LED Will be lit green if the device is powered on and working. Will turn red if there is an error.
2 Internet Will be lit if an Internet connection is established, and will blink when data is being transferred.
3 WWAN Will be lit if a WWAN connection is established.
4 2.4 GHz Wi-Fi Will be lit if the 2.4 GHz wireless function is enabled.
5 5 GHz Wi-Fi Will be lit if the 5 GHz wireless function is enabled.
6 SMS Will be solid green if the SMS inbox is full, or blinking if there is an unread SMS message.
7 WAN/LAN Will be lit if an Ethernet WAN connection is established, and will blink when data is being transferred.
8 LAN Will be lit if an Ethernet LAN connection is established, and will blink when data is being transferred.
9 Signal Strength LED Indicates 4G signal strength with bars. More bars indicate a stronger signal.
1 2 3
4 5 6 7 98
To Next Page
