D-Link DXS-1210 Series Hardware Installation Guide

DXS-1210 Series 10 Gigabit Ethernet Smart Managed Switch Hardware Installation Guide
17
Web User Interface (Web UI)
The Web UI, a graphical representation, provides access to most of the software features available on the Switch.
These features can be enabled, configured, disabled, or monitored using any standard web browser, like Microsoft’s
Internet Explorer, Mozilla Firefox, Google Chrome, or Safari. The LAN ports offers an in-band connection to the Web
UI using HTTP or HTTPS (SSL).
NOTE: For more information about the Web UI, refer to the DXS-1210 Series Web UI Reference Guide.
Connecting to the Web UI
To access the Web UI, open a standard web browser, enter the IP address of the Switch into the address bar of the
browser, and press the Enter key.

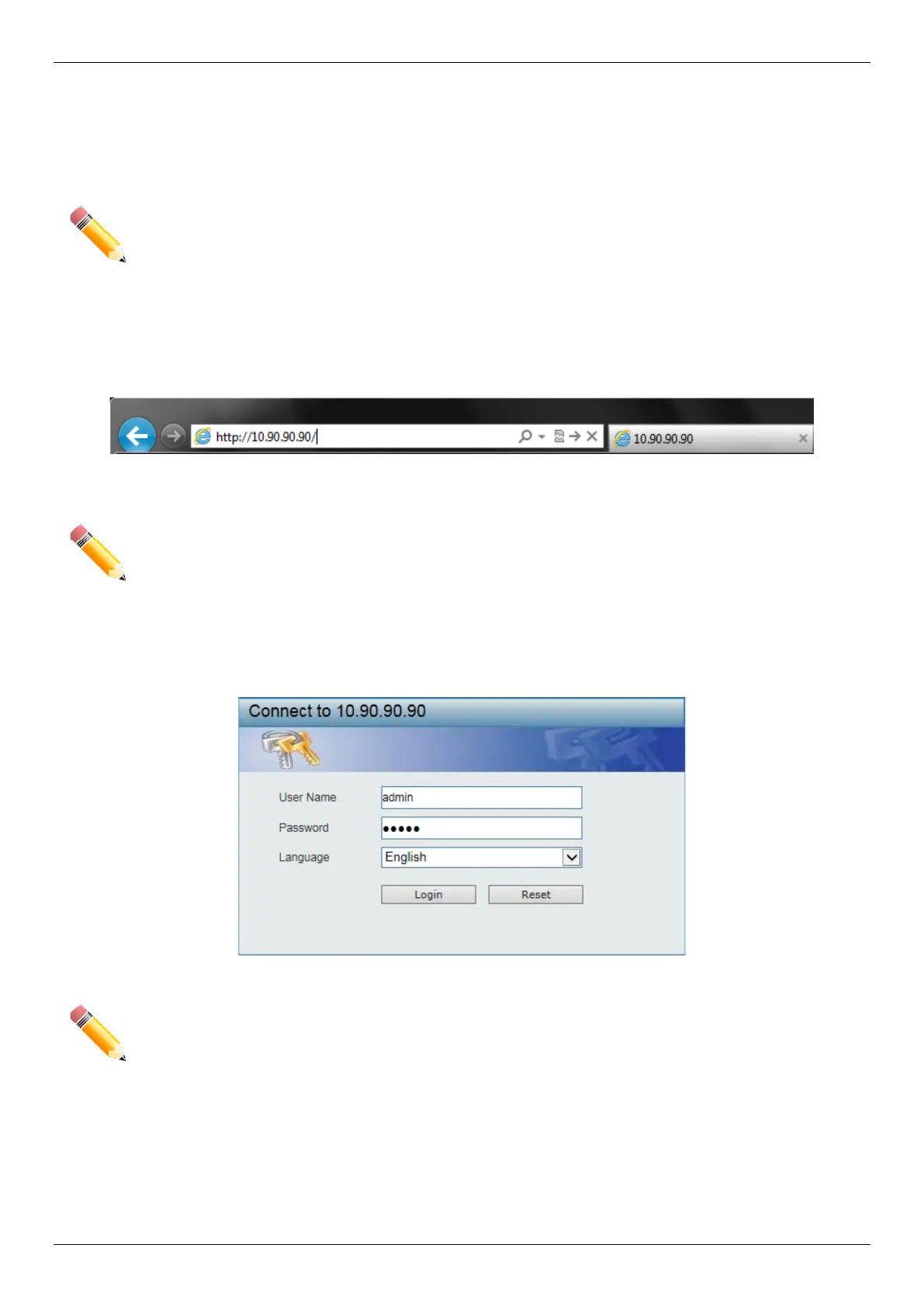

Figure 5-2 IP address in Internet Explorer
NOTE: The default IP address of the switch is 10.90.90.90 (subnet mask 255.0.0.0).
The default username and password is admin.
Logging into the Web UI
In the authentication window, enter the User Name and Password and click the Login button to access the Web UI.
Figure 5-3 Web UI Login Window
NOTE: For security reasons, it is highly recommended to configure a personal username and password
for this Switch.

D-Link DXS-1210 Series Specifications

General

Product Series	DXS-1210
Power Supply	Internal
Jumbo Frame Support	9KB
Number of Ports	12
Layer	L2+
Form Factor	Rack-mountable
Uplink Ports	10G SFP+
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
