Appendix B - Cables and Connectors
Ethernet Cable
When connecting the Switch to another switch, a bridge, or hub, a straight-through Category 5/5e/6a/7 cable is
necessary. The following diagrams and tables show the standard RJ45 receptacle/connector and their pin
assignments.

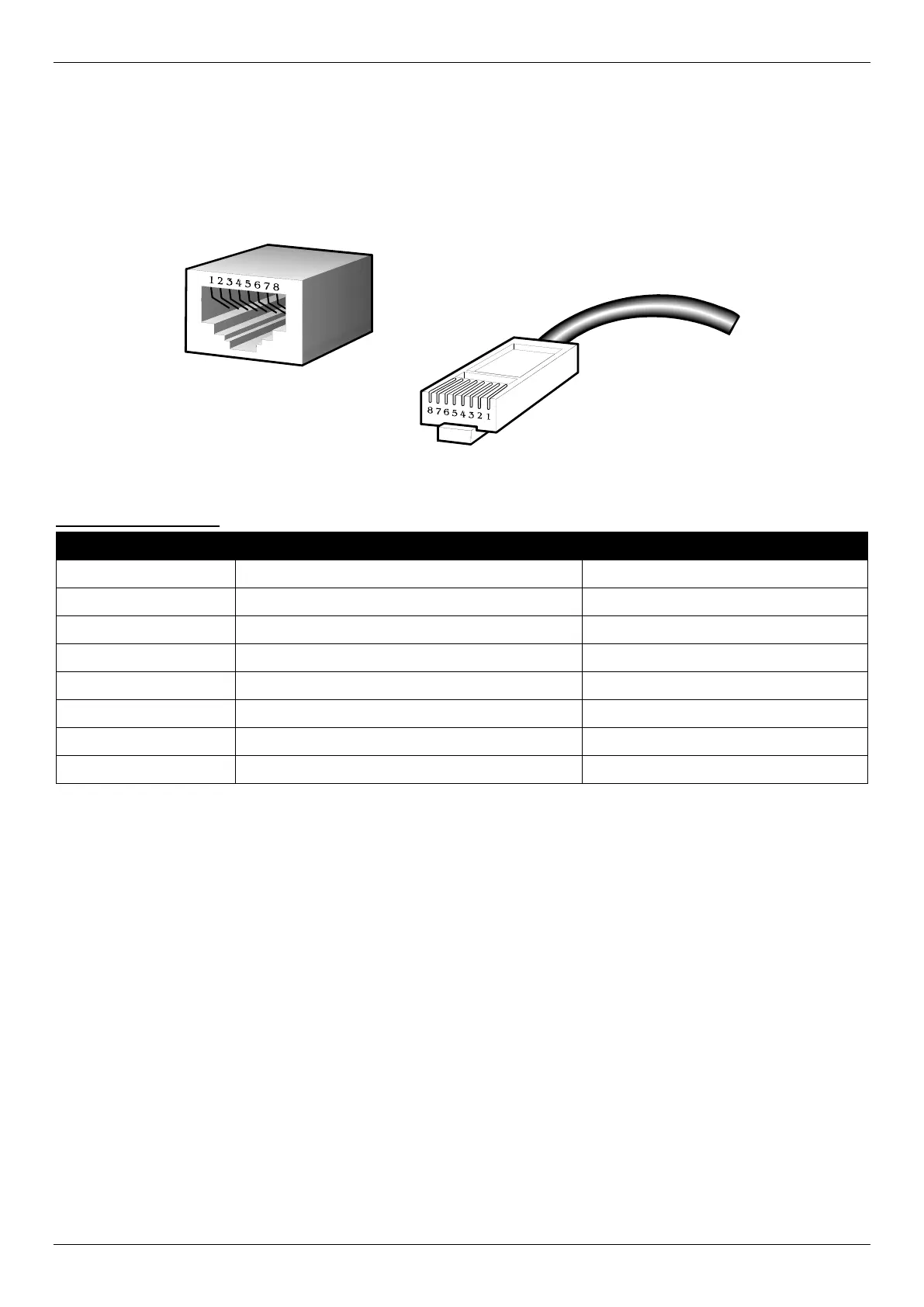

Figure B-1 Standard RJ45 port and connector
RJ45 Pin Assignment:
Contact
MDI-X Port
MDI-II Port
1
RD+ (receive)
TD+ (transmit)
2
RD - (receive)
TD - (transmit)
3
TD+ (transmit)
RD+ (receive)
4
1000BASE-T/10GBASE-T
1000BASE-T/10GBASE-T
5
1000BASE-T/10GBASE-T
1000BASE-T/10GBASE-T
6
TD - (transmit)
RD- (receive)
7
1000BASE-T/10GBASE-T
1000BASE-T/10GBASE-T
8
1000BASE-T/10GBASE-T
1000BASE-T/10GBASE-T

D-Link DXS-1210 Series Specifications

General

Product Series	DXS-1210
Power Supply	Internal
Jumbo Frame Support	9KB
Number of Ports	12
Layer	L2+
Form Factor	Rack-mountable
Uplink Ports	10G SFP+
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
