Web Interface Navigation
When the Web UI is accessed for the first time, the user is guided through the setup Wizard. After the setup wizard
steps, the main interface of the Web UI can be accessed.
The following illustrates the areas available in the Web UI in the Standard Mode:

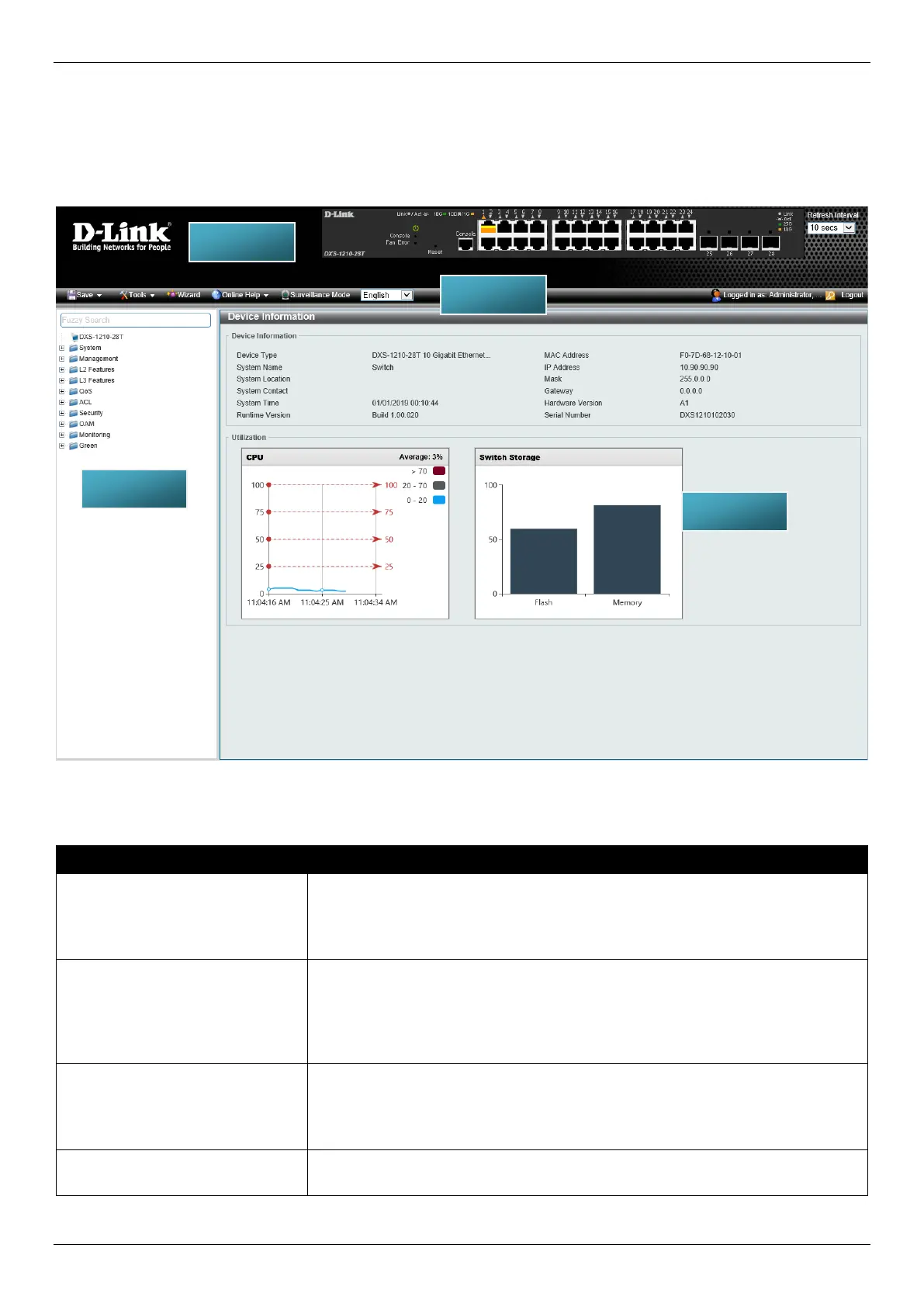

Figure 5-4 Web User Interface Areas (Standard Mode)
In the following table, the areas in the Web UI are described:
Area Number
Function
AREA 1
In this area, a graphical near real-time image of the front panel of the Switch is
displayed with ports and expansion modules. Some management functions like
port monitoring are also accessible here.
Click the D-Link logo to go to the D-Link website.
AREA 2
In this area, a toolbar with access to functions like Save, Tools, Wizard,
Online Help, the Surveillance Mode, customized Language preferences, and
a Logout option is available.
The user account and IP address, currently accessing the Web UI, is displayed
on the right in this toolbar.
AREA 3
In this area, the software features available in the Web UI are grouped into
folders containing hyperlinks that will open window frames in Area 4.
There is also a search option in this area that can be used to search for
specific feature keywords in the Web UI to find the link to the set of features.
AREA 4
In this area, configuration and monitoring window frames are available based
on the selections made in Area 3.
AREA 1
AREA 2
AREA 3
AREA 4

D-Link DXS-1210 Series Specifications

General

Product Series	DXS-1210
Power Supply	Internal
Jumbo Frame Support	9KB
Number of Ports	12
Layer	L2+
Form Factor	Rack-mountable
Uplink Ports	10G SFP+
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
