The following illustrates the areas available in the Web UI in the Surveillance Mode:

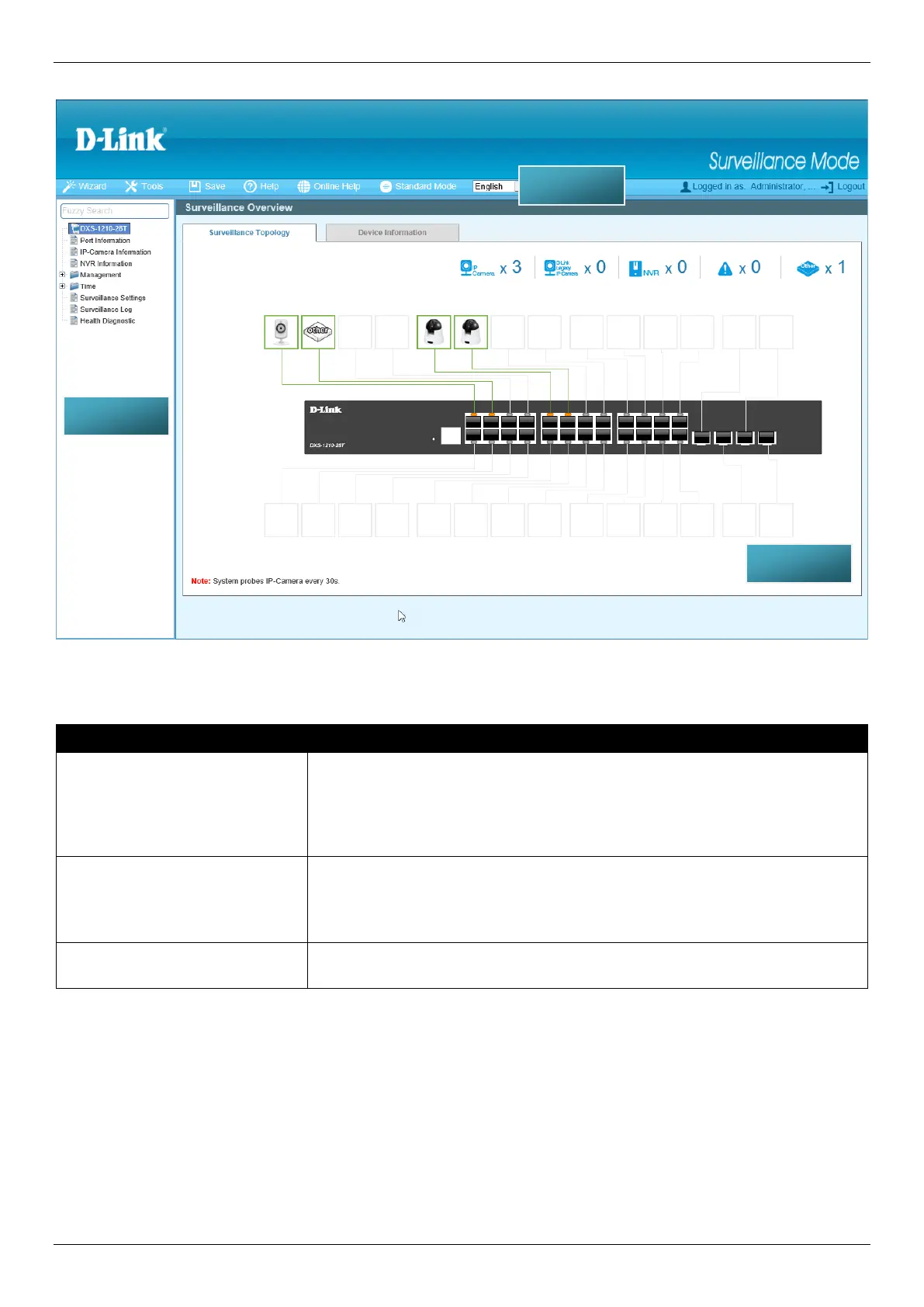

Figure 5-5 Web User Interface Areas (Surveillance Mode)
In the following table, the areas in the Web UI are described:
Area Number
Function
AREA 1
In this area, a toolbar with access to functions like Wizard, Tools, Save, Help,
Online Help, the Standard Mode, customized Language preferences, and a
Logout option is available.
The user account and IP address, currently accessing the Web UI, is displayed
on the right in this toolbar.
AREA 2
In this area, the software features available in the Web UI are grouped into
folders containing hyperlinks that will open window frames in Area 3.
There is also a search option in this area that can be used to search for
specific feature keywords in the Web UI to find the link to the set of features.
AREA 3
In this area, configuration and monitoring window frames are available based
on the selections made in Area 2.
AREA 1
AREA 2
AREA 3

D-Link DXS-1210 Series Specifications

General

Product Series	DXS-1210
Power Supply	Internal
Jumbo Frame Support	9KB
Number of Ports	12
Layer	L2+
Form Factor	Rack-mountable
Uplink Ports	10G SFP+
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
