D-Link DXS-1210 Series Hardware Installation Guide

DXS-1210 Series 10 Gigabit Ethernet Smart Managed Switch Hardware Installation Guide
26
Console Cable
A console cable is used to connect to the RJ45 console port of the Switch to access the command line interface. The
following diagram and table show the standard RJ45 to RS-232cable and pin assignments.

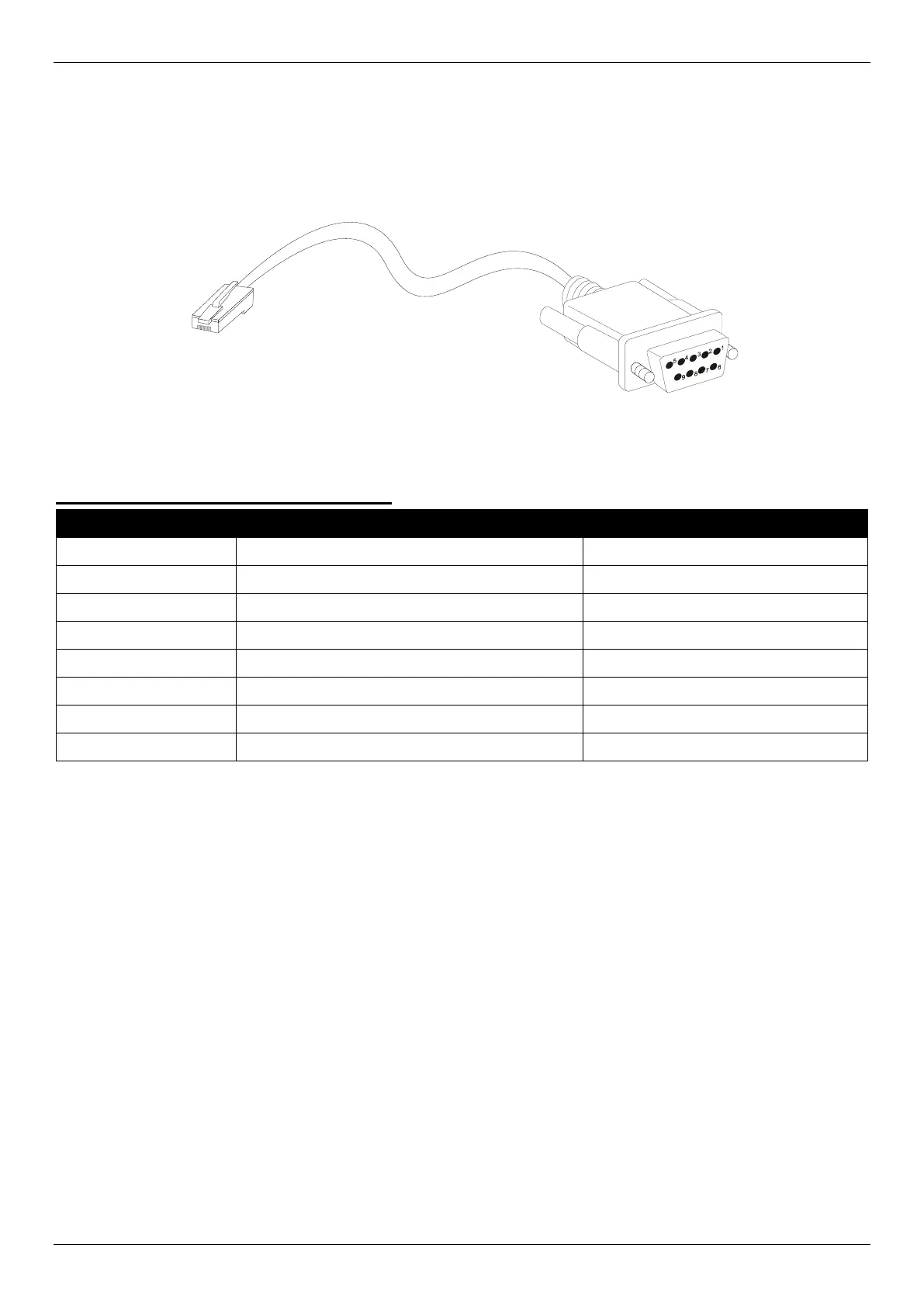

Figure B-2 Console to RJ45 Cable
RJ45 To RS-232 Cable Pin Assignment Table:
Contact
Console (DB9/RS232)
RJ45
1
Not Used
Not Used
2
RXD
Not Used
3
TXD
TXD
4
Not Used
GND
5
GND (shared)
GND
6
Not Used
RXD
7
Not Used
Not Used
8
Not Used
Not Used

D-Link DXS-1210 Series Specifications

General

Product Series	DXS-1210
Power Supply	Internal
Jumbo Frame Support	9KB
Number of Ports	12
Layer	L2+
Form Factor	Rack-mountable
Uplink Ports	10G SFP+
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
