Chapter 2: Quick Setting-up
2.1 Unpacking the ShareCenter
®
Pro DNS-1550-04
The ShareCenter
®
Pro DNS-1550-04 series box contains the following
items:
• ShareCenter
®
Pro DNS-1550-04 Unit
• Quick Installation Guide
• Screws for disk drives
• Ethernet cable
• Power cord
• CD for client utility and reference document

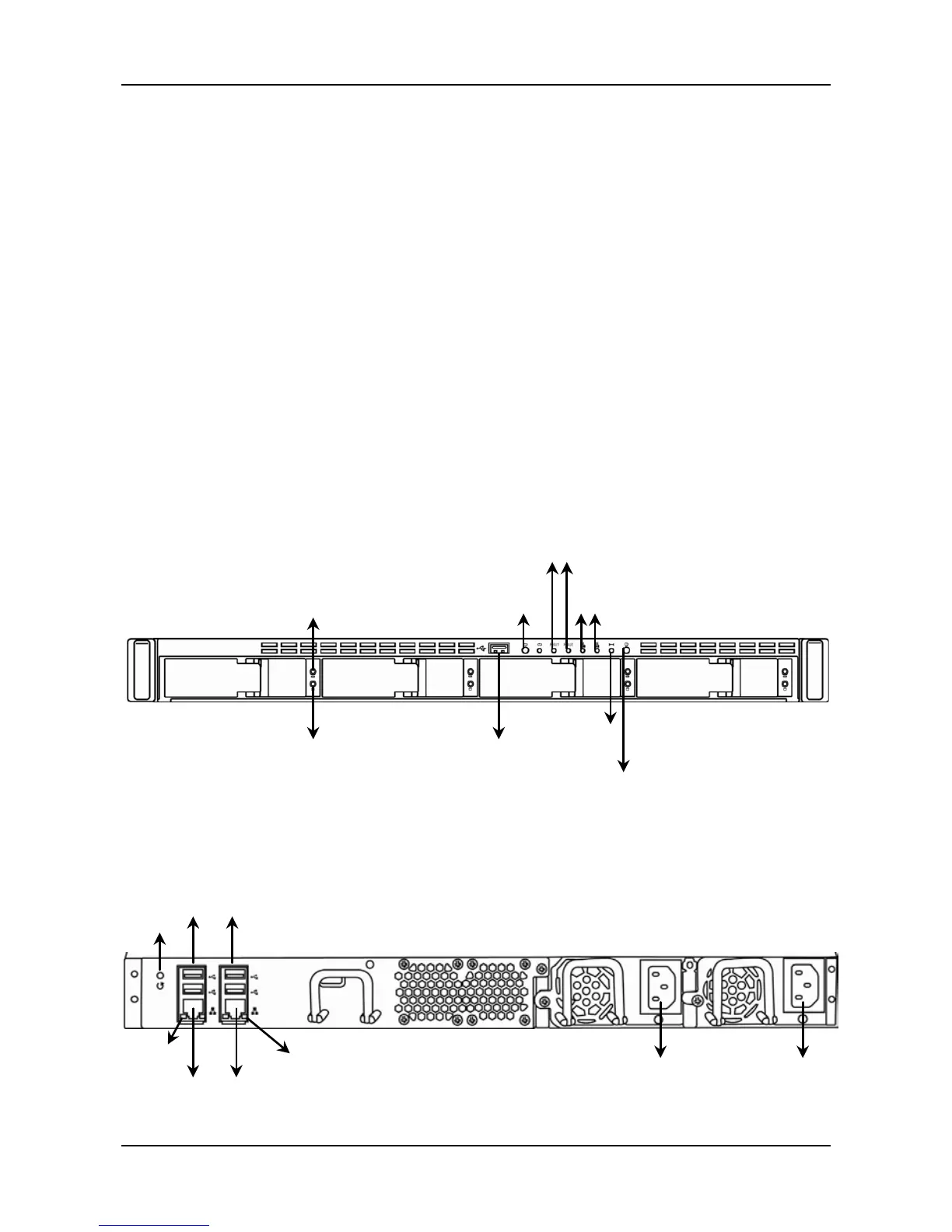

Figure 1. ShareCenter
®
Pro DNS-1550-04 Front View
Figure 2. ShareCenter
®
Pro DNS-1550-04 Rear View
USB
Connection
Drive
Status
LED
One-Touch
Backup Button
Drive
Activity
LED
Ethernet Port
Activity LEDs
PSU Status LEDs
System
Status
LED
Power
Button
RJ45 Ethernet
Network
Connections
Ethernet Port
Status LEDs
Reset
Button
Power Connections
USB
Connections
Ethernet
Port Status
LEDs
