3. Next, connect the camera to the TDA3x system, as shown below.

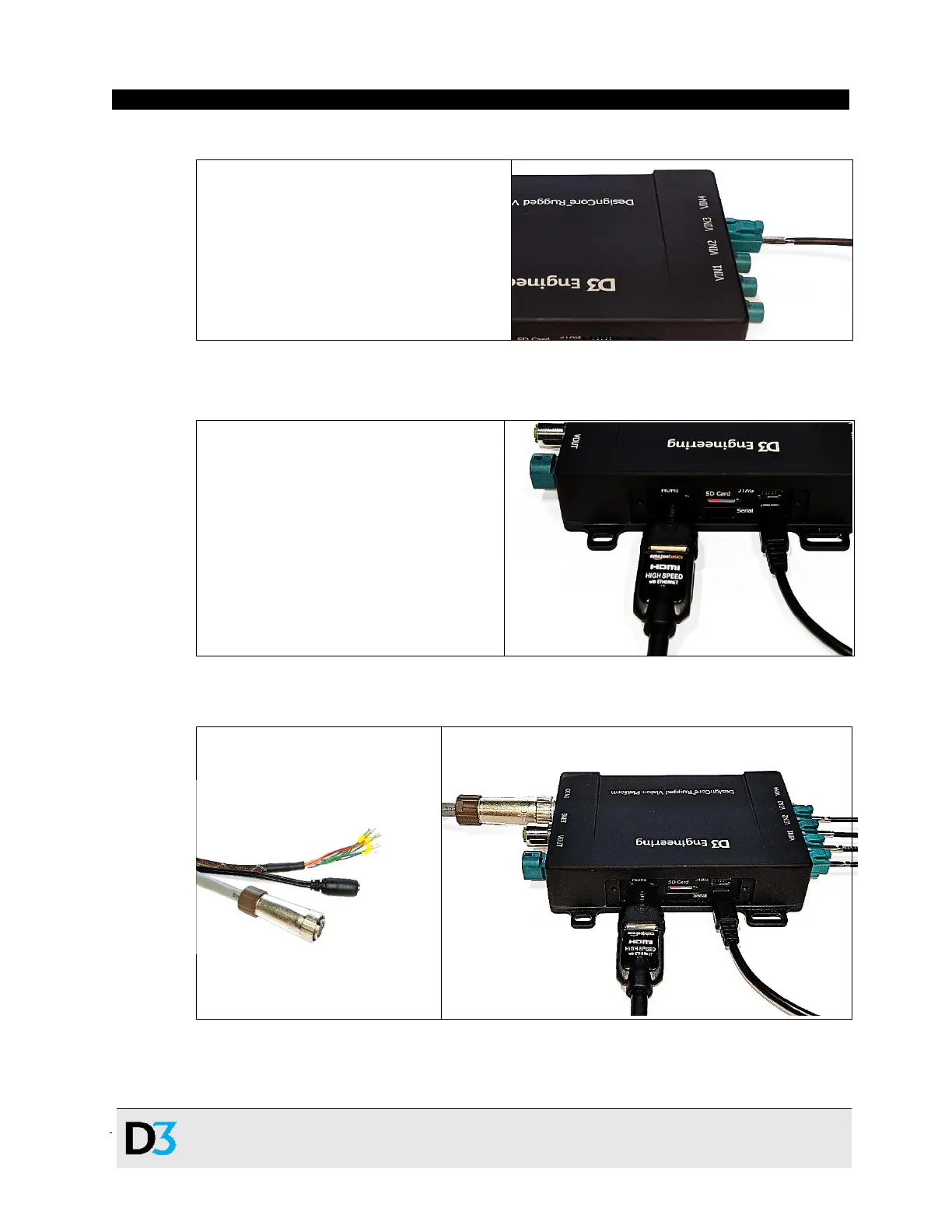

Camera connected to TDA3x module
plugged into VIN4
4. Connect an HDMI cable that is attached to a display to the TDA3x system.
HDMI Mini connected to the TDA3x
system
Note: HDMI OUT port is in a different
location on Starter Kits. Please refer to
section 4.3 ‘TDA3x Automotive Starter Kit
and DM50x Starter Kit: HDMI Capture
and Display’ for specific pictures.
5. Connect power to the TDA3x system.
TDA3x system connected to a
power supply
