DesignCore™ TDA3x Product Family ▪ Quick Start Guide
Document No. 00C-131 ▪ Version 1.0 ▪ Release Date: 1/17/2019
3. Enable the Serial Console by following the instructions in 5.0 Configuring Your PC.
Power on the TDA3x module by plugging in the power cable. Look for output on the Serial
Console as it boots; see Figure 8 (below):

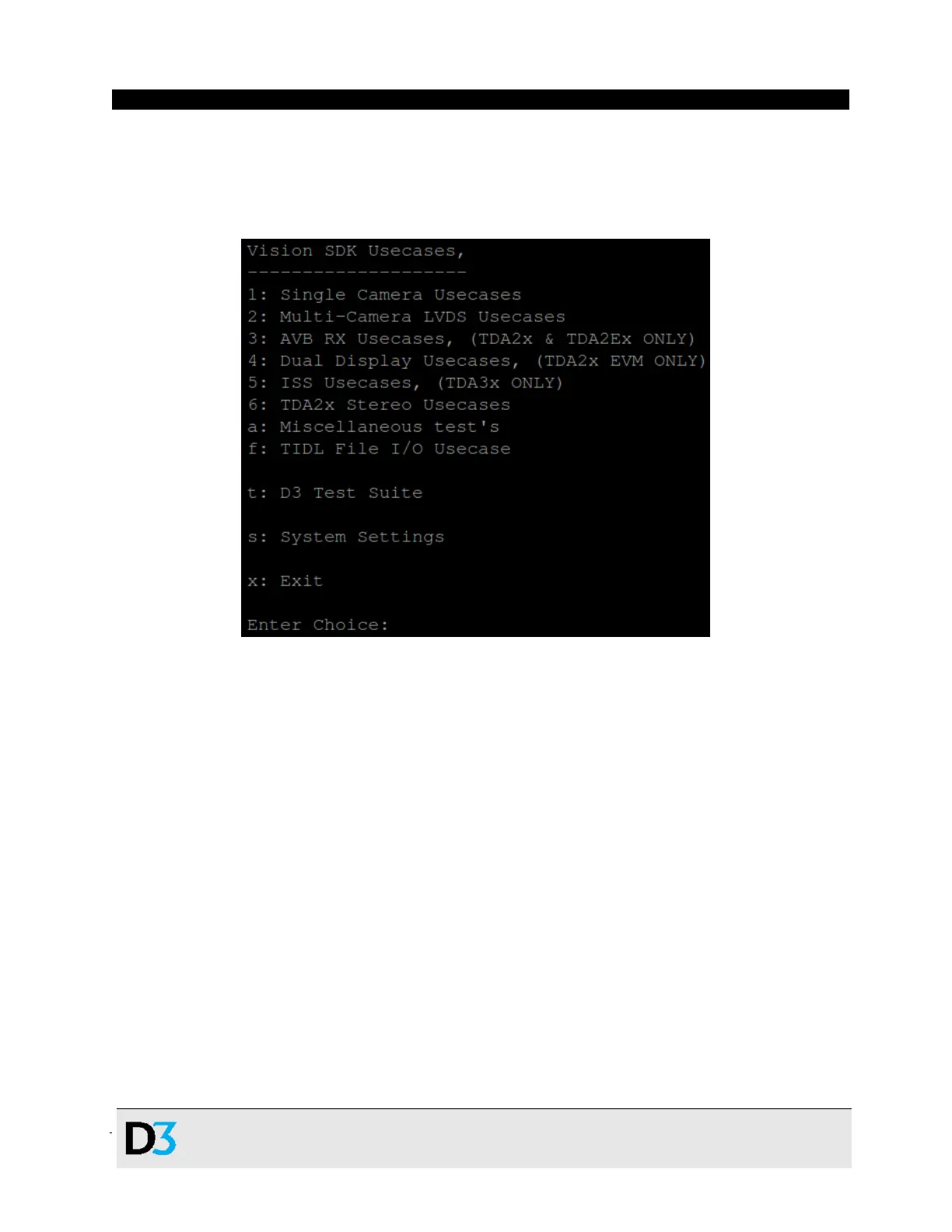

Figure 8. Serial Console output menu
4. Setting Capture Settings
Select the image sensor that you plan to use for this run. From the main menu:
a) Press S in your serial console to navigate to System Settings.
b) At System Settings, press 2 for Capture Settings.
c) In the Capture Settings menu, input the character shown that corresponds to the image
sensor you're using; for example, to use an IMX390 D3CM, choose F; see Figure 9
(below):
