4.3 TDA3x Automotive Starter Kit and DM50x Starter Kit: HDMI Capture and Display

Note: Images shown are of TDA3x Automotive Starter Kit.

1. Connect the TDA3x system to a computer to access the debug Serial console. Connect

the provided USB-USB Micro B cable to the serial port, as shown below.

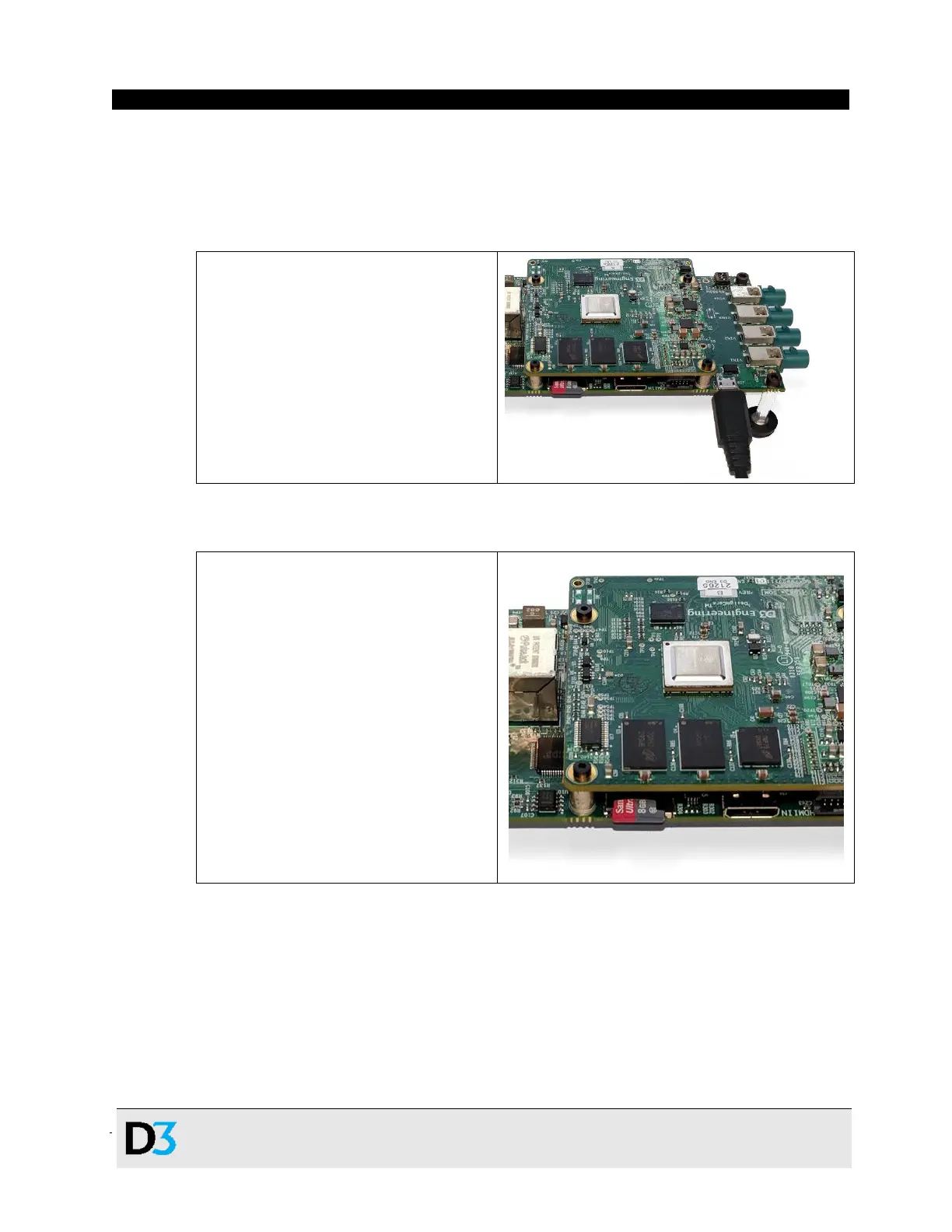

USB Micro B cable connected to the

Serial console debug port

2. Next, insert the provided Micro SD Card into the marked SD Card slot on the TDA3x

system, as shown below. The device will not boot without this card inserted.

Micro SD Card inserted into TDA3x

system

3. Connect an HDMI cable that is attached to a display to the TDA3x system in port labeled

HDMI OUT.
