DesignCore™ TDA3x Product Family ▪ Quick Start Guide
Document No. 00C-131 ▪ Version 1.0 ▪ Release Date: 1/17/2019
11. Finally, connect the main power and Ethernet connectors to the RVP-TDA3x enclosure.
The main connector provides power as well as breakouts for various busses. To get the
system up and running, apply power. Use the other power supply provided with the
ADAS Development Kit and the provided set of power cables to connect the RVP-TDA3x
module to 12V DC, as shown below.

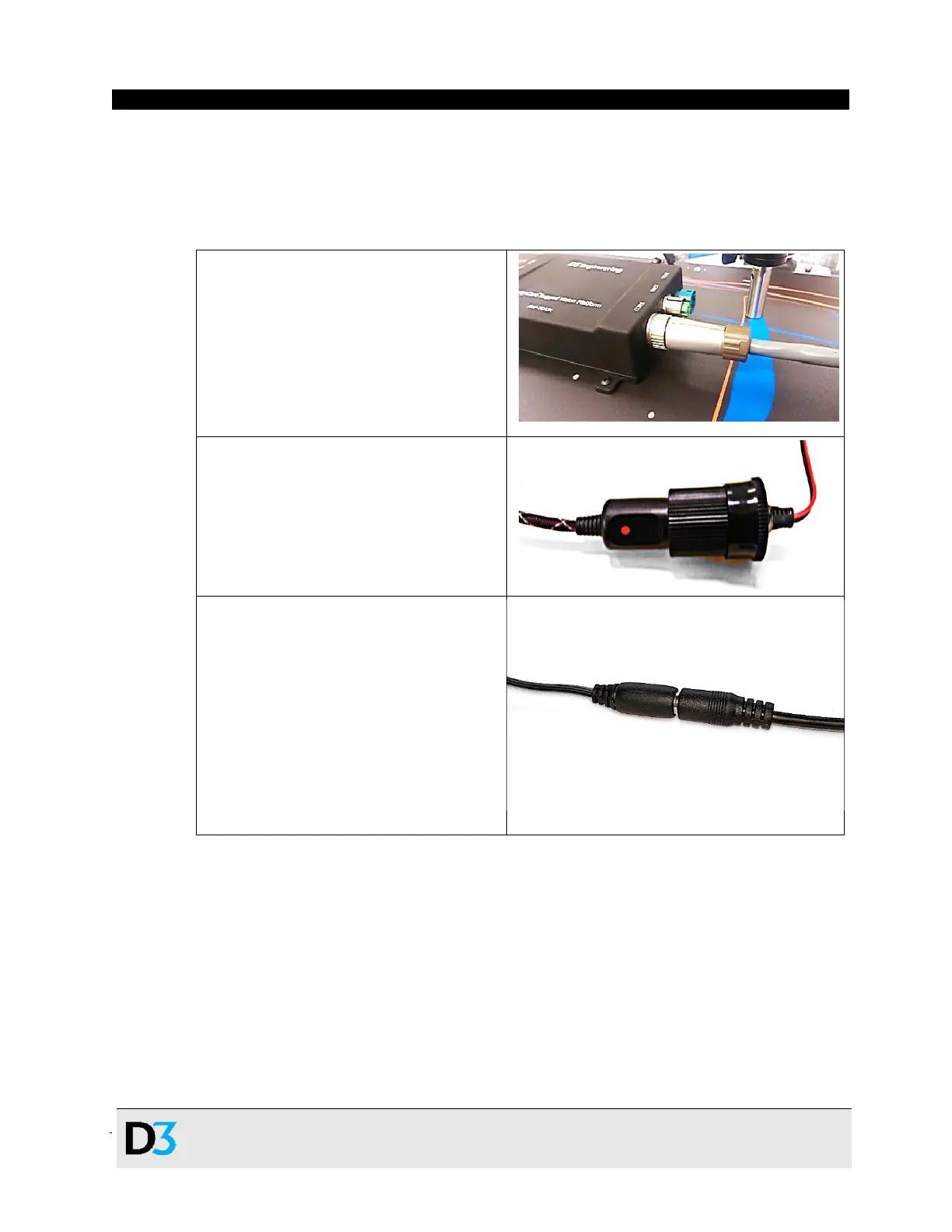

a) Power connector end of 1000244
mated to RVP-TDA3x
b) Car adapter end of main power-I/O
cable mated to car adapter cable,
1000321
c) Car adapter cable mated to power
supply output, 1000324
