seCTion 1 - ProduCT familiarizaTion

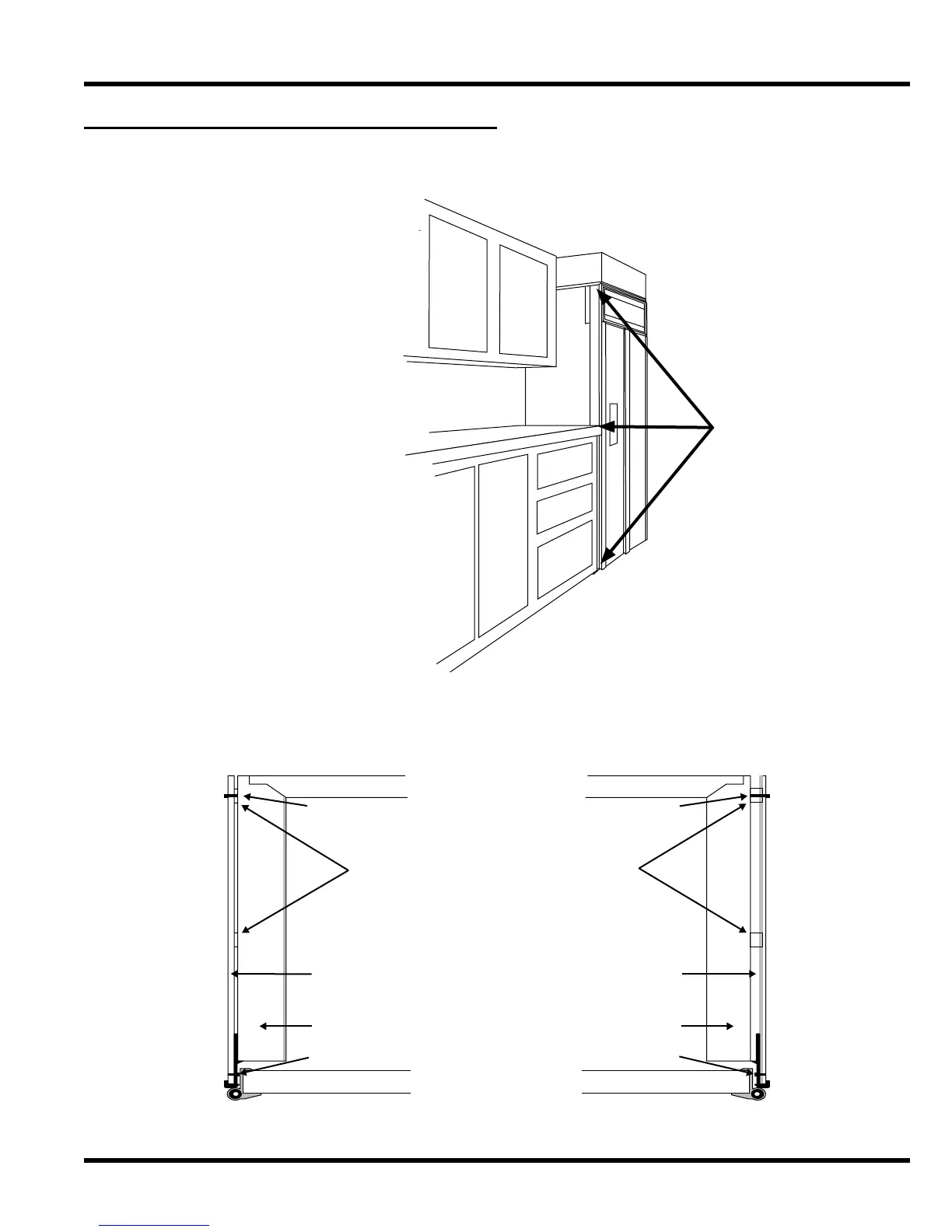

After the Install, the Finishing Touches (continued)
1/4" side panel fitted up to
the cabinet trim (top view)
on Freezer side.
1/4" side panel fitted up to
the cabinet trim (top view)
on Fresh Food side.
Backside of UnitBackside of Unit
#8-32 1/2"
Screw
1/2" Battens on
side of machine
compartment
(1/8" below the
machine compartment)
1/4" Side Panel
Fresh Food Side of Unit
Pan Head Screw
#8-32 1/2"
Screw
1/8" Battens
1/4" Side Panel
Freezer Side of Unit
Pan Head Screw
Door
Door
Side panels must be screwed
into place.
Spacers need to be added to
support the panels for a secure
mounting.
•
•
Drill 3 holes through
vertical frame into
cabinetry. Where
applicable. (approx.
location)
