DISCRIPTION OF OPERATING SYSTEM 4-11
628O415A 628O416A

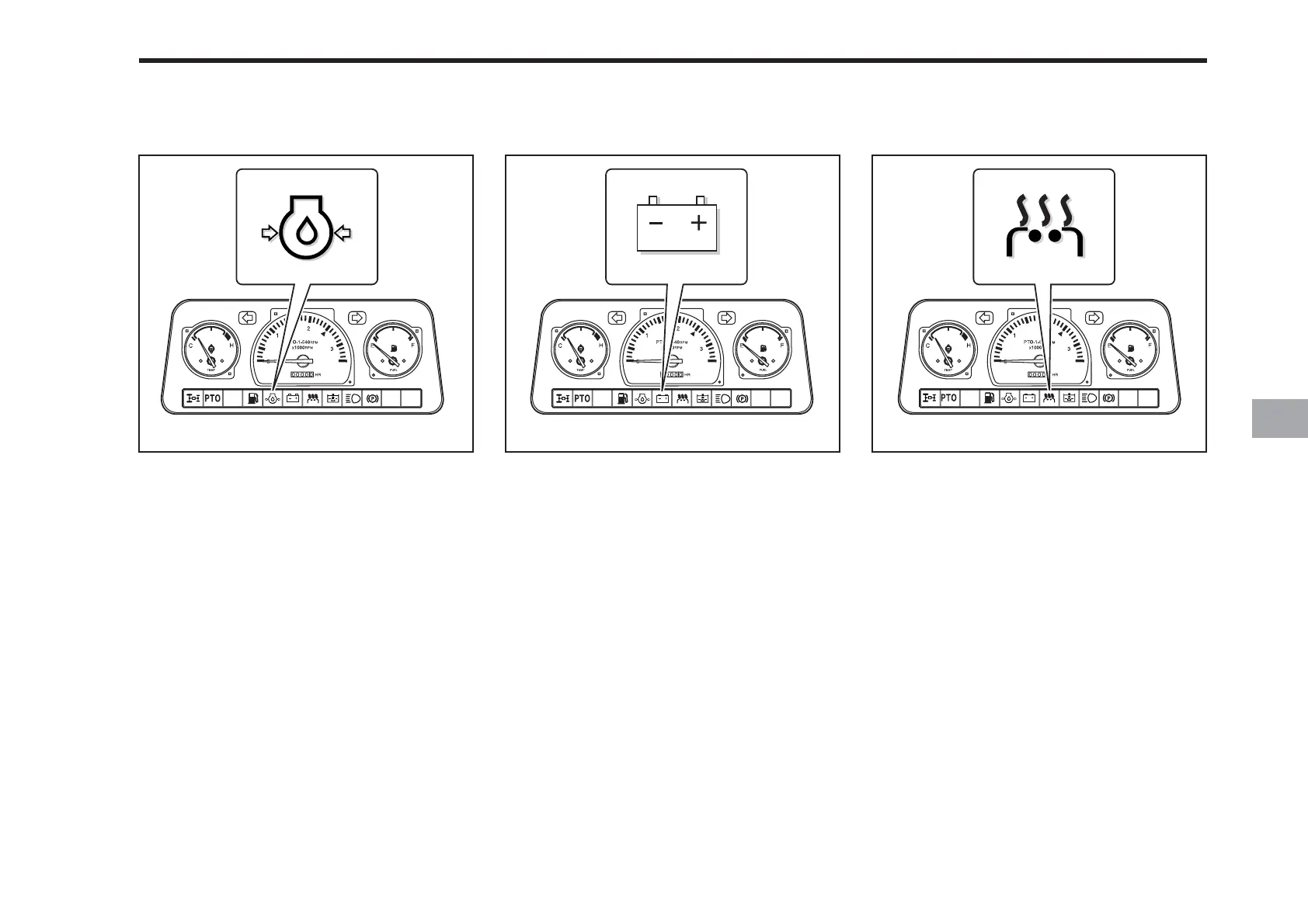

The battery charge lamp will glow red
when the key switch is turned on and
should go out as the engine starts. If the
lamp continues to glow above idle speeds,
the battery is being discharged indicat-
ing that the electrical system should be
checked.
BATTERY CHARGE WARNING LAMP
The oil pressure lamp glows red when
the key switch is turned on; indicating
that the system is functioning properly.
The light should go out after engine
starts. If the light remains on, stop the
engine and determine the cause.
ENGINE OIL PRESSURE WARNING
LAMP
628O422A
When the key switch is turned to the right
(preheat position), the glow plug indica-
tor becomes amber. This indicates that
preheating of the combustion chamber is
taking place.
GLOW PLUG INDICATOR
