4-14 DK65/75/80/90
628O423A

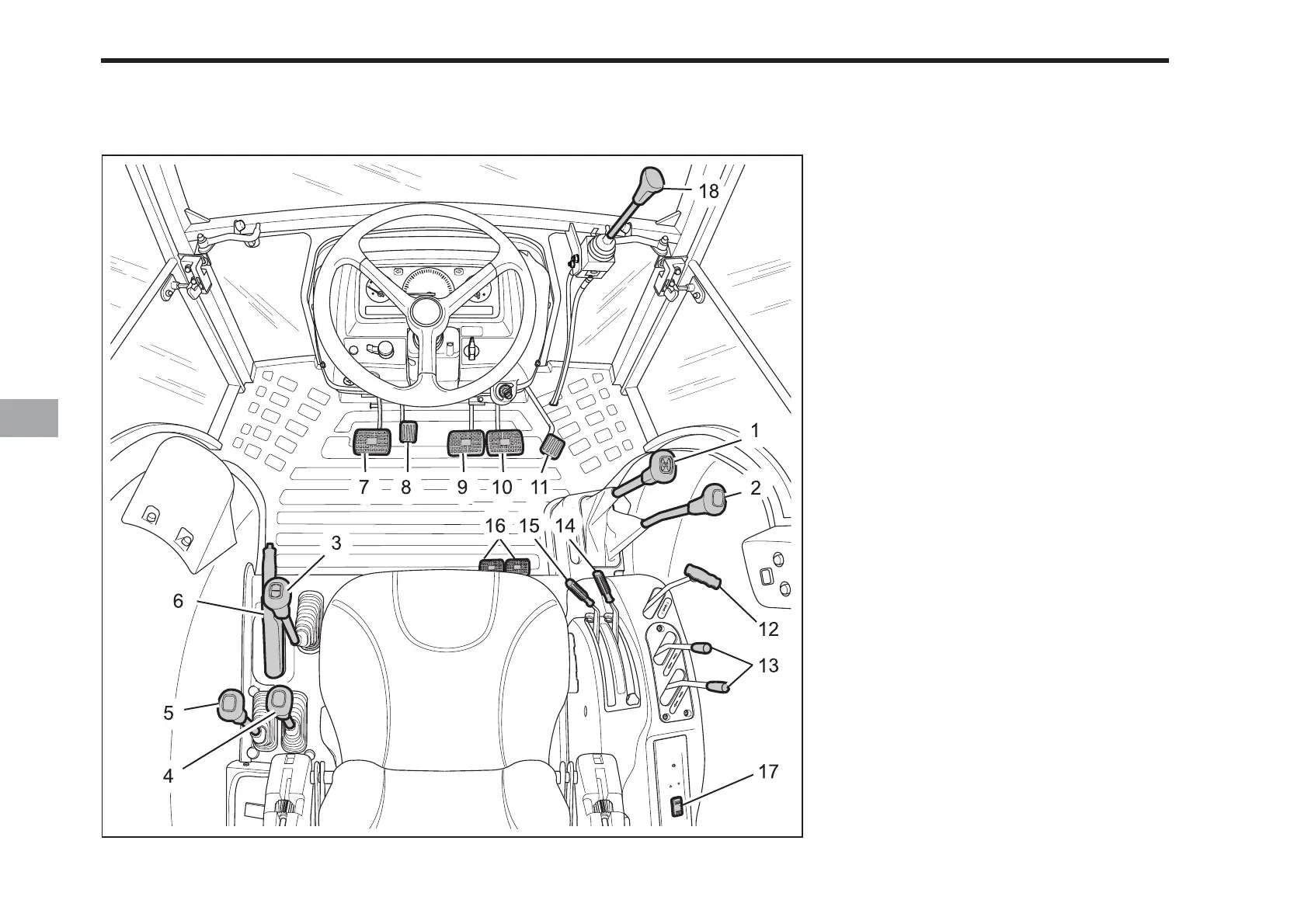

(1) Main Shift Lever
(2) Hi-Lo Shift Lever
(3) Shuttle Shift Lever
(4) Front Wheel Drive Lever
(5) PTO Speed Change Lever
(6) Parking Brake Lever
(7) Clutch Pedal
(8) Steering Wheel Tilt Lever
(9) Brake Pedal(LH)
(10) Brake Pedal(RH)
(11) Foot Throttle
(12) Hand Throttle Lever
(13) Hydraulic Accessory Controls
(14) Lift Position Control Lever
(15) Draft Control Lever
(16) Differential lock pedal
(17) Lift Control Switch
(18) Joystick Control - Hydraulics
DK75/80/90
