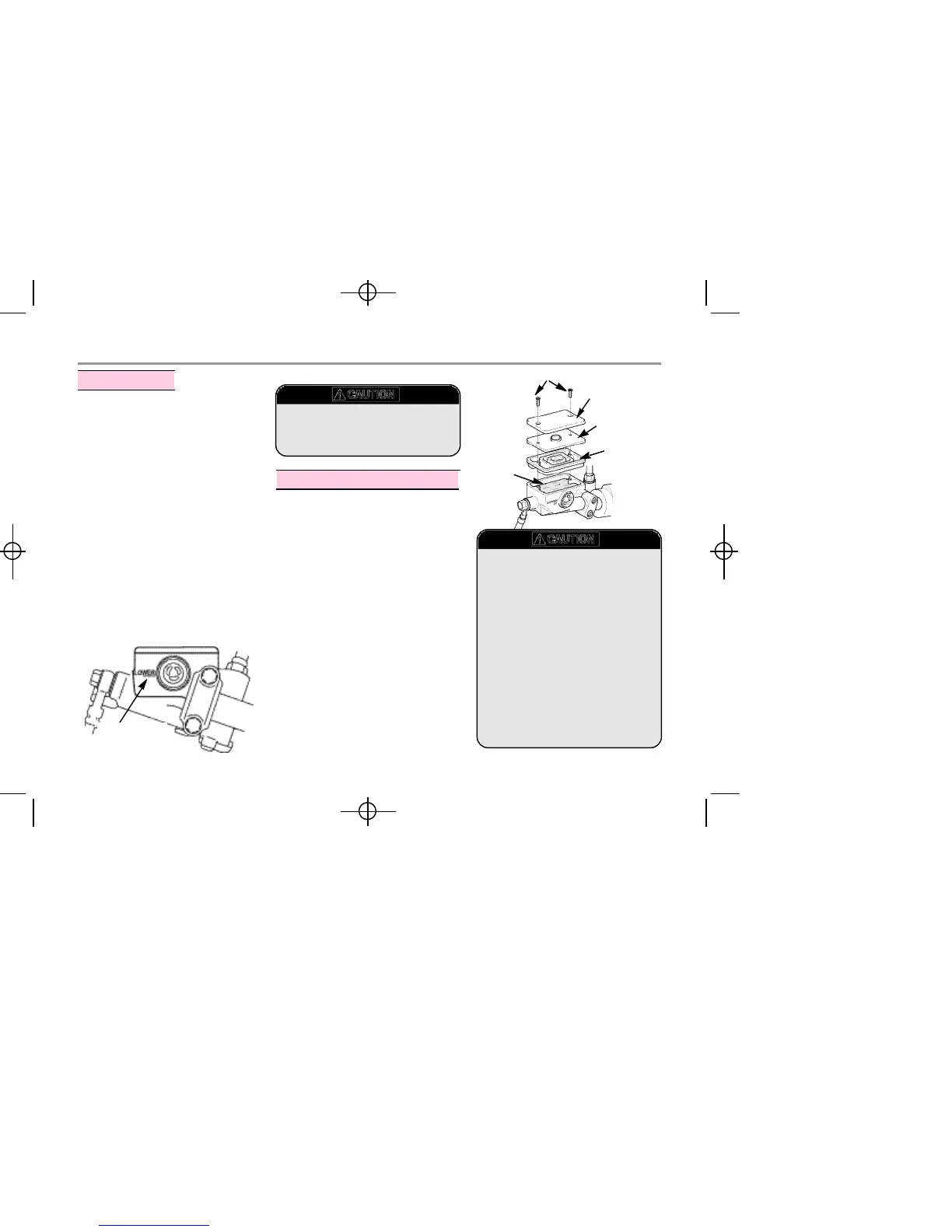

22
●Move steering wheel and set the top of
reserve tank level.
●Clean dust and other foreign matter
from around master cylinder and take
caution not to allow foreign matter to
fall inside master cylinder
●Open cap screw and remove diaphragm.
●Replenish recommended brake fluid to
upper level inside master cyl inder.
Tighten cap accurately, paying attention
to the direction of diaphragm
assembling, and avoid ingress of foreign
matter.
RECOMMENDED BRAKE IS DOT 3~4
<BRAKE OIL INSPECTION>
Put main stand in upright position on a
flat ground and operate steel wheel, and
check fluid when the top of master
cylinder cap is level.
Check fluid level to see if it is below
lower level.
If fluid significantly is in low level, it may
indicate fluid leakage on brake system. If
this happens, check fluid leaks or brake
system. If this happens, check fluid leaks
or damage on system and inspect joints
and clamps for looseness.
In addition, check hose and pipe
protective part to sec if they make contact
with other parts when you make left or
right turn due to vibration during travel.
FRONT WHEEL
BRAKE CHECK
REPLENISHING BRAKE OIL
●Brake is an important part
which protects your life. Make
sure to inspect brake prior to
daily use.
S󰼿C󰼿R󰼿E󰼿W
M A S TE R 󰼿C Y L I ND E R 󰼿C A P
D󰼿I󰼿A󰼿P󰼿H󰼿R󰼿A󰼿G󰼿M
P󰼿L󰼿A󰼿T󰼿E
D󰼿I󰼿A󰼿P󰼿H󰼿R󰼿A󰼿G󰼿M
U P P ER󰼿
L󰼿E󰼿V󰼿E󰼿L
●Do not fill brake fluid above
upper level as it may cause
brake fluid to leak outside.
●Exerci se full cauti on, when
replenishing brake fluid, not to
allow dust or water to mix
inside master cylinder.
●If the amount of brake fluid
decreases considerably, it is an
indication of brake system
trouble.
●To prevent occurrence of
chemical change, do not use
brake fl uid of different
manufacturer.
●Do not let brake fluid contact
vehicle parts because it causes
damage to painted parts.
L O W E R 󰼿 L E V E L
