DAELIM VS125 User Manual

28
ENGINE OIL LEVEL CHECKDRIVE CHAIN INSPECTION
●Put vehicle in upright position on flat
ground and check engine oil level and
degree of pollution.
●Run engine idle for approximately 2~3
minutes on flat ground and stop engine.
After approximately 2~3 minutes, put
vehicle in upright position and check
engine oil and verify the oil level is
between the upper and lower level of oil
level gauge.
●Insert oil level gauge, without locking,
and check oil level after removing oil
gauge.
●If the oil level is near lower level,
replenish oil to upper level.
●Put vehicle in upright position on main
stand and move the center of front and
rear sprocket up and down with hands to
determine if the chain free play is within
prescribed range.
optima free play : 15~25mm
●If free play is great, loosen axle and put
the left and right lock nuts, and make
necessary adjustment by turning adjuster
nut.

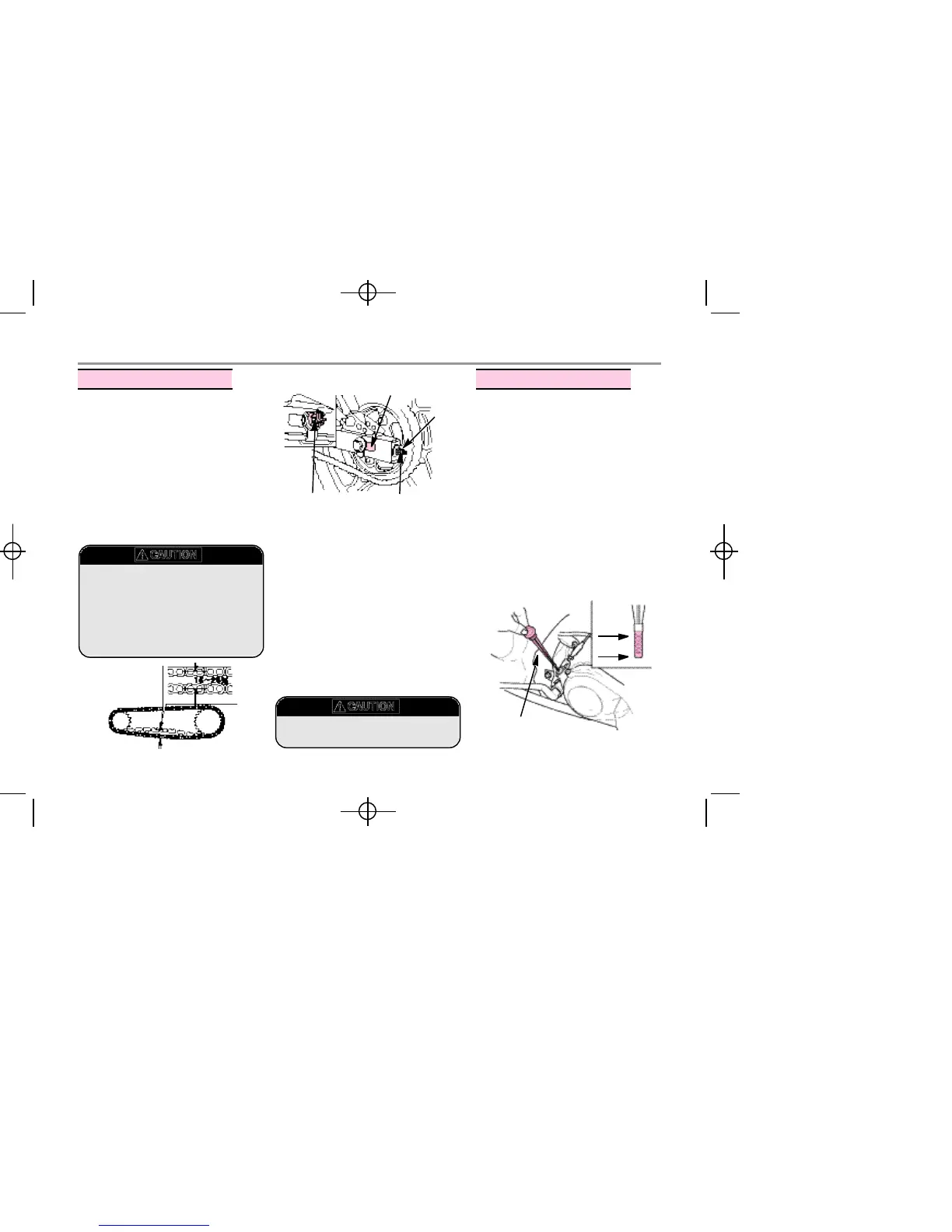

<DRIVE CHAIN INSPECTION>
●Check drive chain tension and spocket wear
and damage. If roller is damaged or pin is
loose,replace chain.
●If sprocket is worn or damaged,replace.Check
chain to determain if it is dry,or if it is smeared
with dust, waster msterial, soil or sand.Clean
dust and other foreign matter, and apply
lubricants on clean chain.
C HA I N 󰼿 AD J US T ER
A XL E 󰼿 N U T AD J US T ER 󰼿 NU T
L󰼿O󰼿C󰼿K
N󰼿U󰼿T
U󰼿P󰼿P󰼿E󰼿R
L󰼿E󰼿V󰼿E󰼿L
L󰼿O󰼿W󰼿E󰼿R
L󰼿E󰼿V󰼿E󰼿L
O I L󰼿LEVEL󰼿 G AU G E
●After adjusting chain, check the
rear brake pedal oeration.
● Make sure the right and left chain adjuster
graduation are set in the same position.
● Tighten an axle nut.
● Tightening torque :7.0Kg-m
● Tighten an adjuster nut,and
tighten lock nut.
