DAELIM VS125 - Side Stand

37

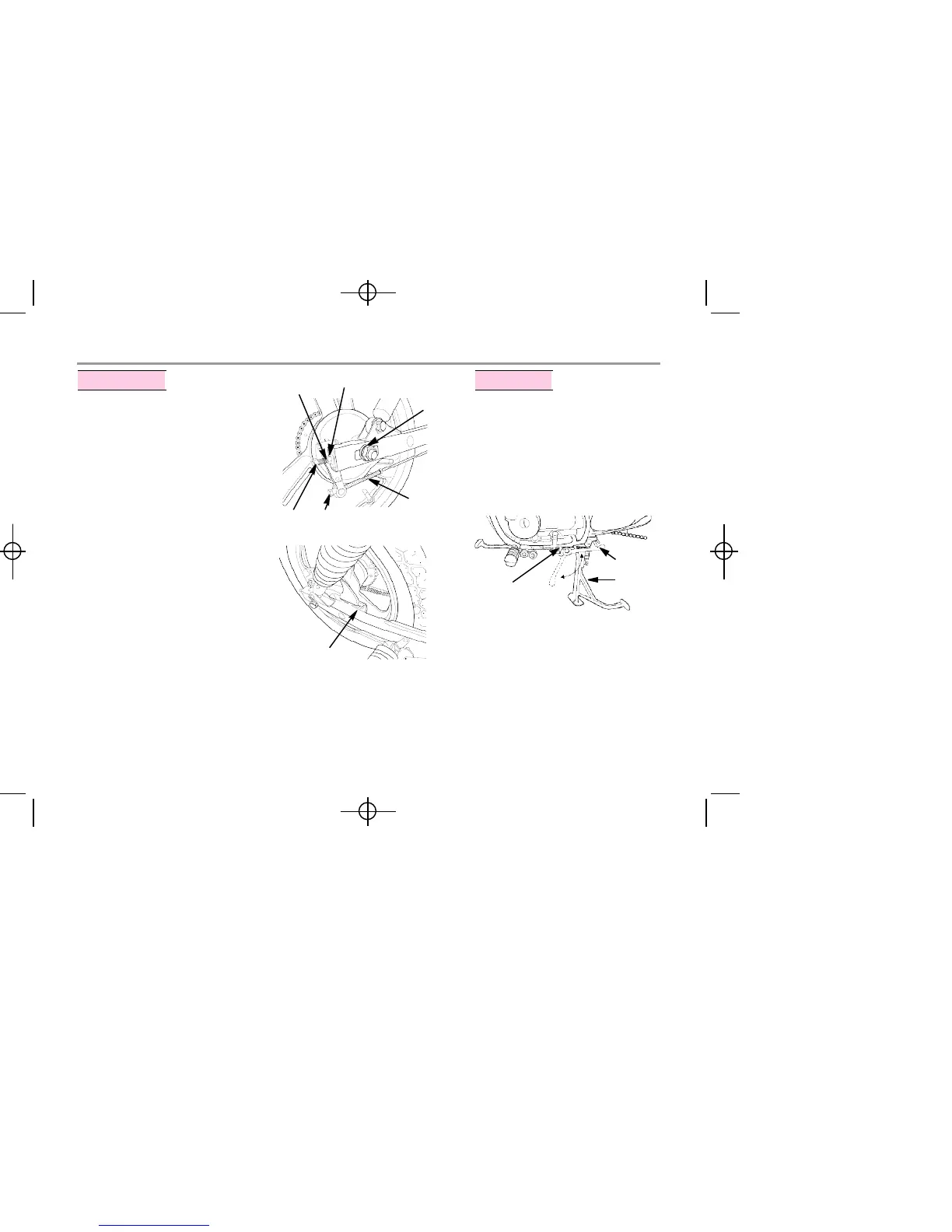

SIDE STANDREAR WHEEL
●Erect main stand and place vehicle in
upright position on level ground.
● Check s ide stand spring for signs of
damage and lubrication state on joints.
●If the side stand put-down, engine
will stop directly.
[REAR WHEEL REMOVAL]
① Set vehicle on main stand in upright
position on level ground.
② Unscrew the lef and right side lock nuts
and loosen adjuster.
③ Loosen the rear brake joint nut and
remove breake rod from the brake arm.
④ Unscrew axle nut and separate wheel
axle and rear wheel.
⑤ Assemble in the opposite order of
disassembling. When assembling,
match the depressed part of the brake
panel to the projected part of the right
side swing arm.
REAR AXLE NUT TORQUE : 7.0kg - m
After assemble, adjuster the rear brake and
drive chain free play.(10~20mm)
ADJUSTER ADJUSTER󰼿NUT
LOCK󰼿NUT
AXLE󰼿NUT
BRA K E󰼿JO I N T󰼿 N UT
BRAKE󰼿ROD
SWING󰼿ARM
S i de 󰼿 s t a n d
S i de 󰼿 s t and 󰼿 s w i t ch
M a i n 󰼿 s t a n d
