SERVICE AND VEHICLE CARE 6–33
S3W6481A
vv
vv
v CAUTION
• Do not use tools that can conduct
electricity when removing a blown
fuse. Use only provided fuse puller.
Using conductor such as metal can
cause a short circuit, damaging the
electrical system or start a fire. Seri-
ous injury could occur.
4. Determine what caused the fuse to
blow, and repair that problem.
5. Install a new fuse of the rating speci-
fied in this manual. (See fuse block
layout later in this section)
vv
vv
v CAUTION
Using a fuse substitute or a fuse of
the wrong type or rating can dam-
age the electrical system or even start
a fire.
• Use only specified fuse and do not
use a different type or rating other
than specified in this manual.
Such use can result in personal inju-
ries or damage to your vehicle or
other property.
NOTE
Three spare fuses (10A, 15A and
20A) are provided in the fuse and
relay block in the engine compart-
ment.

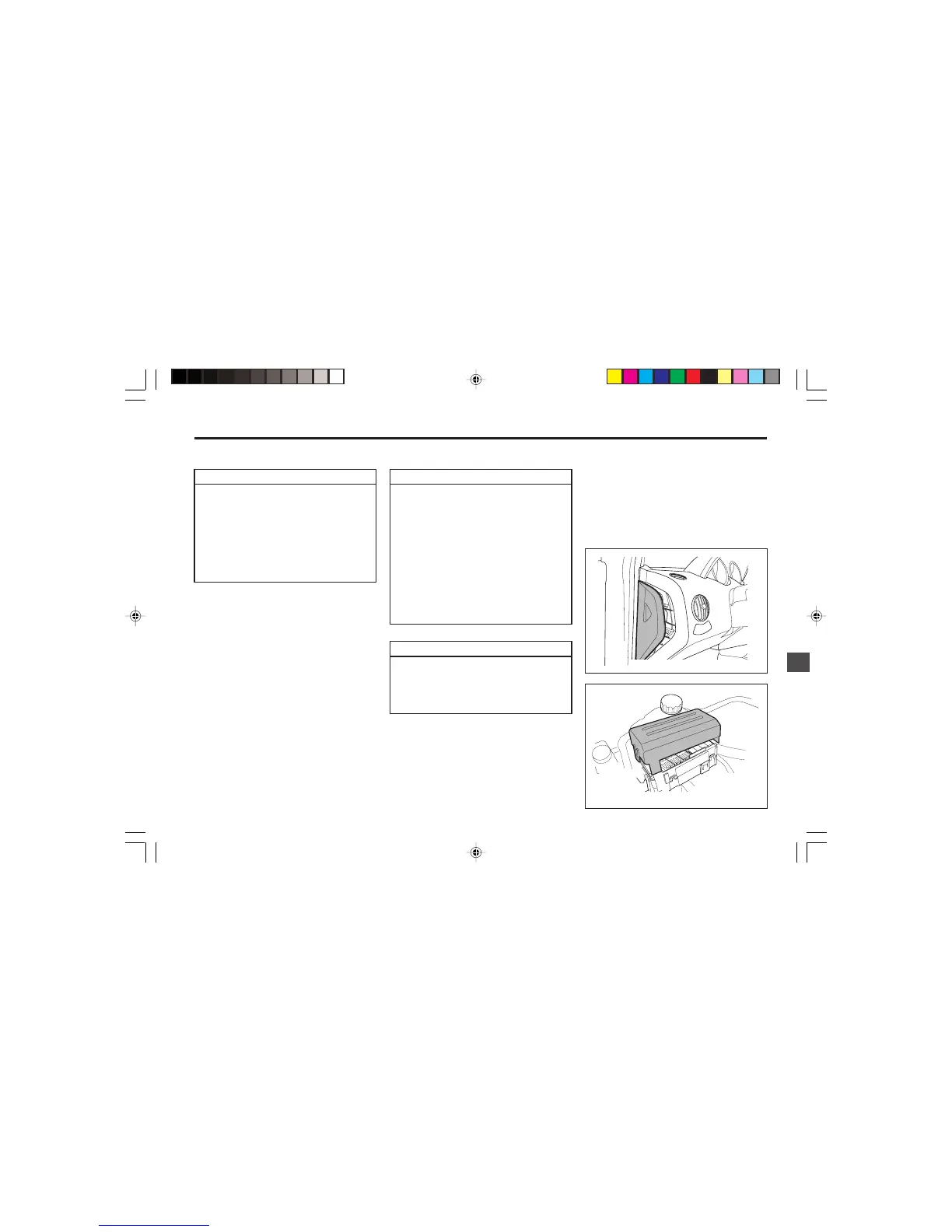

FUSE BLOCK
• Interior fuse block is located in the
left side of the instrument panel.
• Engine room fuse block is next to the
coolant reservoir.
Interior fuse block
