Local Configurations 149

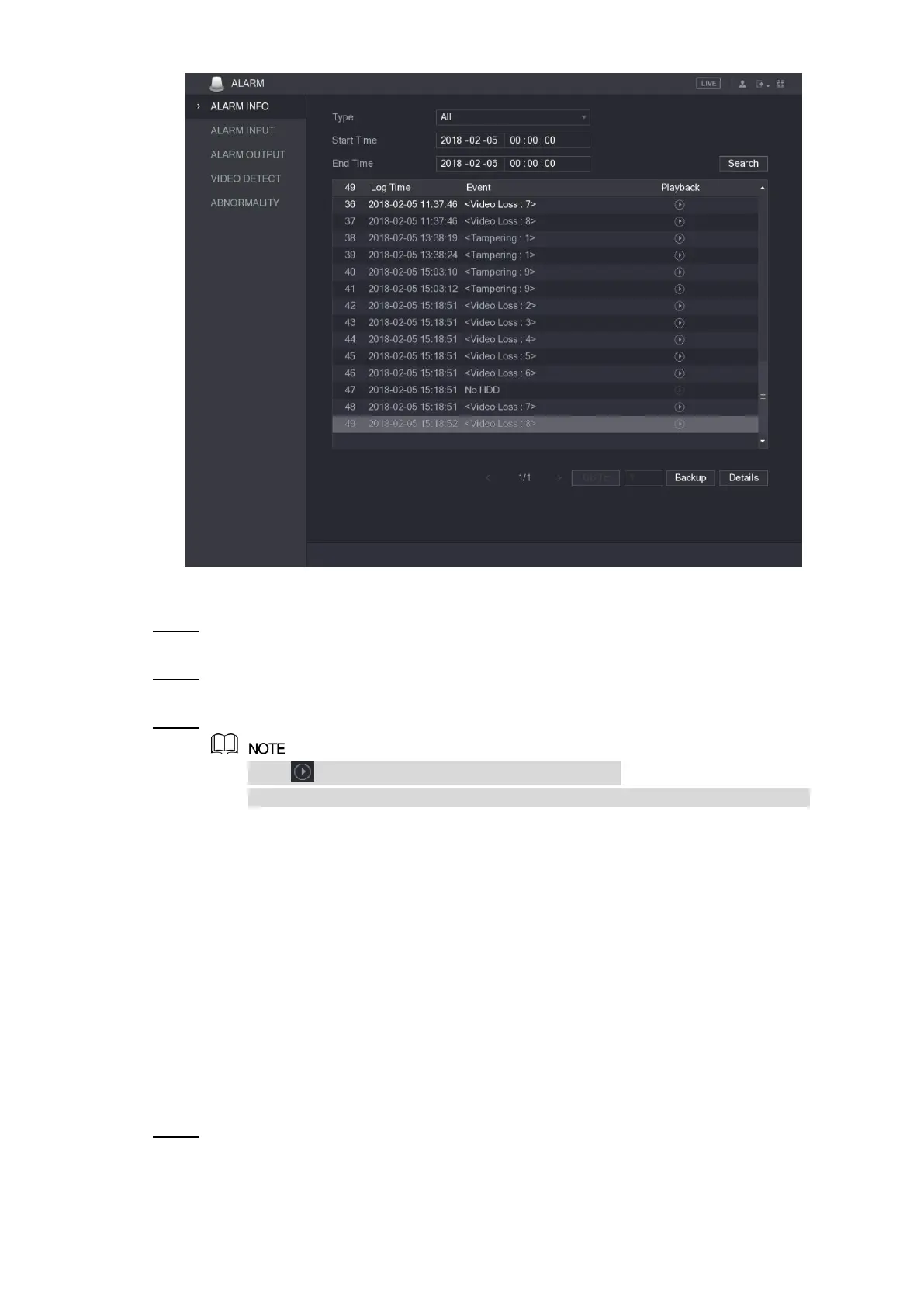

Figure 5-117
In the Type list, select the event type; In the Start Time box and End Time box, enter Step 2
the specific time.
Click Search.
Step 3
The search results are displayed.
Click Backup to back up the search results into the external storage device. Step 4
Click to play the recorded video of alarm event.
Select an event and click Details to view the detailed information of the event.
5.10.2 Alarm Input Settings
Connect the alarm input and output ports by referring to "4.3 Connecting to Alarm Input and
Output." You can configure the alarm settings for each channel individually or apply the settings
to all channels and then save the settings.
5.10.2.1 Configuring Local Alarms
You can connect the alarm device to the alarm input port of the Device. When the alarm is
activated on the alarm device, the alarm information will be uploaded to the Device, and then
the Device outputs the local alarms in the way that you configure in this section.
Select Main Menu > ALARM > ALARM INPUT > Local. Step 1
The Local interface is displayed. See Figure 5-118.
