The Grand Tour 31
No.
Port Name
Function
9
Power button
Turns on/off the Device.
10
Power input port
Inputs power.
11
Loop out
Outputs the video signal of the corresponding video input port.
12
Video input port
Connect to analog camera to input video signal.
13
Network port
Connects to Ethernet port.
14
USB port
Connects to the external devices such as keyboard, mouse, and
USB storage device.
15
eSATA port
External SATA port which connects to the device with SATA port.
Perform the jumper configuration when connecting HDD.
16
HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Please note when the HDMI output resolution is 4K, the VGA
output stops.
17
GND
Ground.
Table 3-21

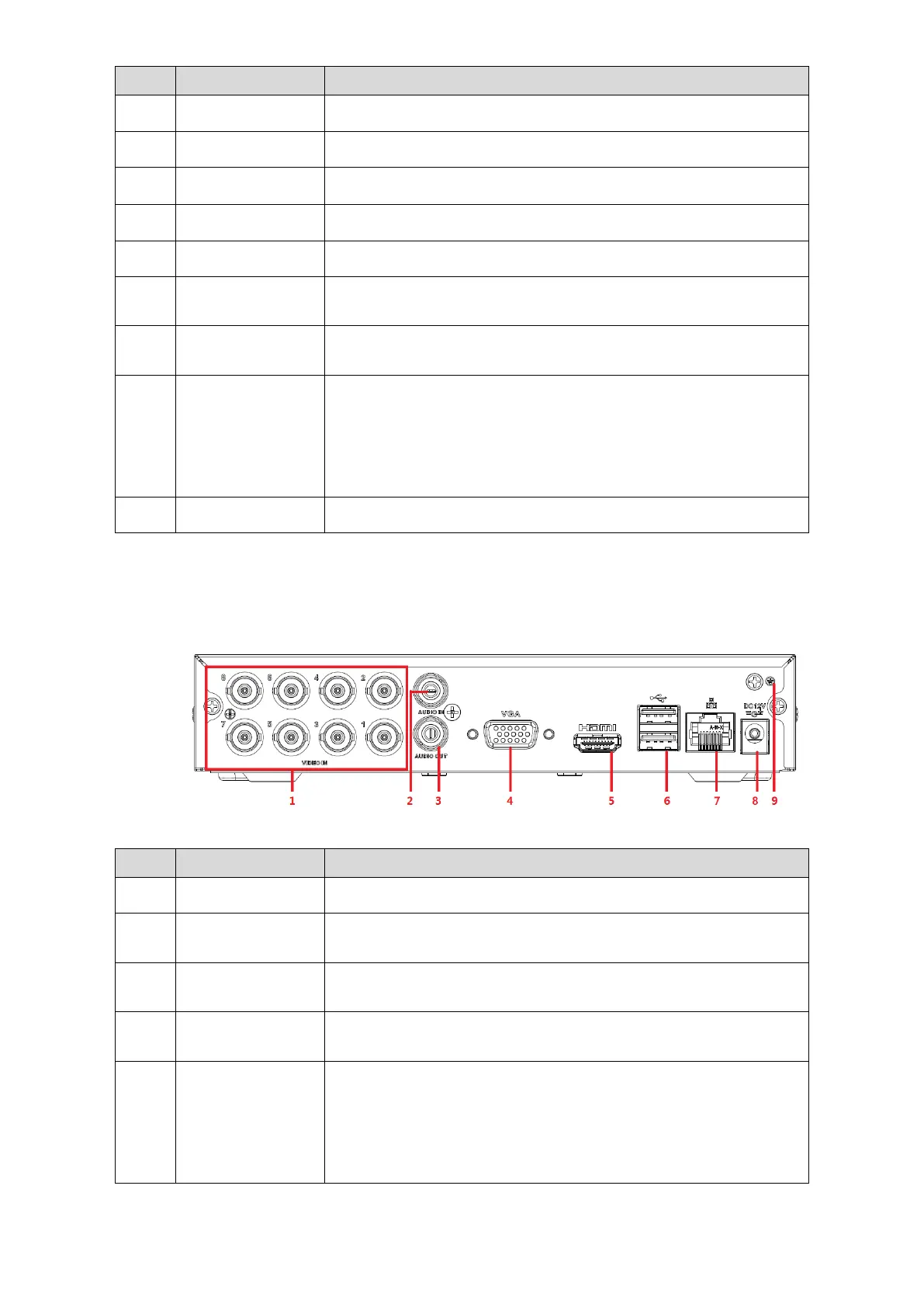

3.2.12 DH-XVR1B04/DH-XVR1B04H/DH-XVR1B08/DH-XVR1B08H
Figure 3-23
No.
Port Name
Function
1
Video input port
Connect to analog camera to input video signal.
2
Audio input port
Receives the analog audio signal output from the devices such
as microphone.
3
Audio output port
Outputs the analog audio signal to the devices such as the sound
box.
4
VGA video output
Outputs analog video signal. It can connect to the monitor to view
analog video.
5
HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Please note when the HDMI output resolution is 4K, the VGA
output stops.
