The Grand Tour 22
3.2.6 DH-XVR5108H-4KL-X-8P/DH-XVR5208AN-4KL-X-8P/DH-XV
R5216AN-4KL-X-16P

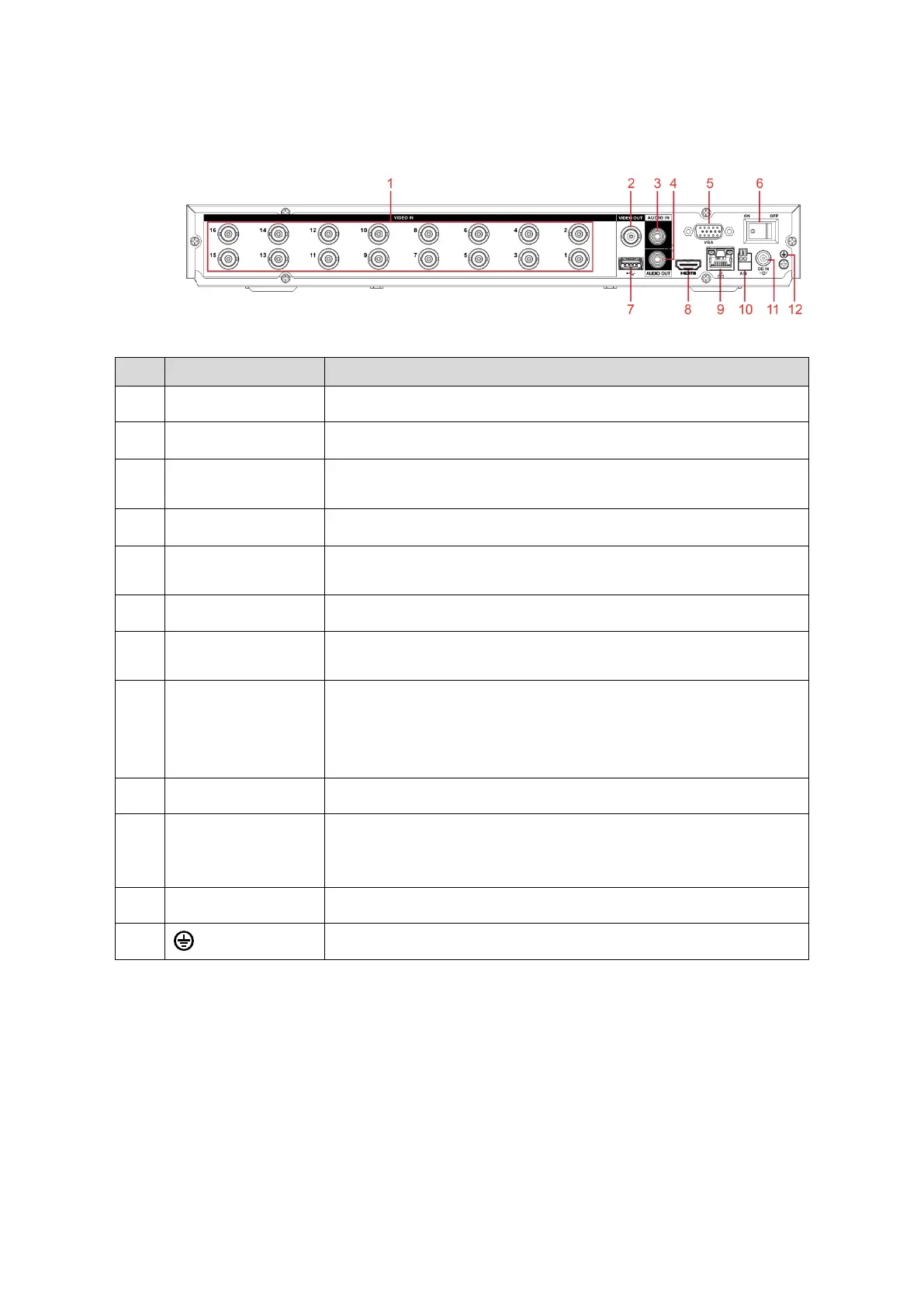

Figure 3-17
No.
Port Name
Function
1
Video input port
Connects to analog camera to input video signal.
2
Video output port
Connects to video output devices such as TV.
3
Audio input port
Receives audio signal output from the devices such as
microphone.
4
Audio output port
Outputs audio signal to the devices such as the sound box.
5
VGA port
Outputs analog video data to the connected display with VGA
port.
6
Power button
Turns on/off the DVR.
7
USB port
Connects to the external devices such as keyboard, mouse, and
USB storage device.
8
HDMI port
High definition audio and video signal output port.
The port outputs the uncompressed high definition video and
multi-channel audio data to the connected display with HDMI
port.
9
Network port
Connects to Ethernet port.
10
RS-485
communication port
Connects to the control devices such as speed dome PTZ.
RS-485_A port is connected by the cable A and RS-485_B is
connected to the cable B.
11
Power input port
Inputs power.
12
Ground terminal.
Table 3-16
