The Grand Tour 10
3 The Grand Tour
This chapter introduces various components of the Device, remote control and mouse
operations.
3.1 Front Panel
3.1.1 DH-XVR5108C-X/DH-XVR5104C-4KL-X/DH-XVR5104C-X/
DH-XVR4104C-X/DH-XVR4108C-X/DH-XVR5104C-X1/
DH-XVR4104C-X1/DH-XVR4108C-X1

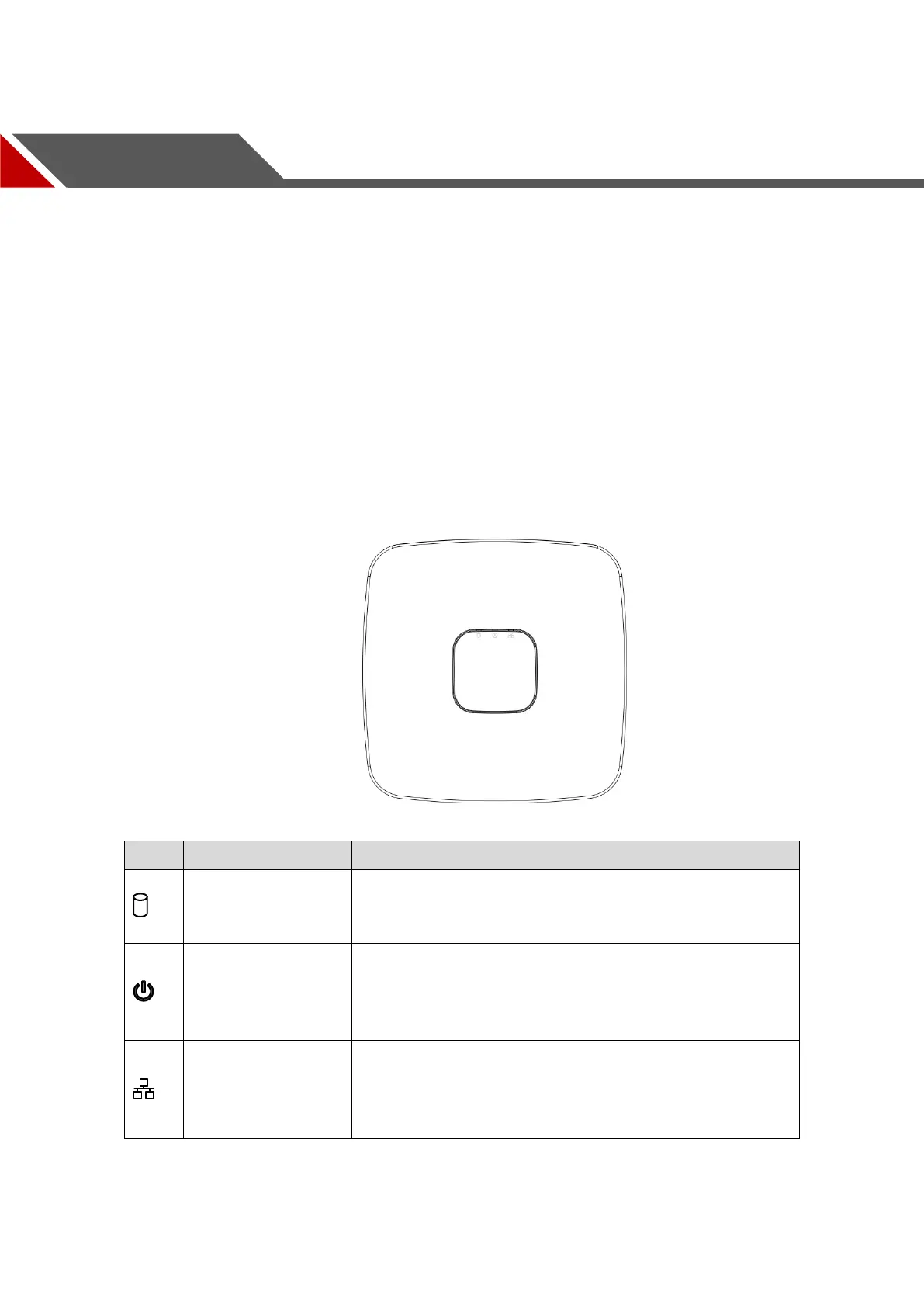

Figure 3-1
Icon
Name
Function
HDD status indicator
The indicator is off when the HDD is running normally.
The indicator glows blue when the HDD is in
malfunction.
Power status
indicator
The indicator is off when the power is connected
abnormally.
The indicator glows blue when the power is connected
normally.
Network status
indicator
The indicator is off when the network connection is
correct.
The indicator glows blue when the network connection
is abnormal.
Table 3-1
