User’s Manual
16
3 The Grand Tour

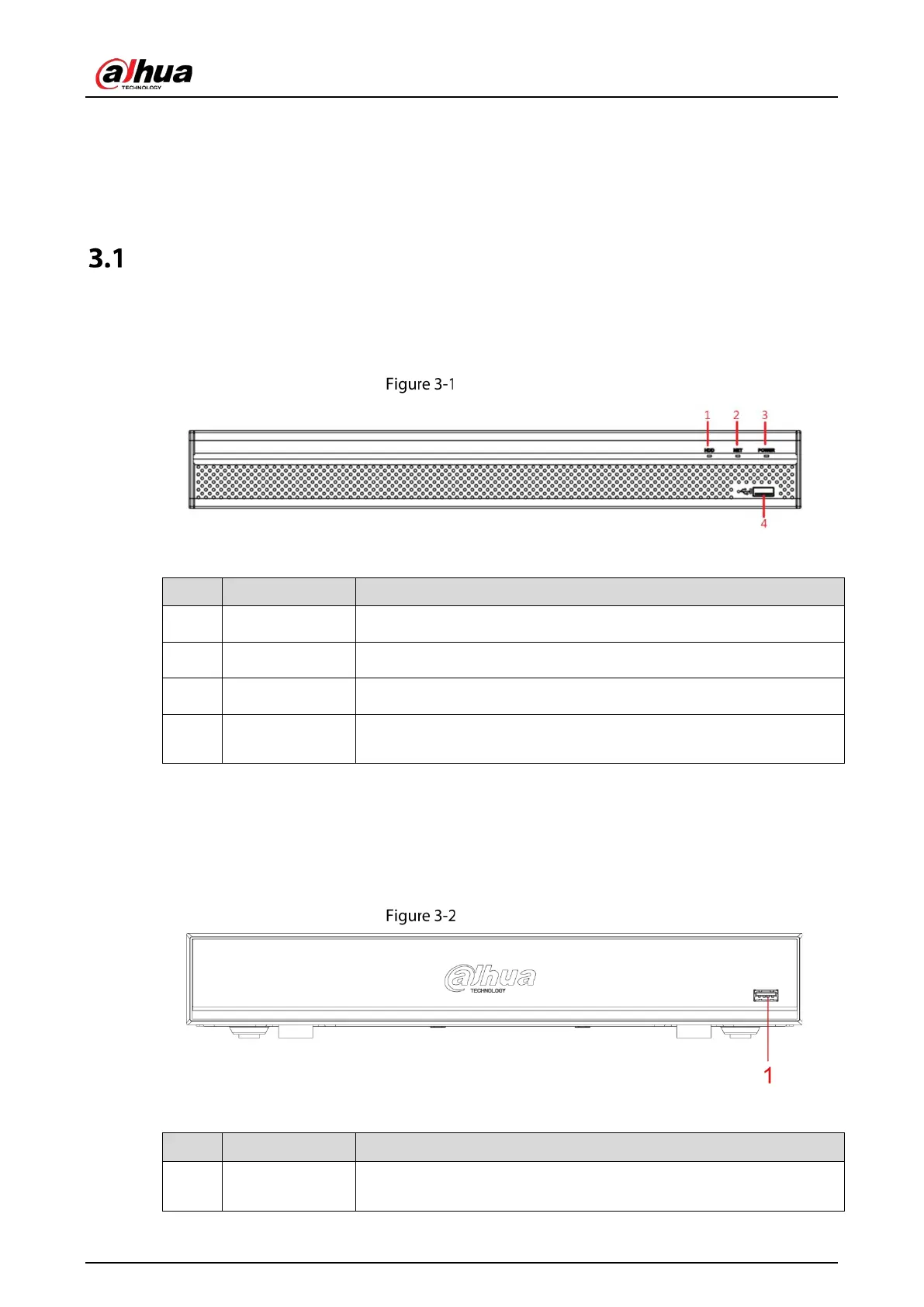

This chapter introduces various components of the Device, remote control and mouse operations.
Front Panel
3.1.1 DH-XVR51xxH-I
Front panel
Table 3-1 Front panel description
No. Port Name Function
1 HDD Glows blue when HDD status is abnormal.
2 NET Glows blue when network status is abnormal.
3 POWER Glows blue when the power is connected properly.
4 USB port
Connects to peripheral devices such as USB storage device, keyboard,
and mouse.
3.1.2 DH-XVR71xxH-4K-I2/DH-XVR71xxH-4K-I3/DH-XVR71xxHE-4K-
I2/DH-XVR71xxHE-4K-I3/DH-XVR71xxHE-4KL-I
Front panel
Table 3-2 Front panel description
No. Port Name Function
1 USB port
Connects to peripheral devices such as USB storage device, keyboard
and mouse.
