Installation 7
Put the locking screw⑥ and the enclosure⑦ back on to the hold the device⑤, and Step 4
then connect the device⑤ to power source and the XVR device, and the live view
screen is displayed.

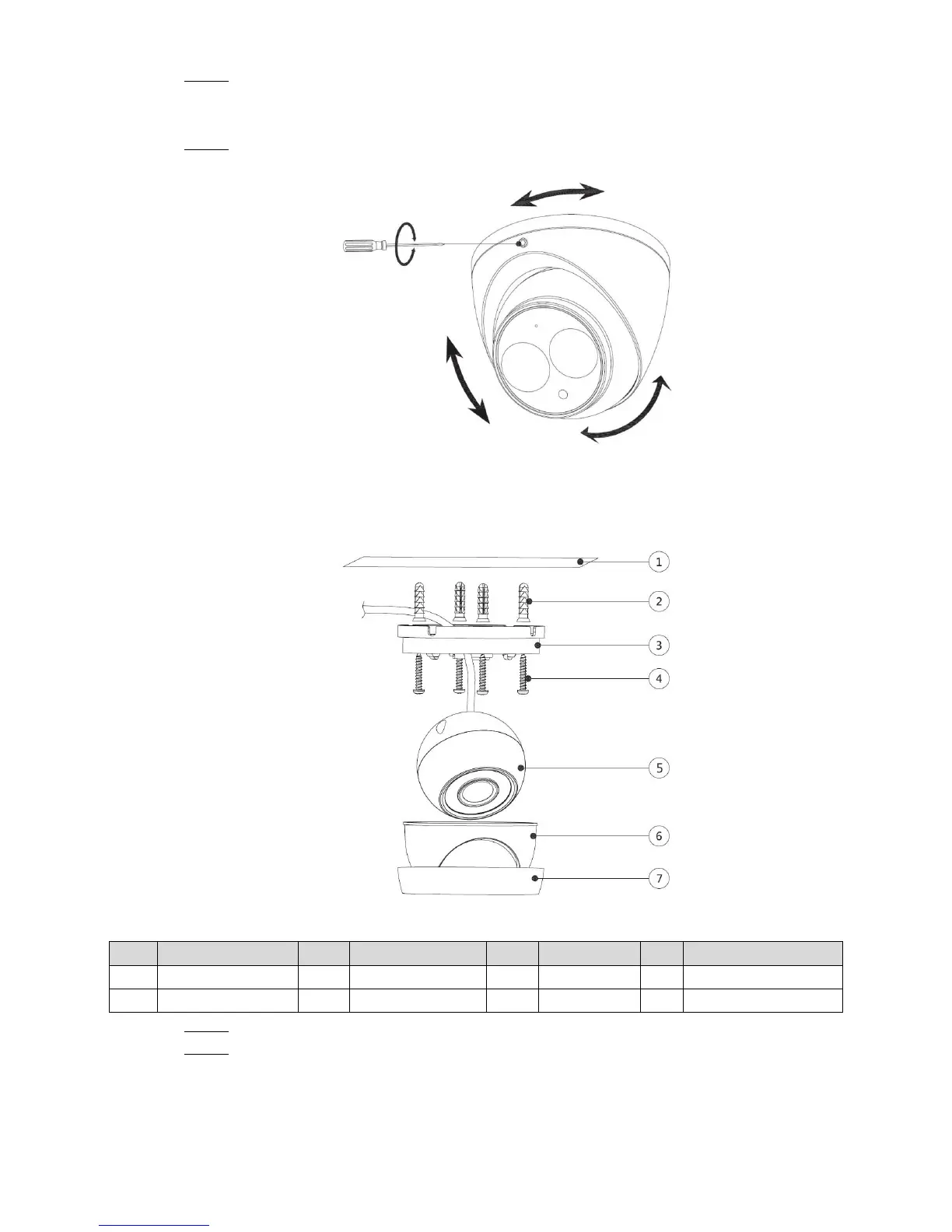

Aim the lens to the ideal angle, and then fasten the locking screw⑥, see Figure 3-4. Step 5
Model B (1) and Model B (2) adjustment Figure 3-4
Installing Model C 3.3
Model C installation Figure 3-5
Table 3-3 Installation item list
Hold the fixing ring⑦ tightly and rotate the pedestal③ counterclockwise to take it off. Step 1
Confirm the position of screw holes (and the cable outlet hole if it needs to go through Step 2
the mounting surface①) and drill them on the mounting surface①, and then insert the
expansion bolts② in the screw holes.
