Dahua Lite series User Manual

Installation 10
Installing Model E 3.5

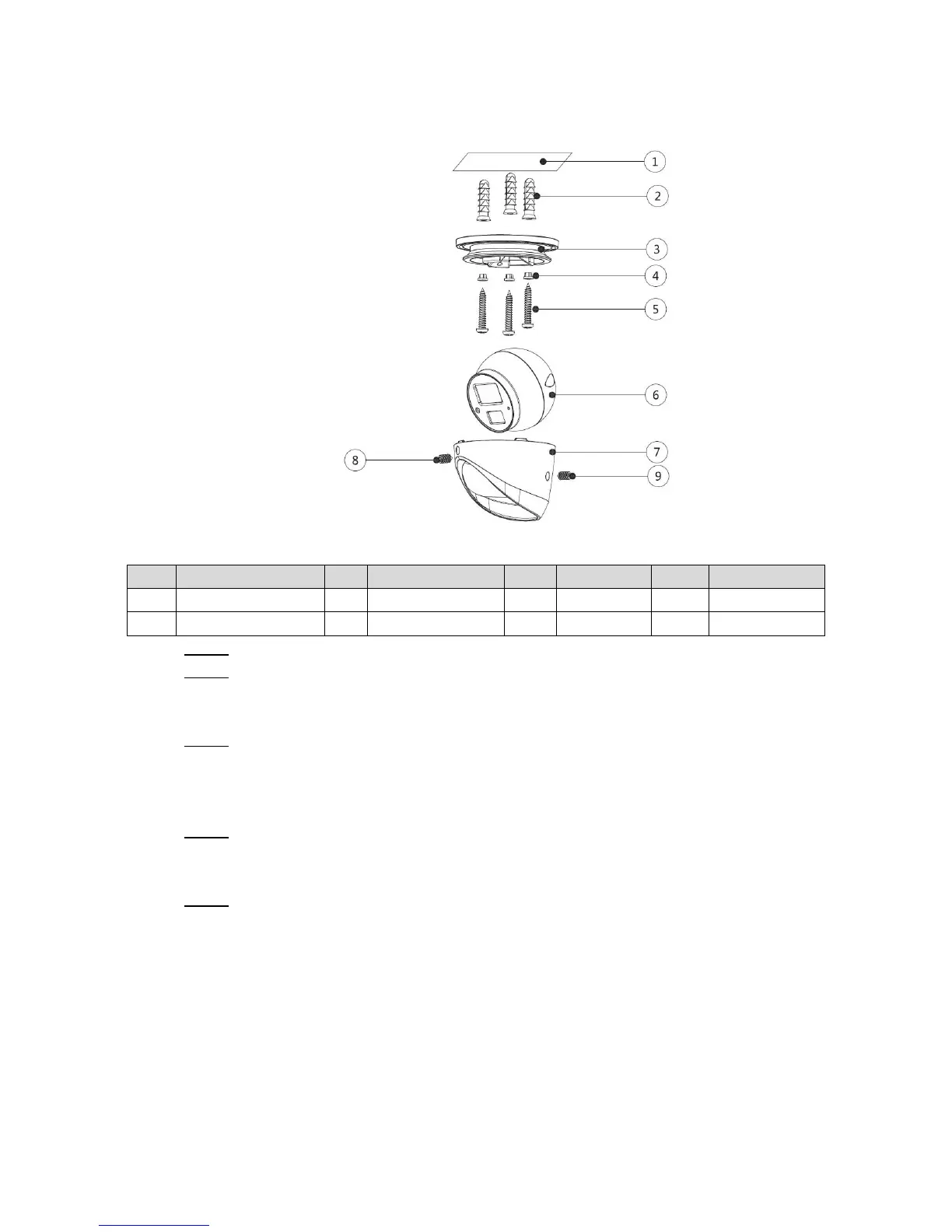

Model E installation Figure 3-9
Table 3-5 Installation item list
No.
Item
No.
Item
No.
Item
No.
Item
①
Mounting surface
②
Expansion bolt
③
Pedestal
④
Screw cover
⑤
Self-tapping screw
⑥
Device
⑦
Enclosure
⑧/⑨
Locking screw
Loosen the locking screws⑧/⑨ with the supplied wrench and take the pedestal③ off. Step 1
Confirm the position of screw holes (and the cable outlet hole if it needs to go through Step 2
the mounting surface①) and drill them on the mounting surface①, and then insert the
expansion bolts② in the screw holes.
Align the screw holes on the pedestal③ to those on the mounting surface①, and then Step 3
pull the cable out through mounting surface or the side cable tray. Put the screw covers
in the screw holds on the pedestal③, and then attach the pedestal③ to the mounting
surface① with the self-tapping screws④.
Put the locking screws⑧/⑨ and the enclosure⑦ back on to the hold the device⑥, Step 4
and then connect the device⑥ to power source and the XVR device, and the live view
screen is displayed.
Aim the lens to the ideal angle, and then fasten the locking screws⑧/⑨, see Figure Step 5
3-10.
