Dahua Lite series User Manual

Design 3

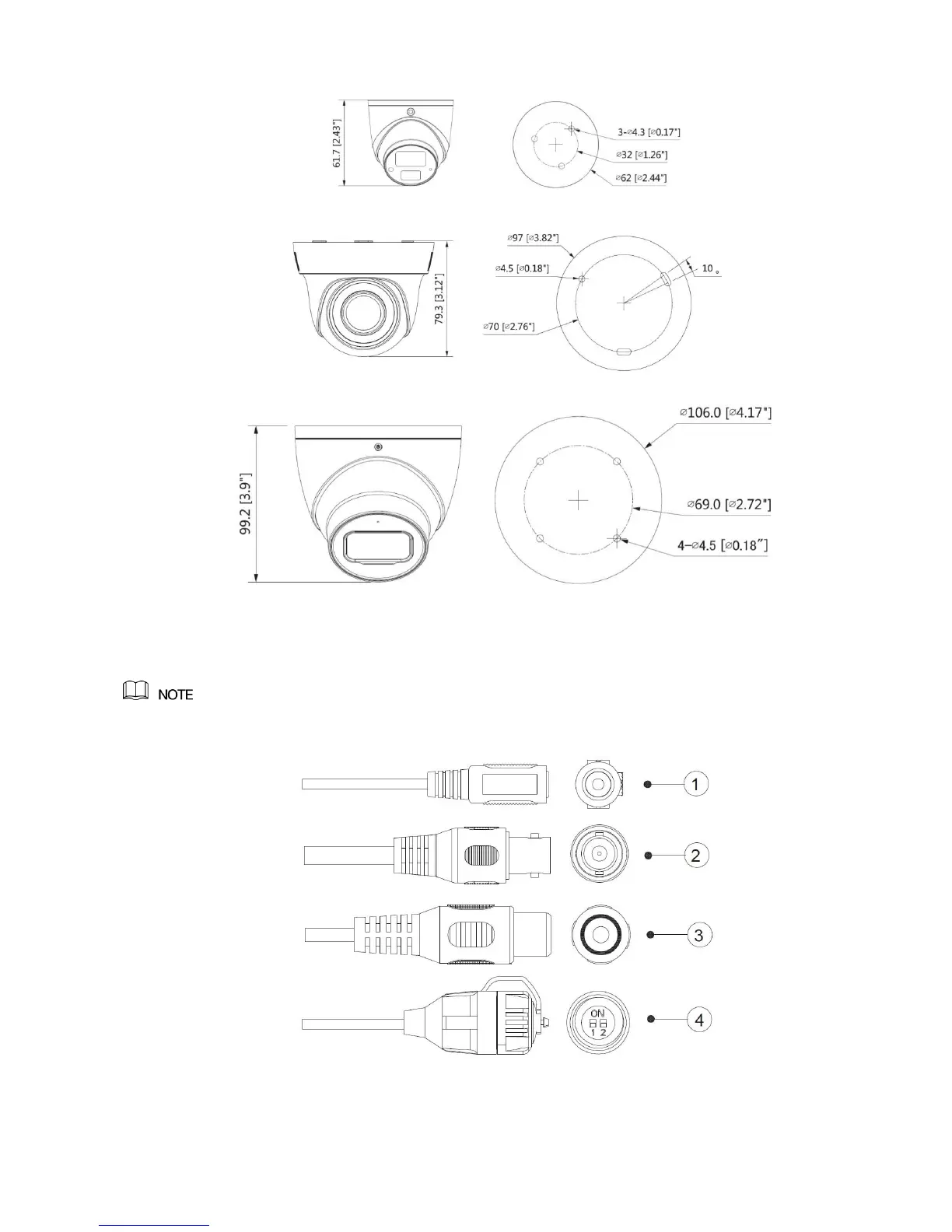

Model E (mm [in.]) Figure 2-5
Model F (mm [in.]) Figure 2-6
Model G (1) and Model G (2) (mm [in.]) Figure 2-7
Cable 2.2
Cable type might vary with different cameras, and the actual product shall prevail.
Cable list Figure 2-8
For more information about cable ports, see Table 2-1; for the operation method of ④ (DIP
switch), see Table 2-2.
