Installation 11

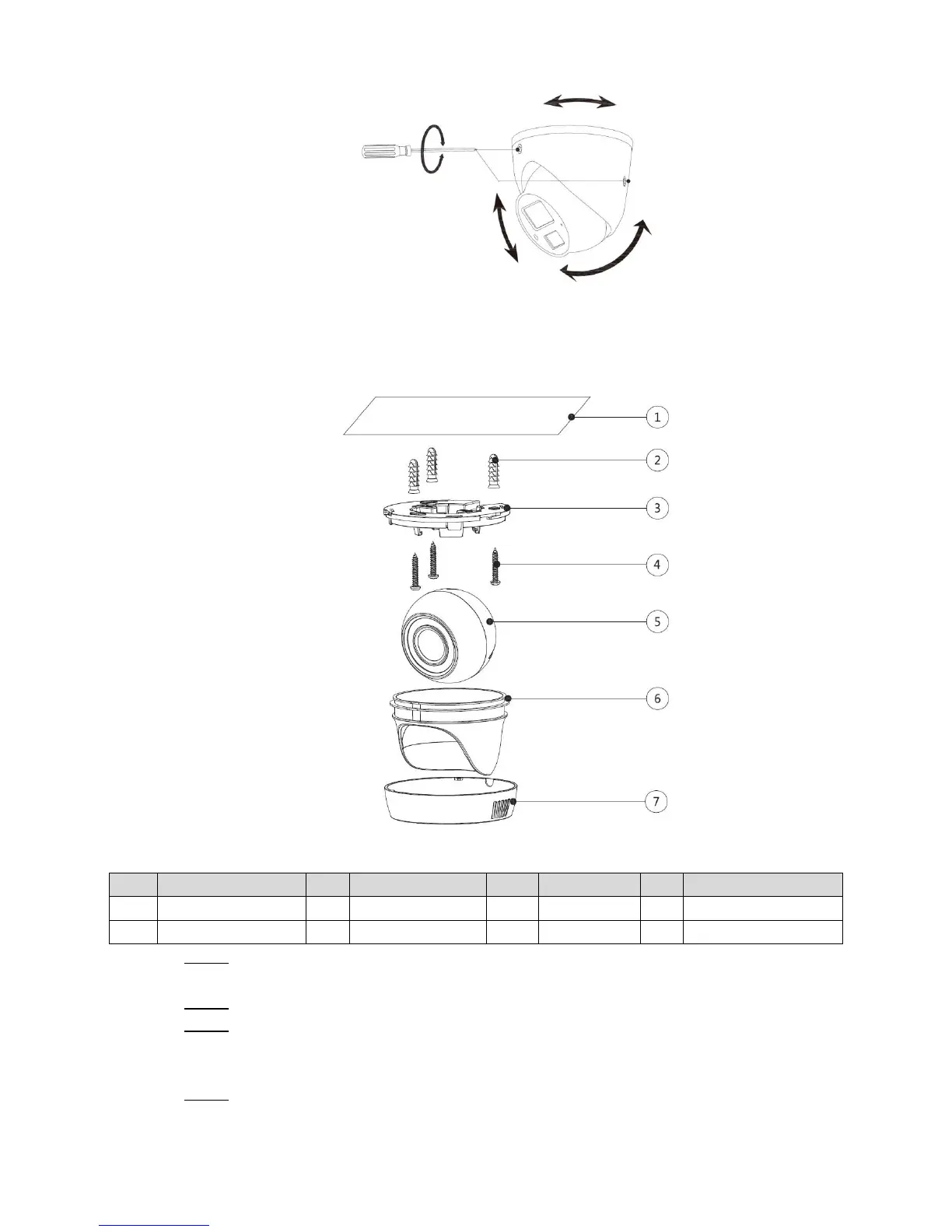

Model E adjustment Figure 3-10
Installing Model F 3.6
Model F installation Figure 3-11
Table 3-6 Installation item list
Hold the fixing ring⑦ tightly and rotate the pedestal③ as the open sign shows to take Step 1
the fixing ring⑦ off.
Slightly squeeze the enclosure⑥ and take the pedestal③ off. Step 2
Confirm the position of screw holes (and the cable outlet hole if it needs to go through Step 3
the mounting surface①) and drill them on the mounting surface①, and then insert the
expansion bolts② in the screw holes.
Align the screw holes on the pedestal③ to those on the mounting surface①, and then Step 4
pull the cable out through mounting surface or the side cable tray. Attach the pedestal
③ to the mounting surface① with the self-tapping screws④.
To Next Page
