Dahua Lite series User Manual

Installation 9
Table 3-4 Installation item list
No.
Item
No.
Item
No.
Item
①
Mounting surface
②
Expansion bolt
③
Pedestal
④
Self-tapping screw
⑤
Device
⑥
Enclosure
Slightly squeeze the enclosure⑥ and take the pedestal③ off. Step 1
Confirm the position of screw holes (and the cable outlet hole if it needs to go through Step 2
the mounting surface①) and drill them on the mounting surface①, and then insert the
expansion bolts② in the screw holes.
Align the screw holes on the pedestal③ to those on the mounting surface①, and then Step 3
pull the cable out through mounting surface or the side cable tray. Attach the pedestal
③ to the mounting surface① with the self-tapping screws④.
Put the enclosure⑥ back on, and then connect the device⑤ to power source and the Step 4
XVR device, and the live view screen is displayed.

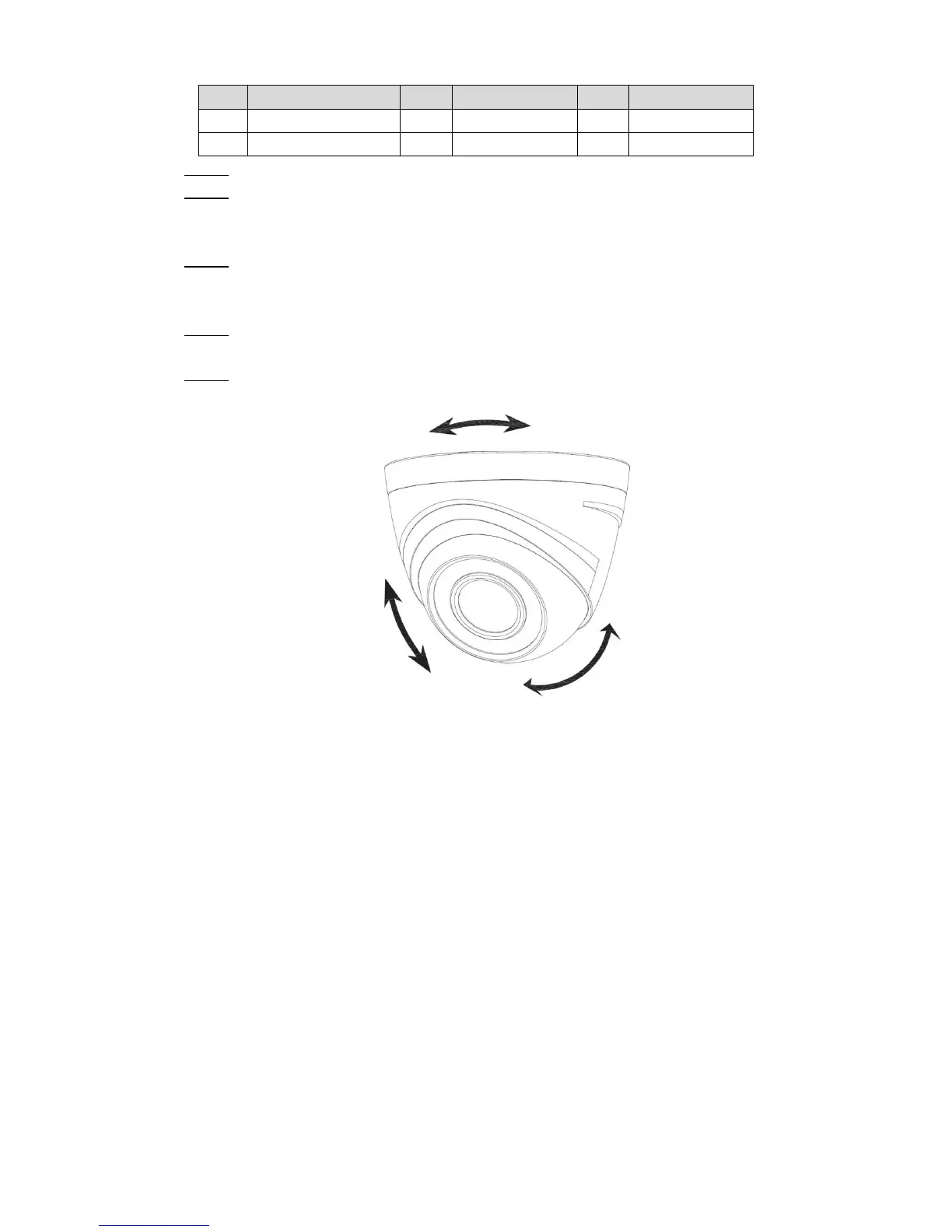

Aim the lens to the ideal angle, see Figure 3-8. Step 5
Model D adjustment Figure 3-8
