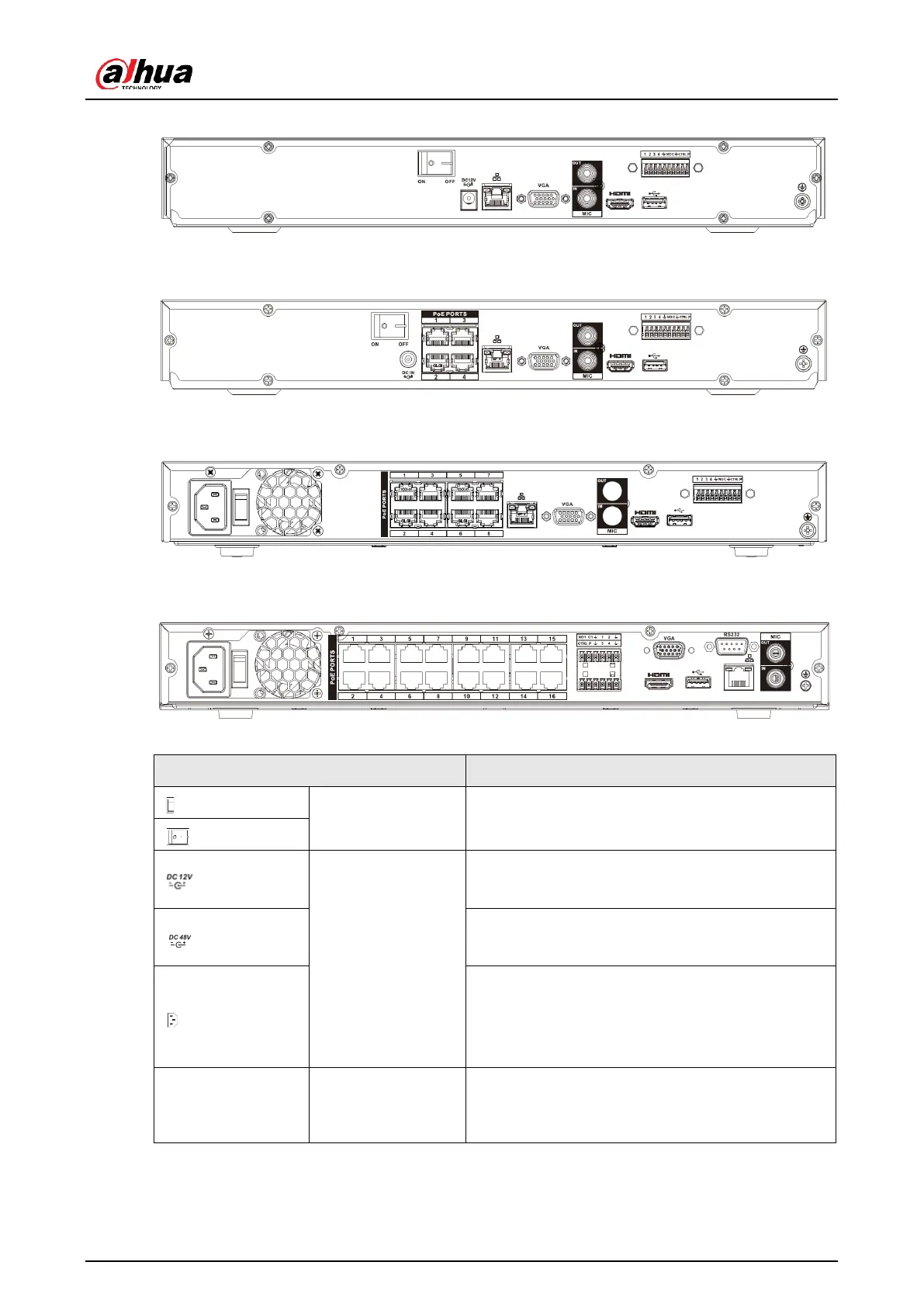

Figure 2-58 Rear panel
The N42C1P series rear panel is shown as below.
Figure 2-59 Rear panel
The N42C2P series rear panel is shown as below.
Figure 2-60 Rear panel
The N42C3P series rear panel is shown as below.
Figure 2-61 Rear panel
Table 2-21 Rear panel description
Input 12 VDC/4 A.
For NVR42-4KS2 series product only.
Switch power port. Input 48 VDC/96 W.
For NVR42-P-4KS2 series product only.
Input 90~264-12 VAC 5 A/52 V 2.5 A-190 W.
For NVR42-8P-4KS2/NVR42-16P-4KS24K 1U
(S2) with 8 PoE ports/ 4K 1U (S2) with 16 PoE
ports series product only.
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices
such as microphone, pickup.
