Dahua NVR100 series User Manual

90
Port Name
Connection
Function
GND
Ground end
/
Power input port
Power socket.
 For NVR41 series, input DC 12V/2A.
 For NVR41H-P series, input DC 48V/1.5A.
 For NVR11H-P series, input DC 48V/1.25A.
 For NVR41H-8P series, input DC 48V/2A.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such
as microphone, pickup.
MIC OUT
Audio output
port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
PoE PORT
PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.
2.2.6 NVR11HS Series

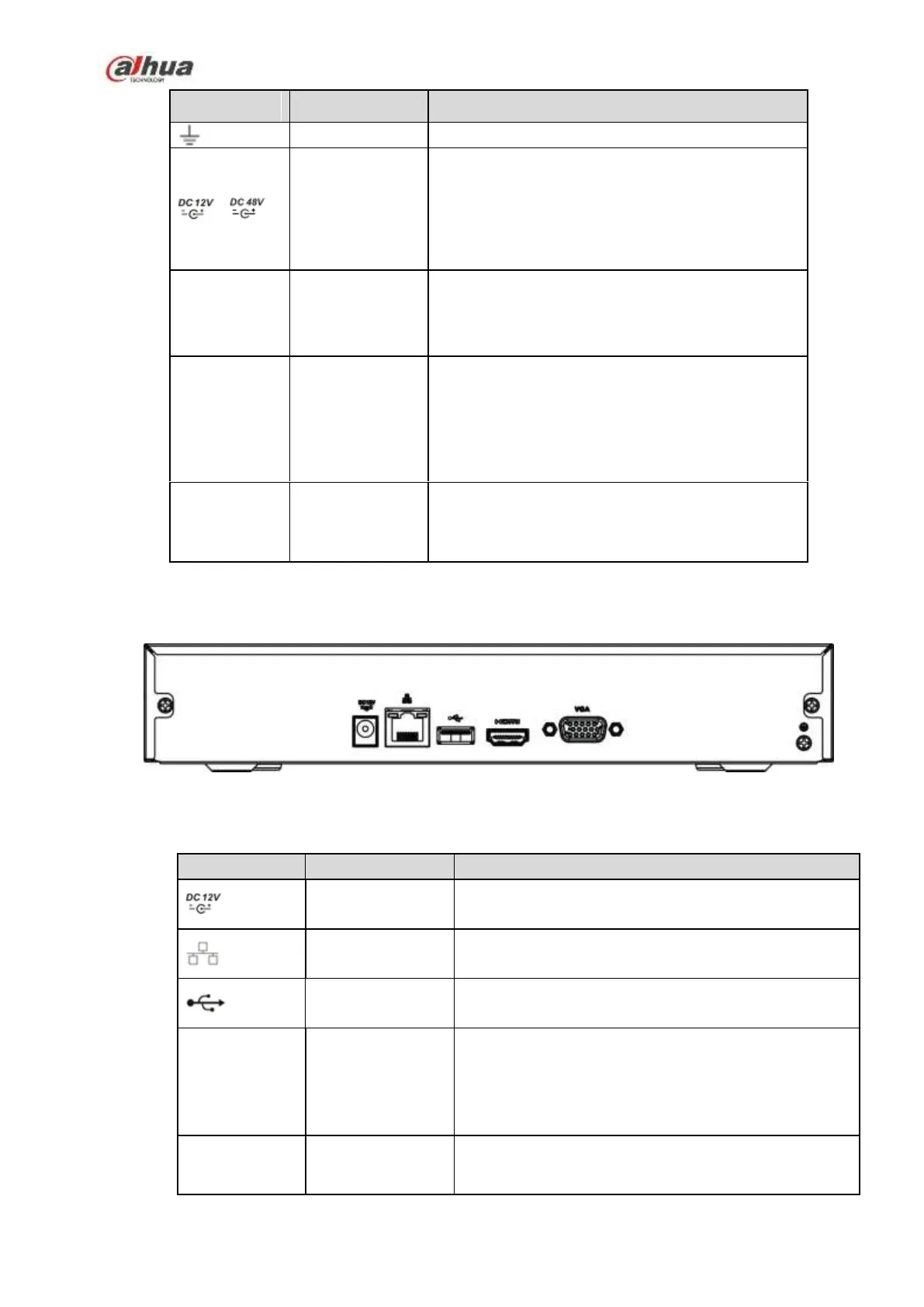

The series rear panel is shown as below. See Figure 2-31.
Figure 2-31
Please refer to the following sheet for detailed information.
Icon
Name
Function
Power input
socket.
Power socket. Input DC12V/1.5A.
Network port
10M/100Mbps self-adaptive Ethernet port. Connect to
the network cable.
USB2.0 port
USB2.0 port. Connect to mouse, USB storage device,
and etc.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
VGA
VGA video output
port
VGA video output port. Output analog video signal. It
can connect to the monitor to view analog video.
