Dahua NVR100 series User Manual

123
Port Name
Function
USB2.0 port
USB2.0 port. Connect to mouse, USB storage
device, USB burner and etc.
RS-232
RS232 debug
COM.
It is for general COM debug to configure IP address
or transfer transparent COM data.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the
display device. HDMI version is 1.3. The two HDMI
ports to output video from different video sources.
VGA
VGA video output
port
VGA video output port. Output analog video signal.
It can connect to the monitor to view analog video.
2.2.25 NVR42V-8P Series

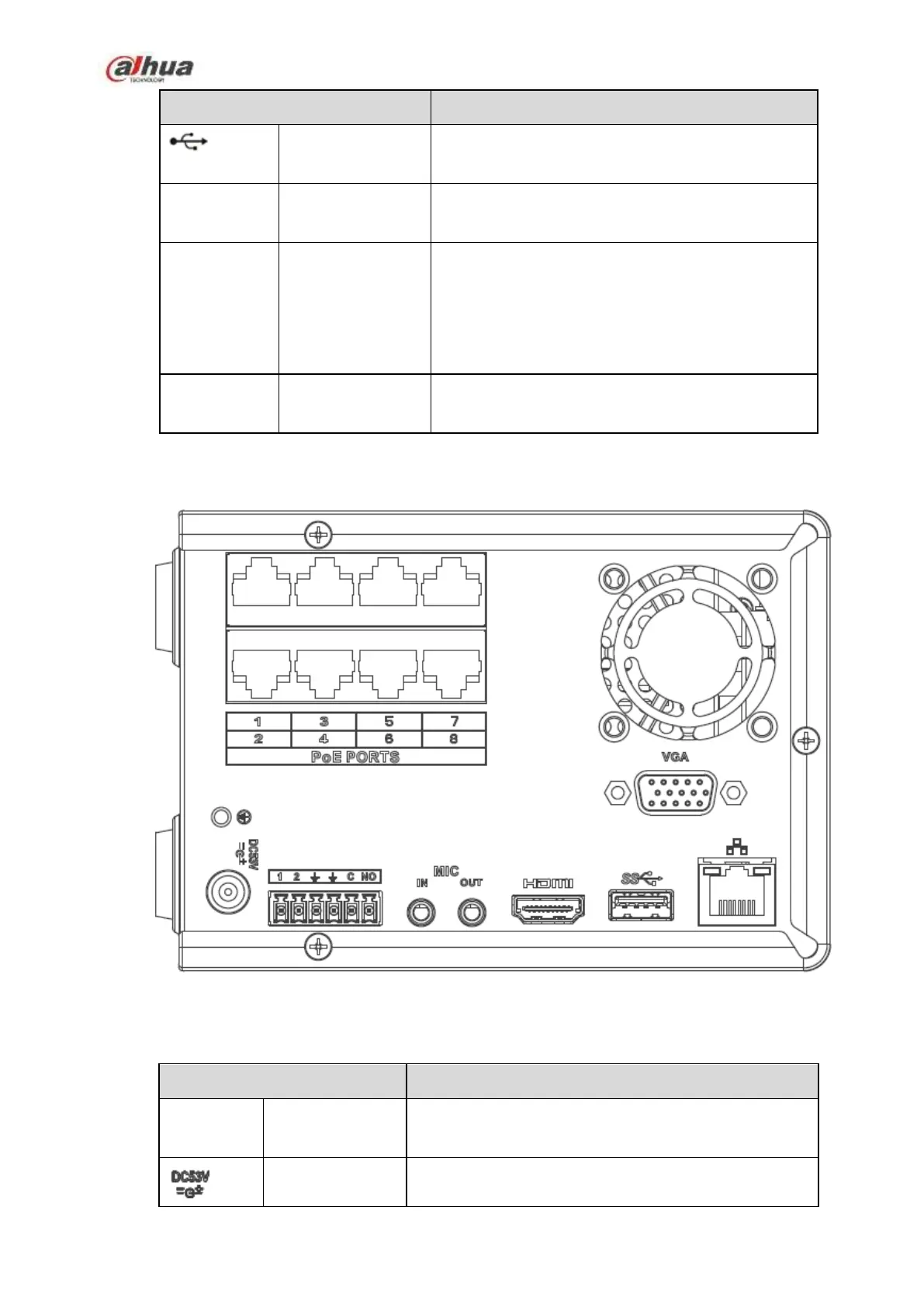

The interface is shown as in Figure 2-67.
Figure 2-67
Please refer to the following sheet for detailed information.
Name
Function
Power
switch
/
Power on/off button.
Power input port
Input DC 53V--2.3A
