Port Name
Connection
Function
MIC OUT
Audio output
port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
PoE PORT
PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.
2.2.27 NVR41HS-4KS2/41HS-P-4KS2/41HS-8P-4KS2

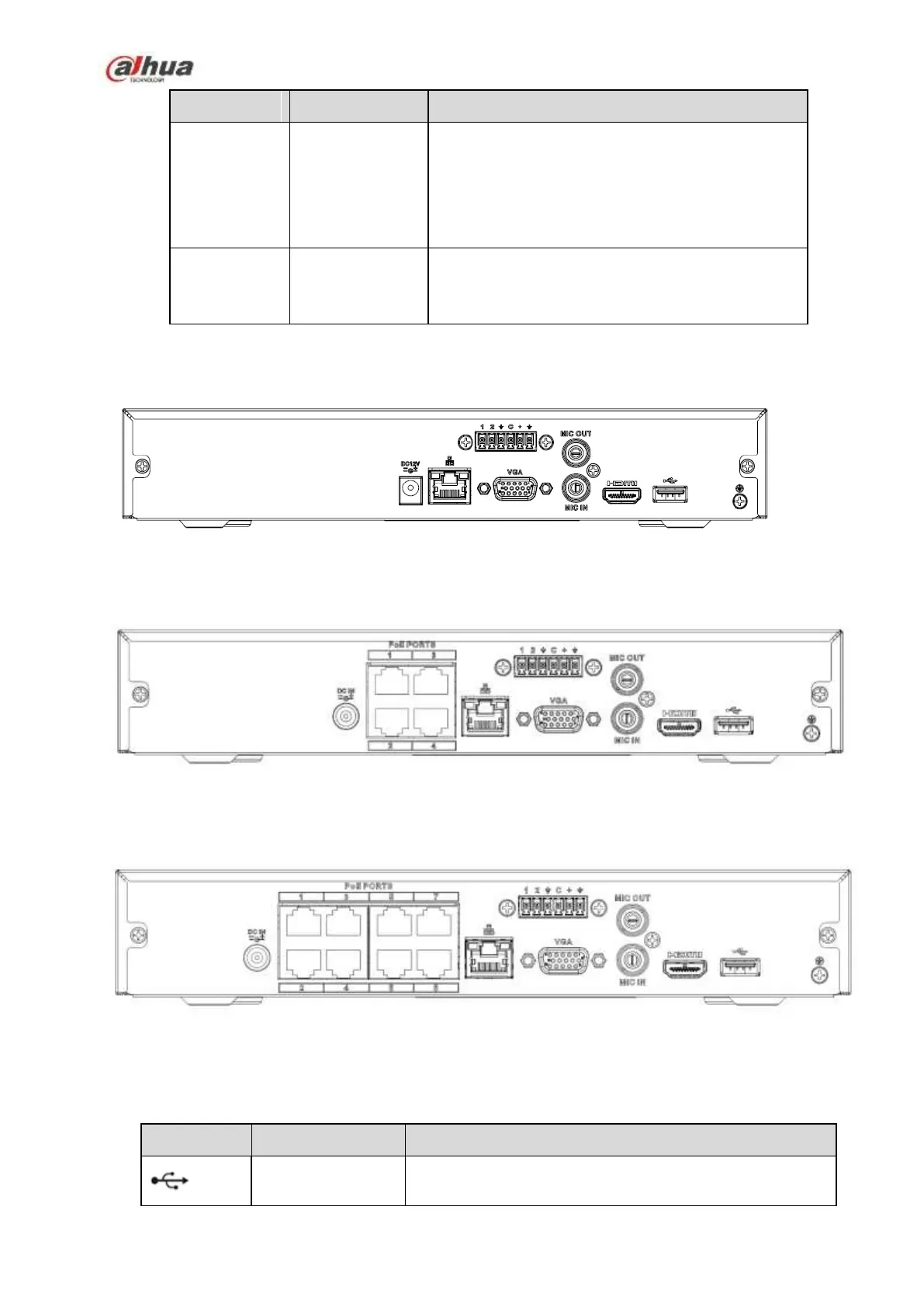

The NVR41HS-4KS2 series rear panel is shown as below. See Figure 2-71.
Figure 2-71
The NVR41HS-P-4KS2 series rear panel is shown as below. See Figure 2-72.
Figure 2-72
The NVR41HS-8P-4KS2 series rear panel is shown as below. See Figure 2-73
Figure 2-73
Please refer to the following sheet for detailed information.
Port Name
Connection
Function
USB port
USB port. Connect to mouse, USB storage device, USB
burner and etc.
