Dahua NVR100 series - Nvr11;11-P;41;41-P;41-8 P;41-W;21-S2;21-P-S2;21-8 P-S2;;41-4 Ks2;41-P-4 Ks2;4; 1-8 P-4 KS2 Series

151
Figure 3-1
3.6.2 NVR11/11-P/41/41-P/41-8P/41-W/21-S2/21-P-S2/21-8P-S2//41-4KS2/41-P-4KS2/4
1-8P-4KS2 Series

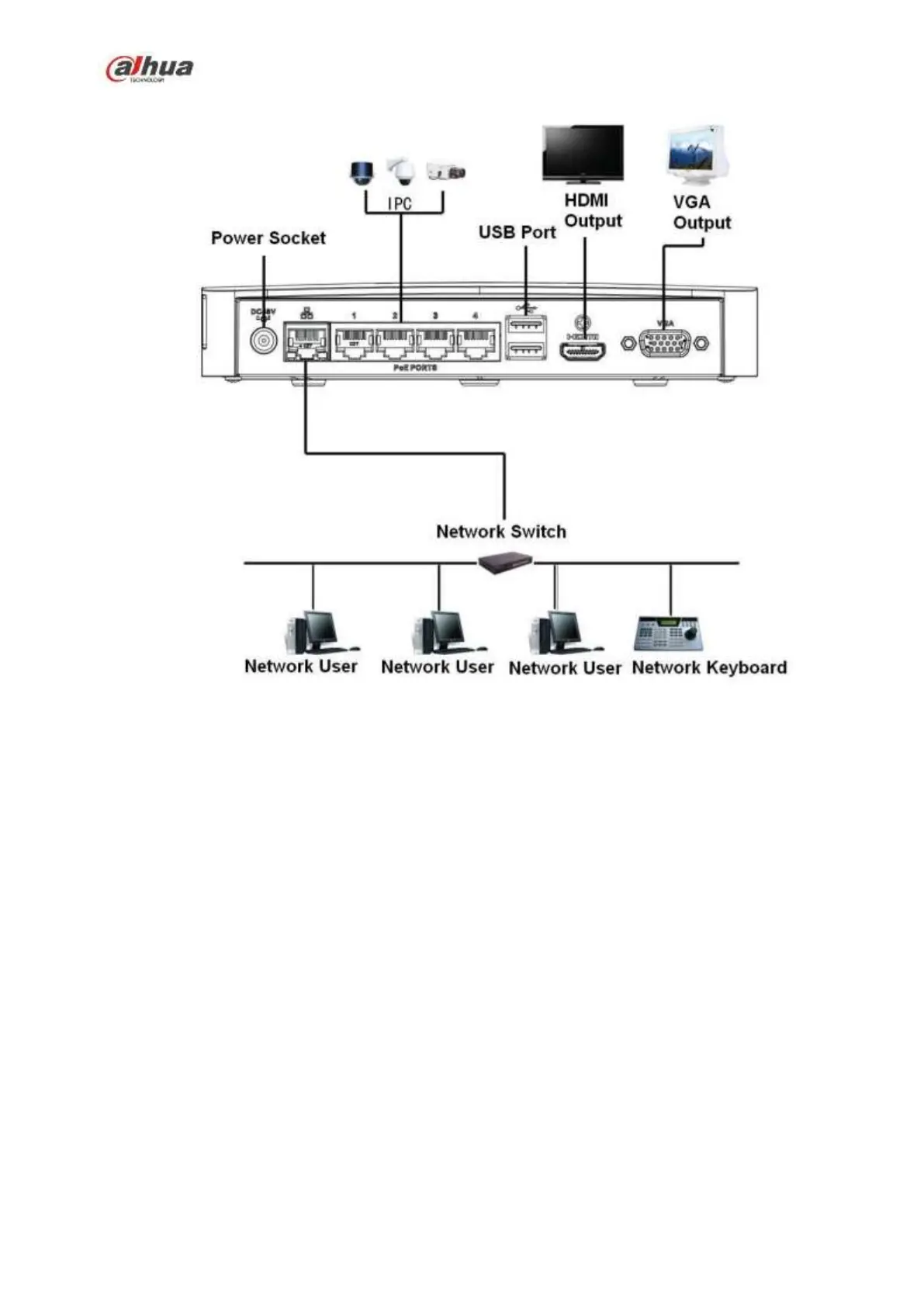

Please refer to Figure 3-2 for connection sample.
Here we take NVR41 as an example.
