Dahua NVR100 series User Manual

121
Port Name
Function
eSATA
eSATA port
External SATA port. It can connect to the device of
the SATA port. Please jump the HDD when there is
peripheral connected HDD.
USB2.0 port
USB2.0 port. Connect to mouse, USB storage
device, USB burner and etc.
RS-232
RS232 debug
COM.
It is for general COM debug to configure IP address
or transfer transparent COM data.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the
display device. HDMI version is 1.3
VGA
VGA video output
port
VGA video output port. Output analog video signal.
It can connect to the monitor to view analog video.

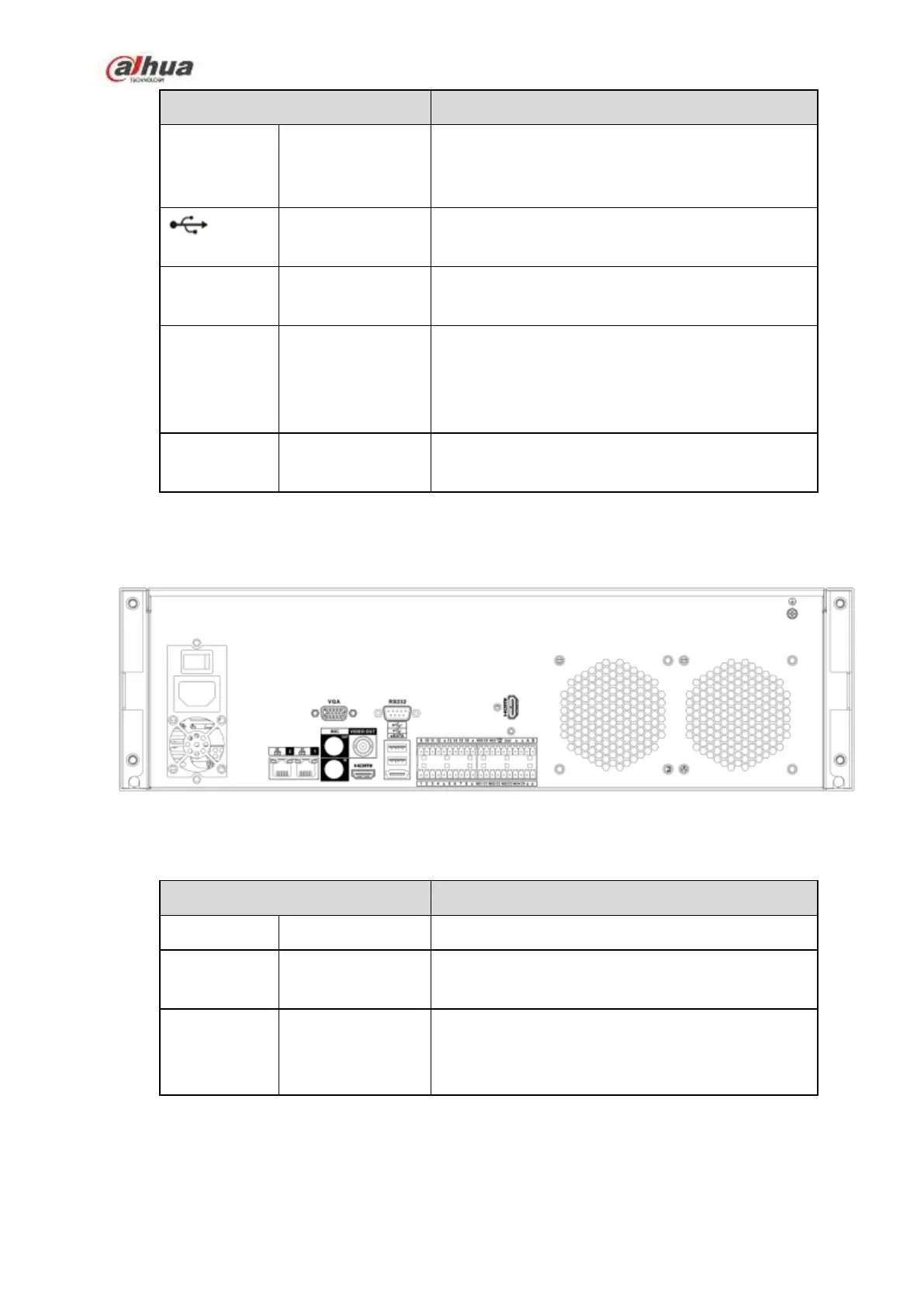

2.2.24 NVR70-R Series
The NVR70-R series rear panel is shown as below. See Figure 2-66.
Figure 2-66
Please refer to the following sheet for detailed information.
Port Name
Function
Power switch
/
Power on-off button
Power input
port
/
Input AC 100~240V.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such
as microphone, pickup.
